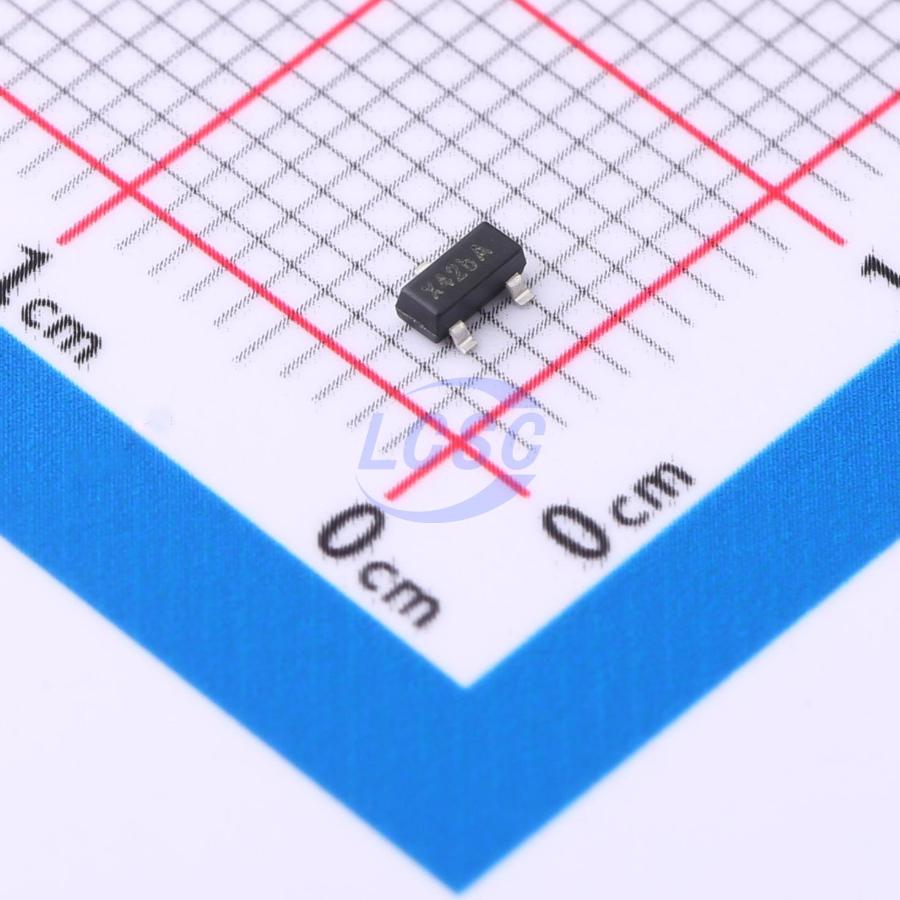

APX809-40SAG-7
200ms Active Low 1.1V~5.5V 1 SOT-23-3 Supervisors RoHS
3-PIN MICROPROCESSOR RESET CIRCUITS
- Manufacturer
- DIODES
- Manufacturer part #
- APX809-40SAG-7
- Store part #
- C151033
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,120 in stock
#C151033
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.87 | ₹114.35 |
| 50+ | ₹20.14 | ₹1,007.00 |
| 150+ | ₹18.96 | ₹2,844.00 |
| 500+ | ₹17.49 | ₹8,745.00 |
| 3,000+ | ₹16.84 | ₹50,520.00 |
| 6,000+ | ₹16.44 | ₹98,640.00 |
5 × ₹22.87
₹114.35
excl. GST
₹134.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
APX809-40SAG-7
₹114.35 for 5 + GST
Specifications
- Reset Timeout
- 200ms
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃@(TA)
- Reset Active Level
- Active Low
- standby current
- 30uA
- Voltage - Supply
- 1.1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
The APX809/810 are used for microprocessor (μP) supervisory circuits to monitor the power supplies in μP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with 5V, 3.3V, 3.0V powered circuits. These circuits perform a single function: they assert a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for at least 240ms after VCC has risen above the reset threshold. Reset thresholds suitable for operation with a variety of supply voltages are available. The APX809/810 have push pull outputs. The APX809 have an active low RESET output, while the APX810 has an active high RESET output. The reset comparator is designed to ignore fast transients on VCC, and the outputs are guaranteed to be in the correct logic state for VCC down to 1V. Low supply current makes the APX809/810 ideal for use in portable equipment. The APX809/810 is available in a 3-pin SOT23 package.
Applications
- Computers
- Controllers
- Intelligent Instruments
- Critical μP and μc Power Monitoring
- Portable/Battery Powered Equipment
Key features
- Precision Monitoring of 2.5V, 3V, 3.3V, and 5V Power-Supply Voltages
- Fully Specified Over Temperature
- Available in Three Output Configurations Push-Pull RESET Active Low (APX809)
- Push-Pull RESET Active High (APX810)
- 200ms Typ Power-On Reset Pulse Width
- 30μA Supply Current (Typ.)
- Guaranteed Reset Valid to VCC = 1V No External Components
- SOT23: Available in “Green” Molding Compound (No Br, Sb)
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPCAT809JTBI-GT3#C52098286TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,465 | ₹10.69 · 2,465 in stock | View |
 | IMP809JEUR-TP#C52817109TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,210 | ₹7.79 · 2,210 in stock | View |
 | MAX809JTRG-TP#C52817132TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,950 | ₹10.48 · 1,950 in stock | View |
 | TPADM809JARTZ#C52817182TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,995 | ₹21.42 · 2,995 in stock | View |
 | TPTCM809JENB713#C52817308TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,960 | ₹7.79 · 2,960 in stock | View |
