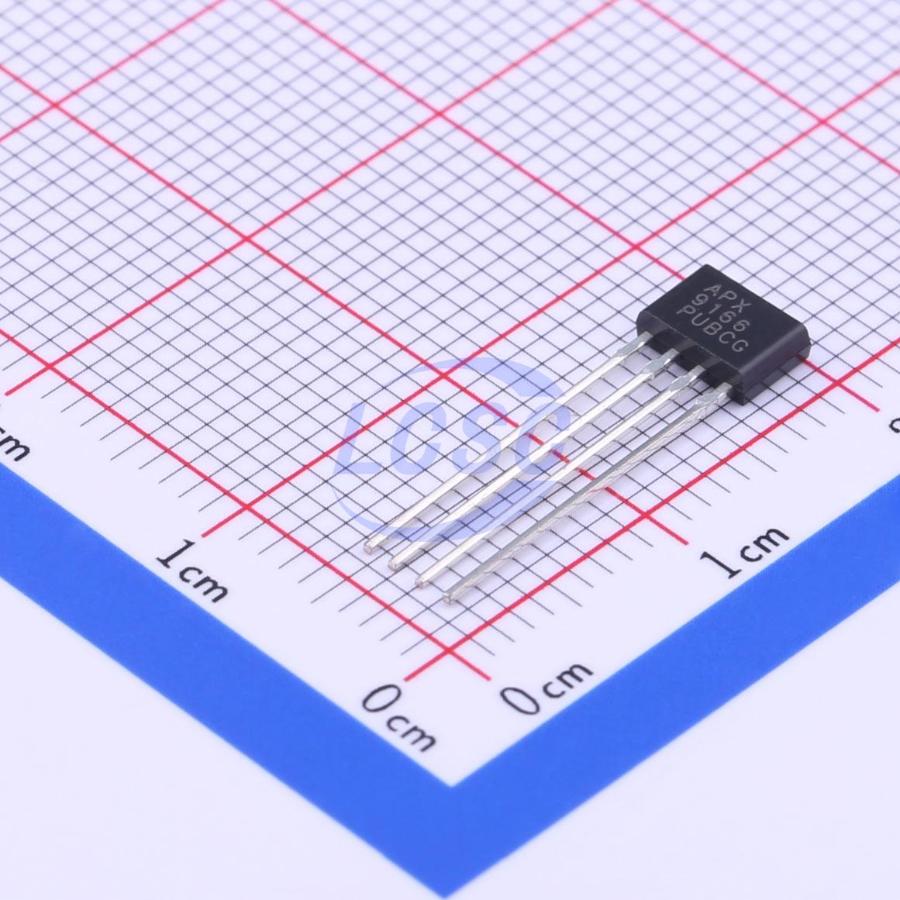

ANPECDatasheet (PDF)
APX9166EI-PBG
2.2V~17V TO-92-M4 Motor Drivers, Controllers
TO-92-M4RoHSActive
Single-Phase Full-Wave Motor Driver with Built-in Hall Sensor
- Manufacturer
- ANPEC
- Manufacturer part #
- APX9166EI-PBG
- Store part #
- C393730
- Package / case
- TO-92-M4
- Category
- Motor Drivers, Controllers
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
997 in stock
#C393730
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.24 | ₹58.24 |
| 10+ | ₹46.08 | ₹460.80 |
| 30+ | ₹41.08 | ₹1,232.40 |
| 100+ | ₹34.56 | ₹3,456.00 |
| 500+ | ₹27.82 | ₹13,910.00 |
| 1,000+ | ₹26.08 | ₹26,080.00 |
| 2,000+ | ₹25.86 | ₹51,720.00 |
| 4,000+ | ₹25.43 | ₹1,01,720.00 |
1 × ₹58.24
₹58.24
excl. GST
₹68.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
APX9166EI-PBG
₹58.24 for 1 + GST
Specifications
- Drive Type
- Single Phase
- Features
- Motor stall protection
- Technology
- Yes
- Voltage - Supply
- 2.2V~17V
- Operating Temperature
- -40℃~+105℃
- Supply Current (Iq)
- 5.5mA
- Number of Half Bridges
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.171 g
Overview
The APX9166 is an integrated Hall Effect Sensor IC designed for electric commutation of single-phase DC brushless motor applications. The device is built-in lock protection. When fan is locked, the device will enter the lock protection mode. It is also with thermal shutdown function. The APX9166 is available in a low cost TO92-M4 package.
Applications
- Brushless DC Fans
- Brushless DC Motors
Key features
- On-Chip Hall Sensor
- Silent Driver
- High Sensitivity Hall Effect Sensor IC: ±15G(Type.)
- Built-in Lock Protection and Auto Restart Function
- Built-In Thermal Protection Circuit
- 4 Pin TO92-M4 Package Lead Free and Green Devices Available (RoHS Compliant)
