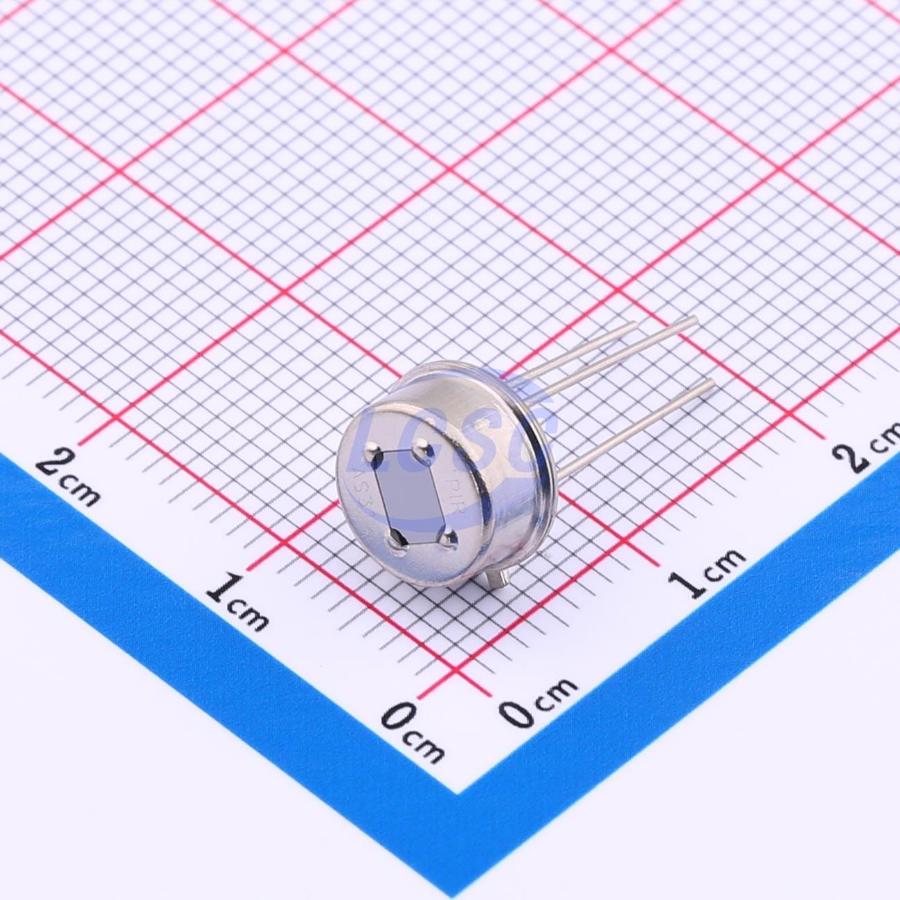

AS312
Through Hole Sensor and Detector Interfaces
- Manufacturer
- Senba Sensing Tech
- Manufacturer part #
- AS312
- Store part #
- C90465
- Package / case
- Through Hole
- Category
- Sensor and Detector Interfaces
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,232 in stock
#C90465
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.23 | ₹129.23 |
| 10+ | ₹103.00 | ₹1,030.00 |
| 30+ | ₹89.77 | ₹2,693.10 |
| 100+ | ₹79.37 | ₹7,937.00 |
| 500+ | ₹71.56 | ₹35,780.00 |
| 1,000+ | ₹67.43 | ₹67,430.00 |
1 × ₹129.23
₹129.23
excl. GST
₹152.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per box
AS312
₹129.23 for 1 + GST
Specifications
- Window Size
- 3x4mm
- Window Shape
- Rectangle
- Operating Temperature
- -30℃~+70℃
- Voltage - Supply
- 2.7V~3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 100 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.22 g
Overview
The product is a type of intelligent PiR sensor which integrates digital control circuit and body sensitive element in one electromagnetic shielding. The signal inputs from sensitive element to digital circuit via a high impedance differential. The digital circuit converts the input signal to 15bit ADC digital value. When the PIR signal above the selected threshold, there will be a REL output. The parameter of time are set by resistance to control the time delay of application continuous work. All signals are processed digitally.
Applications
- Toys
- Digital photo frame
- TV
- Refrigerator
- Air-condition
- Alarms
- PIR motion detection
- Intruder detection
- IOT sensor
- Sense light
- Computer monitor
- Security system
- Car security system
- Corridor and stair lights
- Toys
- Digital photo frame
- TV
- Refrigerator
- Air conditioner
- USB alarm
- PIR motion and intruder detection
- Occupancy detection
- IoT sensor
- Sense light
- Network camera
- LAN control
- Personal alarm
- Car security system
- Indoor lighting
- Auto on/off for corridor and stair lights
Key features
- Digital Signal Processing
- Differential inputs
- Second order Butterworth low-pass filter, removing other higher frequency interference
- High supply rejection, High immunity to RFI
- Output time adjustable, Schmitt REL output for sensitivity
- Low supply voltage, Low current consumption
- Digital Signal Processing
- Dual differential ultra-high impedance sensor inputs
- Built-in second order Butterworth band-pass filter for infrared sensors, blocking other frequency interference
- High power supply rejection ratio, High RFI immunity
- Adjustable timing, Schmitt REL output for sensitivity
- Low voltage, Low power consumption, Instant operation after power-up
