DIODESDatasheet (PDF)

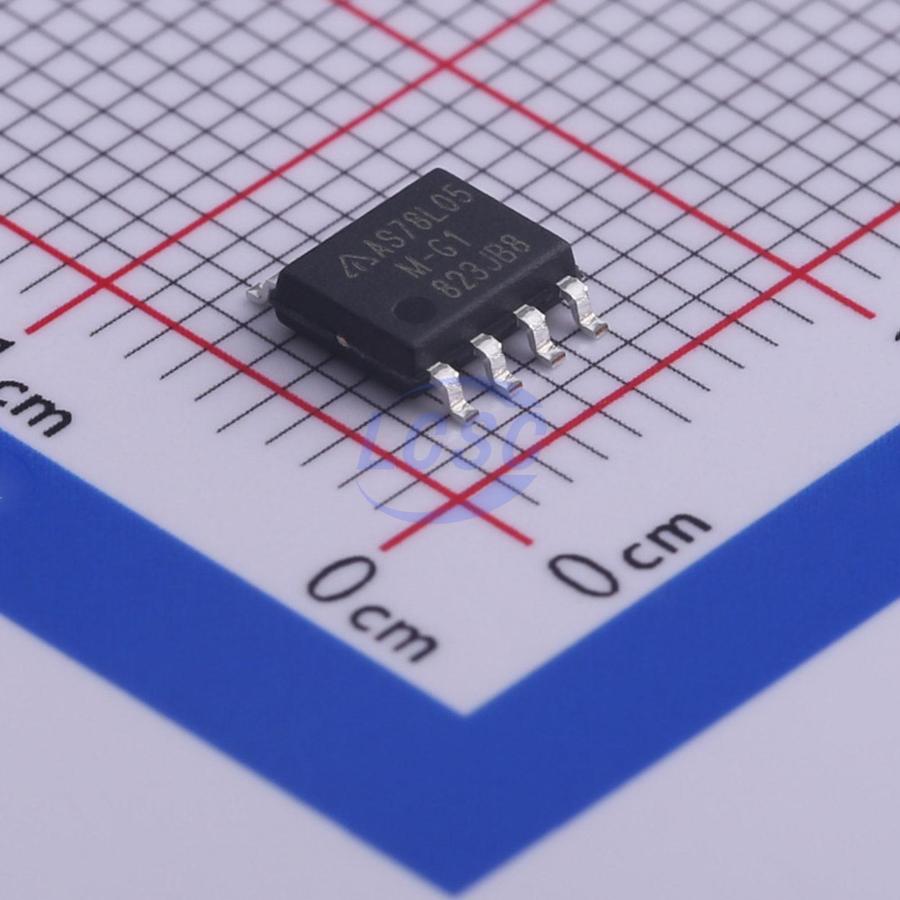

AS78L05MTR-G1
5V Positive Fixed SOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOP-8ROHS3 CompliantActive
100mA Positive Voltage Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AS78L05MTR-G1
- Store part #
- C460418
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,870 in stock
#C460418
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.08 | ₹100.40 |
| 50+ | ₹16.00 | ₹800.00 |
| 150+ | ₹13.96 | ₹2,094.00 |
| 500+ | ₹12.42 | ₹6,210.00 |
| 2,500+ | ₹11.19 | ₹27,975.00 |
| 4,000+ | ₹10.58 | ₹42,320.00 |
5 × ₹20.08
₹100.40
excl. GST
₹118.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AS78L05MTR-G1
₹100.40 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5.5mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.102 g
Overview
The As78LXX series are three terminal positive regulators designed for a wide variety of applications including local, on- card regulation. This series of regulators are complete with internal current limiting, thermal shutdown protection, and safe- area compensation which make them virtually immune from output overload. If adequate heat sinking are provided, these regulators can deliver output currents up to 100mA. The As78LXX series are available in TO- 92 (bulk or ammo packing), SOT- 89 and SOIC- 8 packages.
Applications
- Consumer Electronics
- Microprocessor Power Supply
- Mother Board
Key features
- Output Current up to 100mA
- Fixed Output Voltages of 5V, 12V and 15V
- Output Voltage Accuracy of ± 5% over the Full Temperature Range
- Internal Short Circuit Current Limiting
- Internal Thermal Overload Protection
- No External Components
- Output Transistor Safe- area Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM78L05AIMX/NOPB#C94836TI · SOIC-8 | TI | SOIC-8 | 1,047 | ₹88.34 · 1,047 in stock | View |
 | LM78L05ACMX/NOPB#C373350TI · SOIC-8 | TI | SOIC-8 | 38,105 | ₹62.23 · 38,105 in stock | View |
 | NCV78L05ABDR2G#C719824onsemi · SOIC-8 | onsemi | SOIC-8 | 2,495 | ₹29.62 · 2,495 in stock | View |
 | MC78L05ABDR2G#C7371onsemi · SOIC-8 | onsemi | SOIC-8 | 15,660 | ₹18.07 · 15,660 in stock | View |
 | L78L05ABD13TR#C81154ST · SOIC-8 | ST | SOIC-8 | 2,14,100 | ₹12.30 · 2,14,100 in stock | View |
