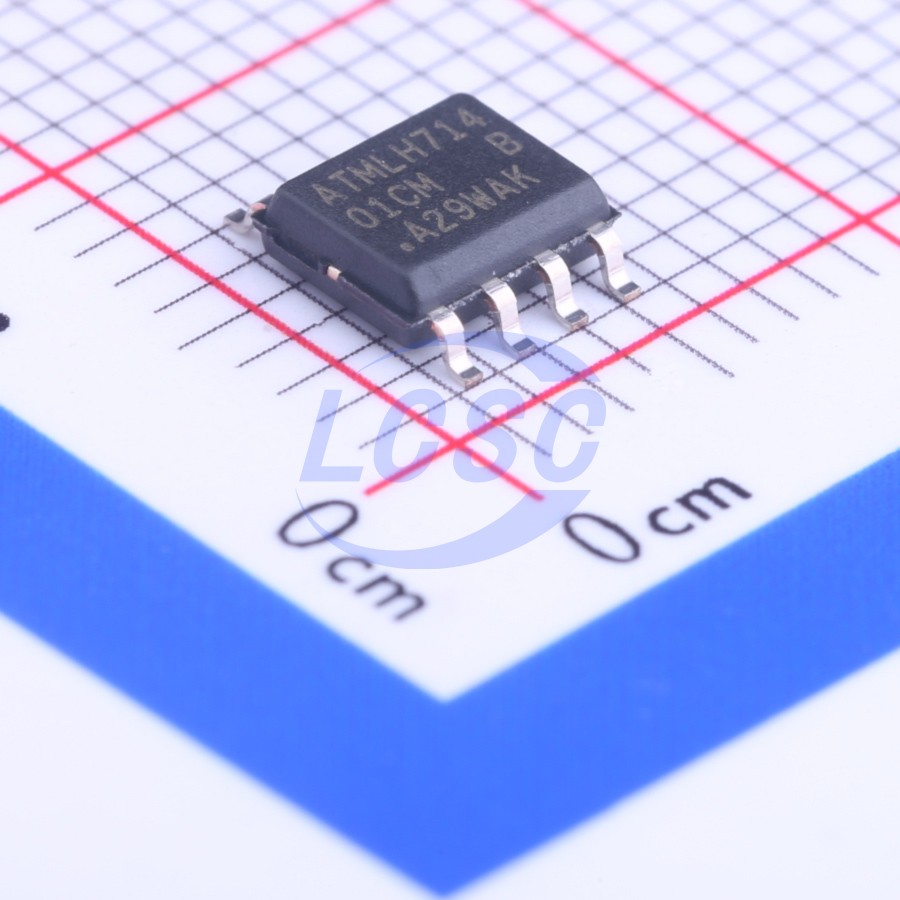

AT24C01C-SSHM-T
1Kbit 1MHz I2C SOIC-8 Memory RoHS
I²C-Compatible (2-wire) Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,488 in stock
#C36157
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.16 | ₹56.16 |
| 10+ | ₹44.89 | ₹448.90 |
| 30+ | ₹39.90 | ₹1,197.00 |
| 100+ | ₹33.83 | ₹3,383.00 |
| 500+ | ₹31.01 | ₹15,505.00 |
| 1,000+ | ₹29.49 | ₹29,490.00 |
1 × ₹56.16
₹56.16
excl. GST
₹66.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C01C-SSHM-T
₹56.16 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function;Page write protection function
- Memory Size
- 1Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
The AT24C01C/02C provides 1024/2048-bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 128/256 words of eight bits each. Both devices include a cascading feature that allows up to eight devices to share a common 2-wire bus. These devices are optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C01C/02C are available in space saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-lead UDFN, 5-lead SOT23, and 8-ball VFBGA packages. In addition, the entire family operates from 1.7V to 5.5V VCC.
Key features
- Low-voltage operation: VCC = 1.7V to 5.5V
- Internally organized as 128x8 (1K) or 256x8 (2K)
- I²C compatible (2-wire) serial interface
- Schmitt Trigger, filtered inputs for noise suppression
- Bidirectional data transfer protocol
- 400kHz (1.7V) and 1MHz (2.5V, 2.7V, 5.0V) compatibility
- Write Protect pin for hardware data protection
- 8-byte Page Write mode
- Partial page writes allowed
- Self-timed write cycle (5ms max)
- High-reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green package options (Pb/Halide-free/RoHS-compliant)
- 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT and 8-ball VFBGA
- Die sale options: wafer form and tape and reel available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24C01BN(XBLW)#C18723541XBLW · SOP-8 | XBLW | SOP-8 | 18,870 | ₹5.86 · 18,870 in stock | View |
 | AT24C01BS#C51927310GREENMICRO · SOP-8 | GREENMICRO | SOP-8 | 700 | ₹5.97 · 700 in stock | View |
 | AT24C01D-SSHM-T-TUDI#C22469207Tudi · SOP-8 | Tudi | SOP-8 | 2,395 | ₹17.98 · 2,395 in stock | View |
 | AT24C01C-SSHM-T-TUDI#C22469208Tudi · SOP-8 | Tudi | SOP-8 | 2,020 | ₹17.95 · 2,020 in stock | View |
 | CAT24C01WI-GT3-TUDI#C22469209Tudi · SOP-8 | Tudi | SOP-8 | 2,395 | ₹15.56 · 2,395 in stock | View |
