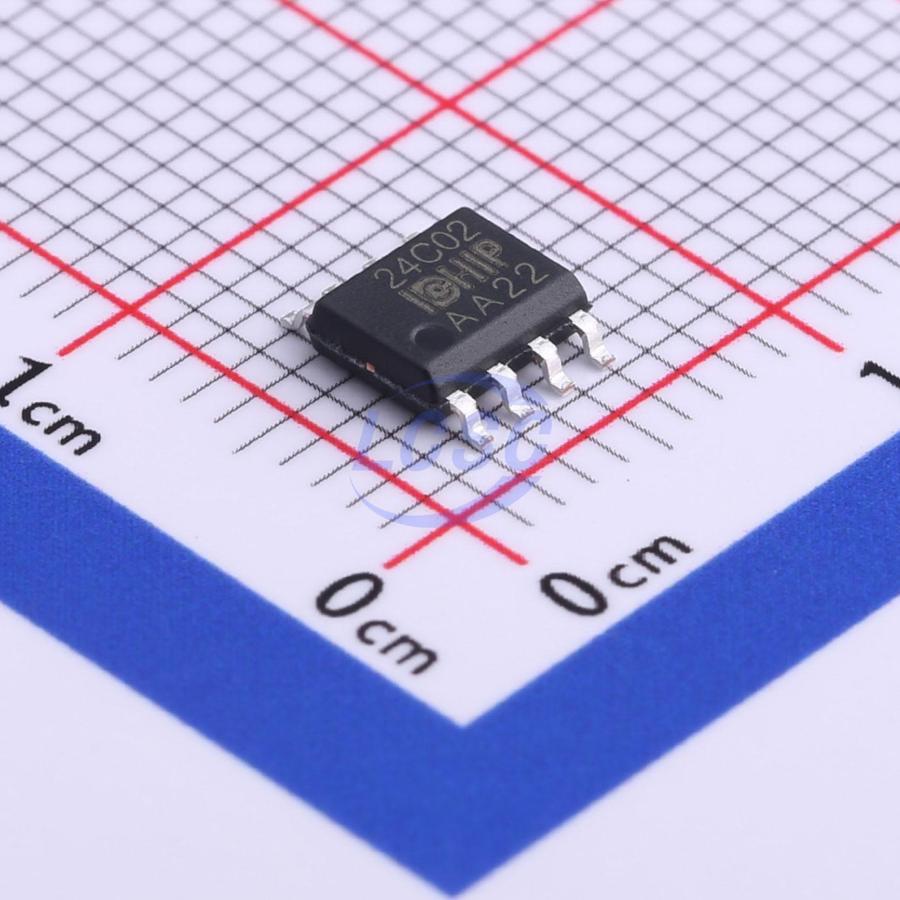

AT24C02
2Kbit 1MHz I2C SOP-8 Memory RoHS
24C02 2K-bit Electrically Erasable PROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,72,440 in stock
#C688857
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.85 | ₹88.50 |
| 100+ | ₹7.30 | ₹730.00 |
| 300+ | ₹6.51 | ₹1,953.00 |
| 1,000+ | ₹5.86 | ₹5,860.00 |
| 4,000+ | ₹3.90 | ₹15,600.00 |
| 8,000+ | ₹3.74 | ₹29,920.00 |
10 × ₹8.85
₹88.50
excl. GST
₹104.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C02
₹88.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.8V~5.5V;1mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.162 g
Overview
24C02/04/08/16/32/64 are EEPROMs organized as 256/512/1024/2048/4096/8192x8-bit respectively, with a two-wire serial interface. Operating voltage can be as low as 1.8V, with standby current and active current of 1uA and 1mA respectively. 24C02/04/08/16/32/64 support page write capability, with page sizes of 8/16/16/16/32/32 bytes respectively. 24C02/04/08/16/32/64 are available in 8-pin PDIP, 8-pin SOP, and 5-pin SOT23-5 packages.
Key features
- Wide operating voltage range: 1.8V~5.5V
- Low voltage technology
- 1mA typical operating current
- 1pA typical standby current
- 2-wire serial interface, fully compatible with I2C bus
- I2C clock frequency: 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V)
- Schmitt trigger input noise suppression
- Hardware data write protection
- Internal write cycle (5 ms max)
- Byte write capability
- Page write: 8-byte page (24C02), 16-byte page (24C04/08/16), 32-byte page (24C32/64)
- Byte, random, and sequential read capability
- Auto-increment addressing
- ESD protection exceeding 2.5kV
- High reliability
- Endurance: 1,000,000 write/erase cycles
- Data retention: 100 years
- 8-pin DIP and 8-pin SOP packages
- Lead-free process, RoHS compliant
