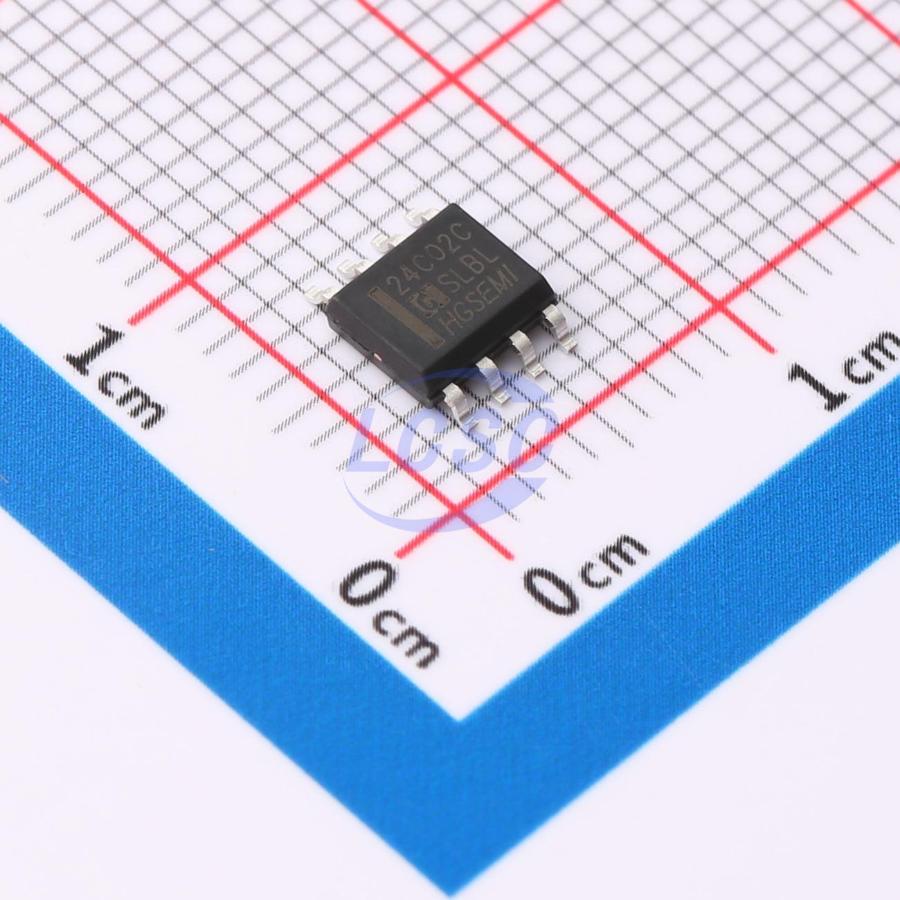

AT24C02CM/TR
2Kbit 1MHz I2C SOP-8 Memory
2-Kbit I2C-compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,470 in stock
#C7432364
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.18 | ₹91.80 |
| 100+ | ₹7.32 | ₹732.00 |
| 300+ | ₹6.36 | ₹1,908.00 |
| 2,500+ | ₹5.66 | ₹14,150.00 |
| 5,000+ | ₹5.11 | ₹25,550.00 |
| 10,000+ | ₹4.82 | ₹48,200.00 |
10 × ₹9.18
₹91.80
excl. GST
₹108.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AT24C02CM/TR
₹91.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Software write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;0.5mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;500ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 2,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.233 g
Overview
The AT24C02C is a 2-Kbit I²C-compatible serial EEPROM device. The device is designed to operate in a supply voltage range of 1.7V to 5.5V, with a maximum of 1MHz transfer rate, over an operating temperature range of -40℃ to +105℃. The device incorporates a Write Protection pin used for hardware Write Protection on the whole memory array. The device also offers a Software Write Protection feature for users to write protect the whole memory array. The memory array is organized as 16 pages of 16 bytes each, totaling 256*8 bits. The device offers an additional 16-byte Identification Page for users to store sensitive application parameters. This page can be permanently locked in Read-only mode after the data is written into the Identification Page. The device also offers a separate memory block (in Read-only mode) containing a factory programmed 128-bit Unique ID and can be accessed to by sending a specific Read command. The AT24C02C is delivered in lead-free green packages: SOP-8, MSOP-8, DFN-8 and SOT23-5.
Key features
- Supply Voltage Range: 1.7V to 5.5V
- 2-wire Serial Interface I²C Compatible - 400kHz and High Speed 1MHz Transfer Rate Compatibility
- Byte and Page (up to 16 Bytes) Write Mode - Partial Page Write Allowed
- Self-timed Write Cycle (3ms Maximum)
- Additional 16-byte Write Lockable Page and 128-bit Unique ID
- Hardware and Software Write Protection on the Whole Memory Array
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High Reliability - Endurance: 2,000,000 Write Cycles - Data Retention: 200 Years - ESD Protection (Human Body Model): 5000V
- Low Operating Current - Write Current: 0.5mA (Maximum) - Read Current: 0.5mA (Maximum) - Standby Current: 1μA (Maximum)
- Operating Temperature Range: -40℃ to +105℃
- Green Packaging Options (RoHS Compliant, Pb/Halogen-free) - SOP-8/MSOP-8/TSSOP-8/DFN-8/SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG24C02CM/TR#C7432361HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,390 | ₹8.94 · 2,390 in stock | View |
 | HG24LC02M/TR#C3007878HGSEMI · SOP-8 | HGSEMI | SOP-8 | 25 | ₹10.97 · 25 in stock | View |
 | AT24LC02M/TR#C3007887HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,445 | ₹10.94 · 2,445 in stock | View |
 | 24C02/TR#C316692HGSEMI · SOIC-8 | HGSEMI | SOIC-8 | 2,660 | ₹8.81 · 2,660 in stock | View |
 | AT24C02M/TR#C356696HGSEMI · SOP-8 | HGSEMI | SOP-8 | 6,240 | ₹8.61 · 6,240 in stock | View |
