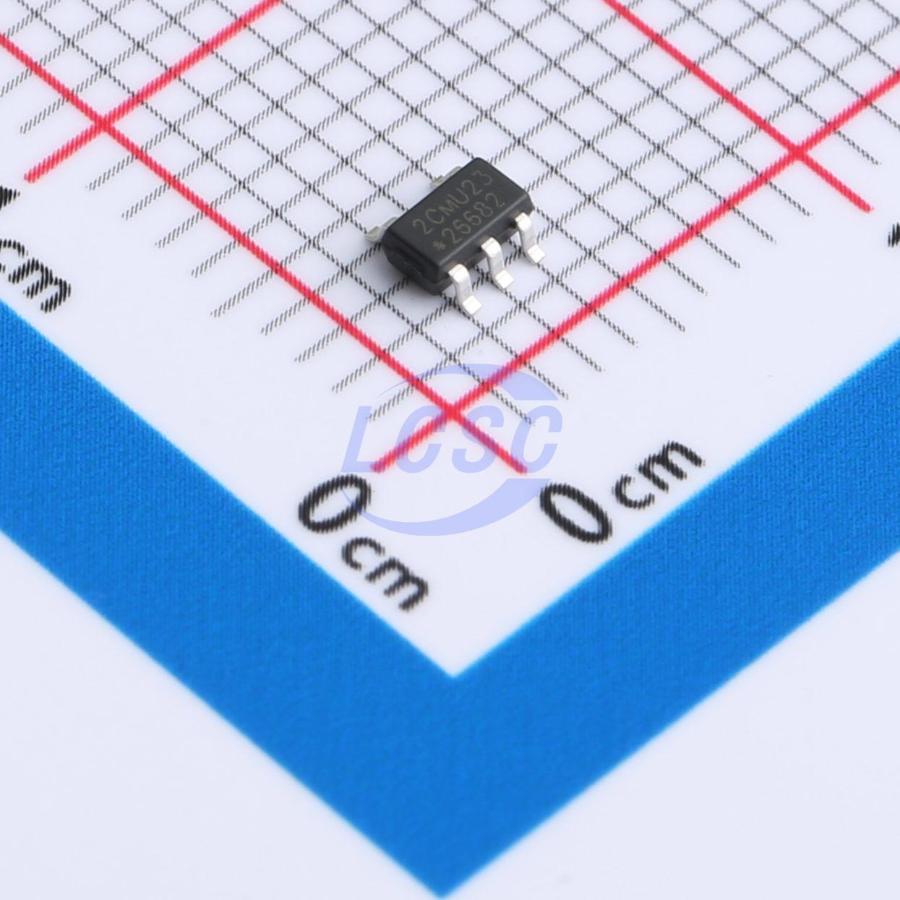

AT24C02CM5/TR
2Kbit 1MHz I2C SOT23-5 Memory
2-Kbit I2C-compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
66,070 in stock
#C7432363
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.04 | ₹70.40 |
| 100+ | ₹6.27 | ₹627.00 |
| 300+ | ₹5.89 | ₹1,767.00 |
| 3,000+ | ₹5.13 | ₹15,390.00 |
| 6,000+ | ₹4.90 | ₹29,400.00 |
| 9,000+ | ₹4.78 | ₹43,020.00 |
10 × ₹7.04
₹70.40
excl. GST
₹83.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AT24C02CM5/TR
₹70.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Software write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;0.5mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;500ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 2,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The AT24C02C is a 2-Kbit I²C -compatible serial EEPROM device. The device is designed to operate in a supply voltage range of 1.7V to 5.5V, with a maximum of 1MHz transfer rate, over an operating temperature range of -40°C to +105°C. The device incorporates a Write Protection pin used for hardware Write Protection on the whole memory array. The device also offers a Software Write Protection feature for users to write protect the whole memory array. The memory array is organized as 16 pages of 16 bytes each, totaling 256 * 8 bits. The device offers an additional 16-byte Identification Page for users to store sensitive application parameters. This page can be permanently locked in Read-only mode after the data is written into the Identification Page. The device also offers a separate memory block (in Read-only mode) containing a factory programmed 128-bit Unique ID and can be accessed to by sending a specific Read command. 2C is delivered in lead-free green packages: DIP-8,SOP-8, MSOP-8, DFN-8 and SOT23-5.
Key features
- Supply Voltage Range: 1.7V to 5.5V
- 2-wire Serial Interface I²C Compatible - 400kHz and High Speed 1MHz Transfer Rate Compatibility
- Byte and Page (up to 16 Bytes) Write Mode - Partial Page Write Allowed
- Self-timed Write Cycle (3ms Maximum)
- Additional 16-byte Write Lockable Page and 128-bit Unique ID
- Hardware and Software Write Protection on the Whole Memory Array
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High Reliability - Endurance: 2,000,000 Write Cycles - Data Retention: 200 Years - ESD Protection (Human Body Model): 5000V
- Low Operating Current - Write Current: 0.5mA (Maximum) - Read Current: 0.5mA (Maximum) - Standby Current: 1μA (Maximum)
- Operating Temperature Range: -40°C to +105°C
- Green Packaging Options (RoHS Compliant, Pb/Halogen-free) - DIP-8/SOP-8/MSOP-8/TSSOP-8/DFN-8/SOT-23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG24C02CM5/TR#C7432359HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 1,030 | ₹8.65 · 1,030 in stock | View |
 | HG24C02M5/TR#C565360HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 3,140 | ₹8.20 · 3,140 in stock | View |
 | AT24C02M5/TR#C565361HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 4,617 | ₹8.37 · 4,617 in stock | View |
