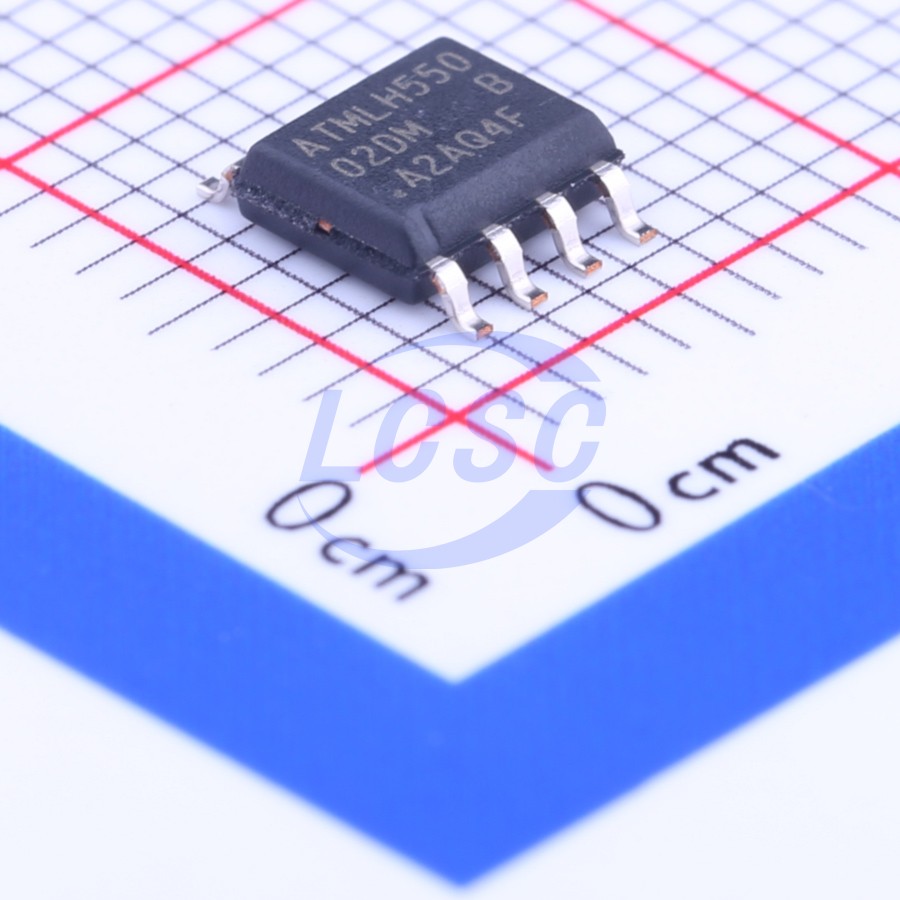

AT24C02D-SSHM-T
2Kbit 1MHz I2C SOIC-8 Memory RoHS
I2C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,005 in stock
#C34807
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.21 | ₹141.05 |
| 50+ | ₹21.94 | ₹1,097.00 |
| 150+ | ₹19.25 | ₹2,887.50 |
| 500+ | ₹15.89 | ₹7,945.00 |
| 2,500+ | ₹15.03 | ₹37,575.00 |
| 4,000+ | ₹14.13 | ₹56,520.00 |
5 × ₹28.21
₹141.05
excl. GST
₹166.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C02D-SSHM-T
₹141.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~3.6V;1mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 0.8uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
The Atmel AT24C01D/02D provides 1,024/2,048 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 128/256 words of eight bits each. The device’s cascadable feature allows up to eight devices to share a common 2-wire bus. These device are optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. Both devices are available in space-saving 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP, 5-lead SOT23, and 8-ball VFBGA packages. The entire family of packages operates from 1.7V to 3.6V.
Key features
- Low voltage operation 1.7V (VCC = 1.7V to 3.6V)
- Internally organized 128x8 (1K) or 256x8 (2K)
- I²C -Compatible (2-wire) serial interface
- Schmitt Triggers, filtered inputs for noise suppression
- Bidirectional data transfer protocol 400kHz (1.7V) and 1MHz (2.5V) compatibility
- Write Protect pin for full array hardware data protection
- Ultra low active current (1mA max) and standby current (0.8μA max)
- 8-byte Page Write mode
- Partial page writes allowed
- Random and Sequential Read modes
- Self-timed write cycle within 5ms max
- High reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green package options (Lead-free/Halide-free/RoHS Compliant)
- 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP, 5-lead SOT23, and 8-ball VFBGA
- Die sale options: wafer form and tape and reel available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C02D-SSHM-B#C615454MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1 | ₹65.54 · 1 in stock | View |
 | FM24C02F-SO-T-G#C19626881FUDAN MICRO · SOP-8 | FUDAN MICRO | SOP-8 | 15,090 | ₹15.21 · 15,090 in stock | View |
| AT24MAC602-SSHM-T#C2061032MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 249 | ₹162.99 · 249 in stock | View | |
 | P24C02A-SSH-MIT#C2977249PUYA · SOP-8 | PUYA | SOP-8 | 100 | ₹7.53 · 100 in stock | View |
 | PT24C02#C351425PUOLOP · SOP-8 | PUOLOP | SOP-8 | 3,000 | ₹8.97 · 3,000 in stock | View |
