TECH PUBLICDatasheet (PDF)

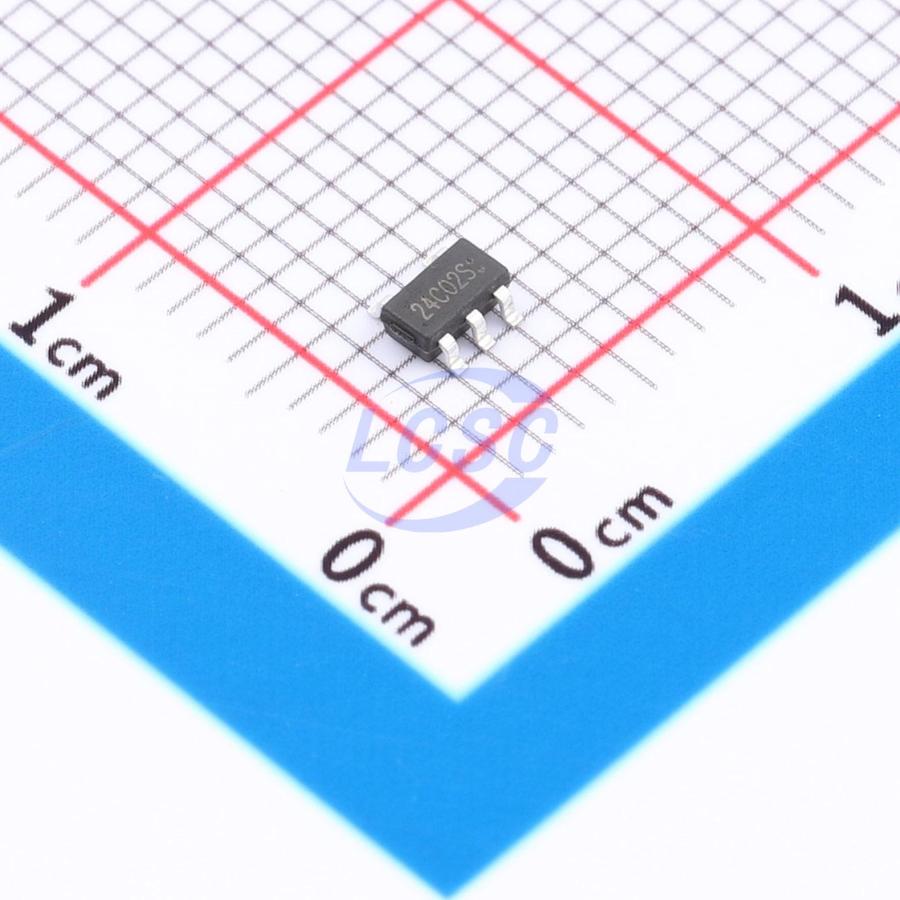

AT24C02S(TP)
2Kbit 1MHz I2C SOT-23-5 Memory
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AT24C02S(TP)
- Store part #
- C51939533
- Package / case
- SOT-23-5
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,540 in stock
#C51939533
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.88 | ₹68.80 |
| 100+ | ₹5.41 | ₹541.00 |
| 300+ | ₹4.68 | ₹1,404.00 |
| 3,000+ | ₹4.14 | ₹12,420.00 |
| 6,000+ | ₹3.70 | ₹22,200.00 |
| 9,000+ | ₹3.48 | ₹31,320.00 |
10 × ₹6.88
₹68.80
excl. GST
₹81.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AT24C02S(TP)
₹68.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;1.6mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;550ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.1 g
Overview
AT24C02 is a 2-Kbit I²C-compatible serial EEPROM device. It contains a 256×8-bit memory array organized in 8-byte pages.
Key features
- Single-supply voltage with high-speed operation: supports 1 MHz clock at 2.5V to 5.5V; supports 400 kHz clock at 1.7V to 2.5V.
- Low-power CMOS technology.
- Maximum read current 400 µA; maximum write current 1.6 mA.
- Schmitt trigger inputs with filtering for noise suppression.
- Sequential and random read modes supported.
- Page write mode with partial page write capability.
- Write protection for the entire memory array.
- Self-timed write cycle (5 ms max).
- High reliability: endurance > 1,000,000 write cycles; data retention > 100 years; ESD HBM rating 4 kV; latch-up immunity ±200 mA.
- Package options: SOP-8, SOT23-5.
