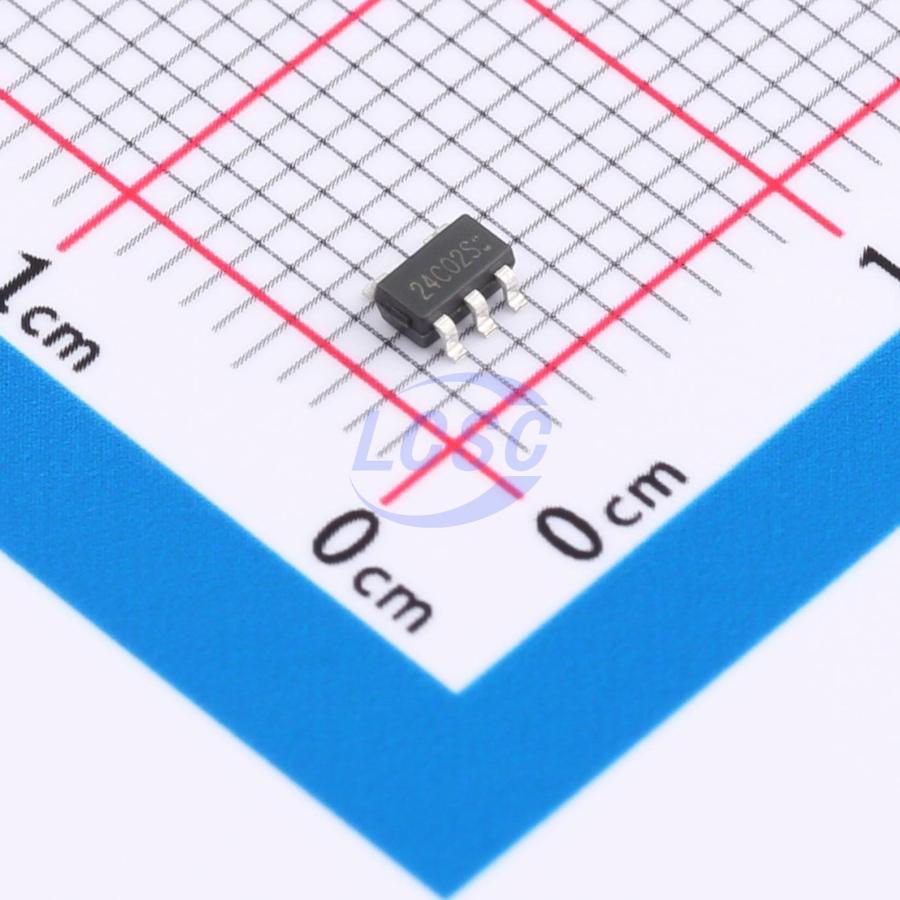

TP24C02S5
2Kbit 1MHz I2C SOT-23-5 Memory
SOT-23-5RoHSActive
I2C-Compatible Serial E2PROM
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP24C02S5
- Store part #
- C18197836
- Package / case
- SOT-23-5
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,450 in stock
#C18197836
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.29 | ₹72.90 |
| 100+ | ₹5.73 | ₹573.00 |
| 300+ | ₹4.95 | ₹1,485.00 |
| 3,000+ | ₹4.35 | ₹13,050.00 |
| 6,000+ | ₹3.89 | ₹23,340.00 |
| 9,000+ | ₹3.65 | ₹32,850.00 |
10 × ₹7.29
₹72.90
excl. GST
₹86.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP24C02S5
₹72.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;1.6mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The TP24C02S is 2-Kbit I²C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 256x8 bits, which is organized in 8 bytes per page. TP24C02S provides the following devices for different application.
Key features
- Single Supply Voltage and High Speed
- 1 MHz clock from 2.5V to 5.5V
- 400kHz clock from 1.7V to 2.5V
- Low power CMOS technology
- Read current 400uA, maximum
- Write current 1.6mA, maximum
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Sequential&Random Read Features
- Page Write Modes, Partial Page Writes Allowed
- Write protect of the whole memory array
- Self-timed Write Cycle (5ms maximum)
- High Reliability
- Endurance: >1 Million Write Cycles
- Data Retention: >100 Years
- ESD HBM: 4KV
- Latch-up Capability: +/ 200mA
- Package: SOP-8, SOT23-5
