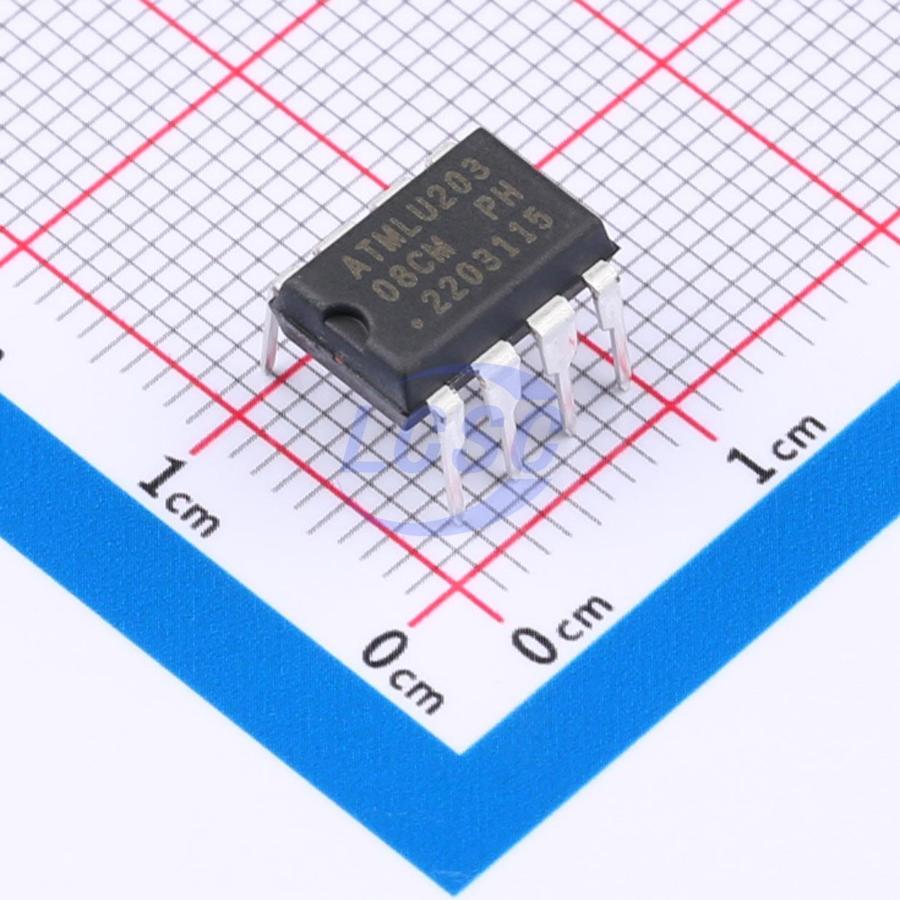

AT24C08C-PUM
8Kbit 1MHz I2C DIP-8 Memory RoHS
I²C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,621 in stock
#C111545
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹33.94 | ₹33.94 |
| 10+ | ₹31.89 | ₹318.90 |
| 30+ | ₹30.53 | ₹915.90 |
| 100+ | ₹29.00 | ₹2,900.00 |
1 × ₹33.94
₹33.94
excl. GST
₹40.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
AT24C08C-PUM
₹33.94 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.356 g
Overview
The Atmel AT24C04C and AT24C08C provides 4,096/8,192 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 512/1024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. AT24C04C/08C is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA packages and is accessed via a 2-wire serial interface.
Key features
- Low-voltage and Standard-voltage Operation V_CC = 1.7V to 5.5V
- Internally Organized as 512 x 8 (4K), or 1024 x 8 (8K)
- I²C-compatible (2-wire) Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- 1MHz (2.5V, 2.7V, 5V), 400kHz (1.7V) Compatibility
- Write Protect Pin for Hardware Data Protection
- 16-byte Page Write Mode
- Partial Page Writes Allowed
- Self-timed Write Cycle (5ms Max)
- High-reliability Endurance: 1,000,000 Write Cycles
- Data Retention: 100 Years
- Green Package Options (Pb/Halide-free/RoHS Compliant)
- 8-lead PDIP, 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA
- Die Options: Wafer Form and Tape and Reel
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP24C08DA8.TB#C52260226Wuxi I-core Elec · DIP-8 | Wuxi I-core Elec | DIP-8 | 10 | ₹9.26 · 10 in stock | View |
 | AT24C08N#C434604HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,965 | ₹14.66 · 1,965 in stock | View |
 | 24C08N(XBLW)#C18723550XBLW · DIP-8 | XBLW | DIP-8 | 1,055 | ₹9.15 · 1,055 in stock | View |
 | AT24C08CP164#C51026295GREENMICRO · DIP-8 | GREENMICRO | DIP-8 | 2,000 | ₹9.24 · 2,000 in stock | View |
 | AT24C08CN#C22396887HGSEMI · DIP-8 | HGSEMI | DIP-8 | 2,320 | ₹13.87 · 2,320 in stock | View |
