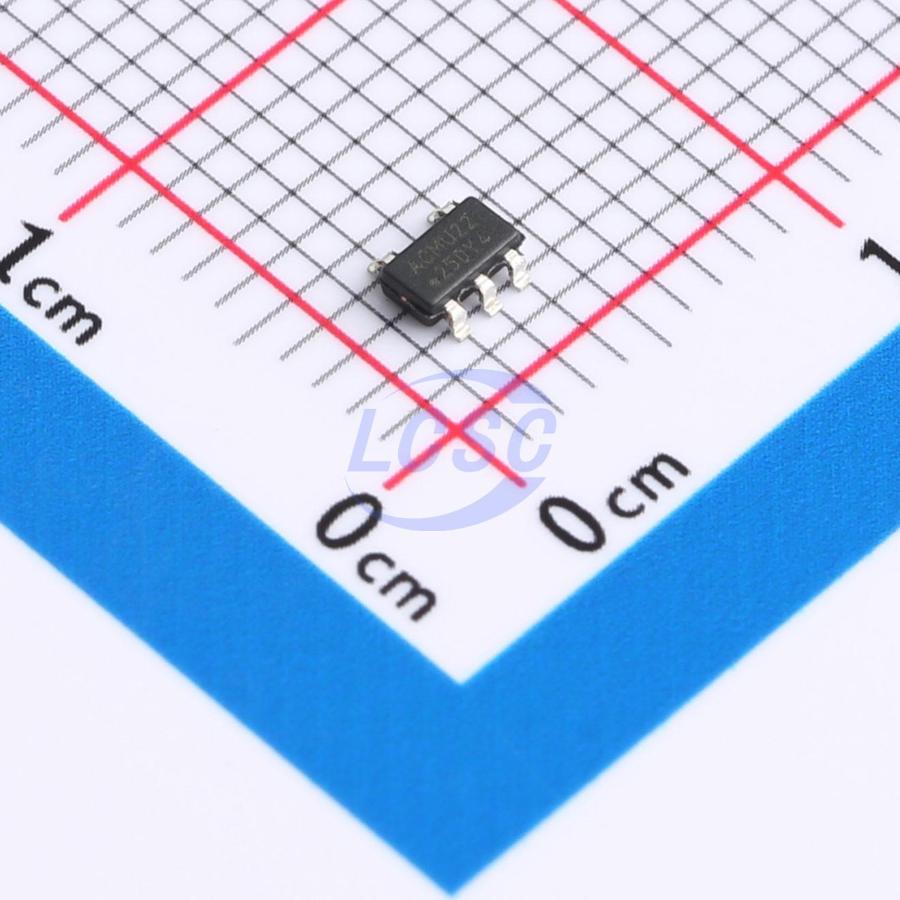

AT24C16C-STUM-T
16Kbit 1MHz I2C SOT-23-5 Memory RoHS
I²C-Compatible (2-Wire) Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,226 in stock
#C2061175
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.08 | ₹104.08 |
| 10+ | ₹83.88 | ₹838.80 |
| 30+ | ₹73.88 | ₹2,216.40 |
| 100+ | ₹63.89 | ₹6,389.00 |
| 500+ | ₹57.80 | ₹28,900.00 |
| 1,000+ | ₹54.76 | ₹54,760.00 |
1 × ₹104.08
₹104.08
excl. GST
₹122.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24C16C-STUM-T
₹104.08 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;450ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
The AT24C16C provides 16,384 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 2,048 words of 8 bits each. This device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential. The device is available in space-saving 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP, 5-lead SOT23, 8-ball VFBGA and 8-pad XDFN packages. All packages operate from 1.7V to 5.5V.
Key features
- Low-Voltage Operation: – VCC = 1.7V to 5.5V
- Internally Organized as 2,048x8 (16K)
- Industrial Temperature Range: -40℃ to +85℃
- I²C-Compatible (2-Wire) Serial Interface:
- 100 kHz Standard mode, 1.7V to 5.5V
- 400 kHz Fast mode, 1.7V to 5.5V
- 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write-Protect Pin for Full Array Hardware Data Protection
- Ultra Low Active Current (3 mA maximum) and Standby Current (6 μA maximum)
- 16-Byte Page Write Mode:
- Partial page writes allowed
- Random and Sequential Read Modes
- Self-Timed Write Cycle within 5 ms Maximum
- ESD Protection > 4,000V
- High Reliability:
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green Package Options (Lead-free/Halide-free/RoHS compliant)
- Die Sale Options: Wafer Form
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FT24C16A-KLR-T#C5263774FMD(Fremont Micro Devices) · SOT-23-5 | FMD(Fremont Micro Devices) | SOT-23-5 | 42,385 | ₹12.37 · 42,385 in stock | View |
 | 24C16S(XBLW)#C41408503XBLW · SOT-23-5 | XBLW | SOT-23-5 | 11,120 | ₹10.21 · 11,120 in stock | View |
 | 24FC16T-I/OT#C1870726MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 6 | ₹56.17 · 6 in stock | View |
 | AT24LC16M5/TR#C41415966HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,840 | ₹17.21 · 2,840 in stock | View |
 | HG24C16M5-852/TR#C54140479HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 500 | ₹16.91 · 500 in stock | View |
