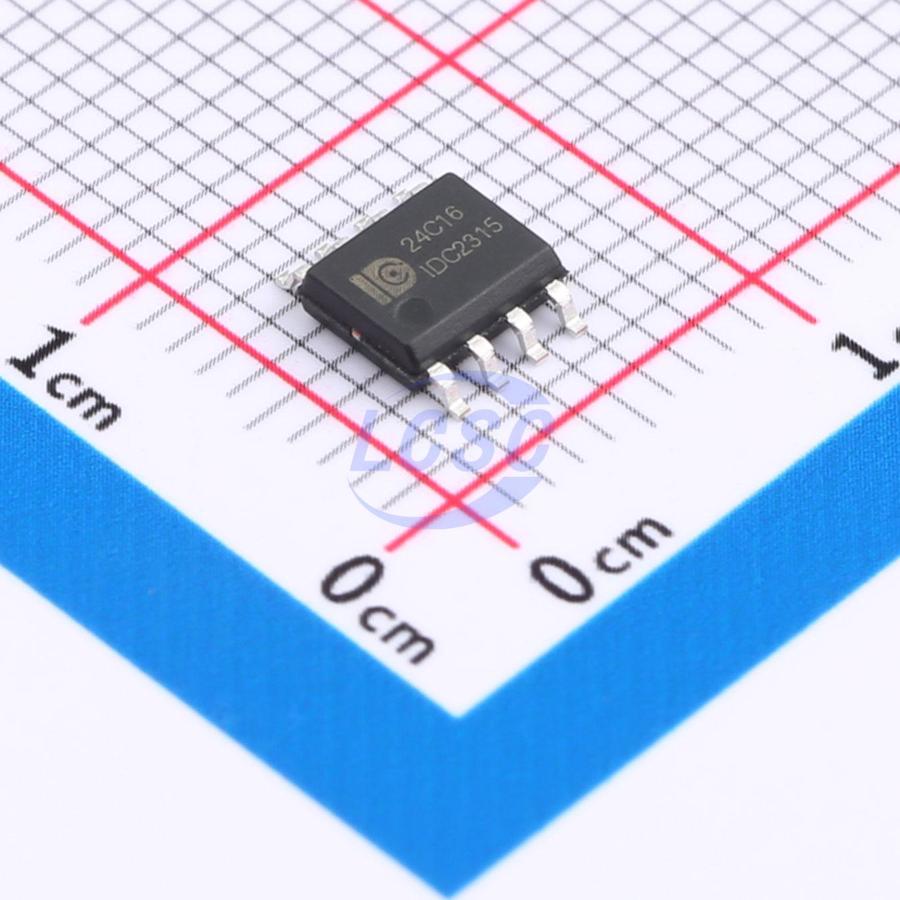

AT24C16D
16Kbit 1MHz I2C SOP-8 Memory RoHS
Serial Electrically Erasable Programmable Read-Only Memory
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,550 in stock
#C7432022
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.82 | ₹98.20 |
| 100+ | ₹7.82 | ₹782.00 |
| 300+ | ₹6.83 | ₹2,049.00 |
| 1,000+ | ₹6.09 | ₹6,090.00 |
| 4,000+ | ₹5.49 | ₹21,960.00 |
| 8,000+ | ₹5.19 | ₹41,520.00 |
10 × ₹9.82
₹98.20
excl. GST
₹115.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C16D
₹98.20 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.156 g
Overview
AT24C16D is a serial EEPROM. It provides 2048 bytes of data storage, organized as 128 pages of 16 bytes each. Random word addressing requires an 11-bit data word address. Utilizing low-power CMOS technology with a self-timed programming cycle, it is available in SOP-8 and DIP-8 packages. Its simple interface, compact size, and non-volatile data retention make it widely adopted in instrumentation and industrial automation control applications.
Applications
- Smart instrumentation
- Industrial control
- Automotive electronics
- Home appliances
- Communications equipment
Key features
- Wide operating voltage range: 1.8V ~ 5.5V
- Memory organization: 16K bits (2048 x 8 bits)
- Clock frequency: 1MHz (5V); 400kHz (1.8V, 2.5V, 2.7V)
- Self-timed write cycle (5ms max)
- Page write mode (16 bytes/page)
- Schmitt trigger inputs for noise suppression
- Two-wire serial interface
- Hardware write protection
- High reliability: 1,000,000 write/erase cycles, 100-year data retention
