IDCHIP

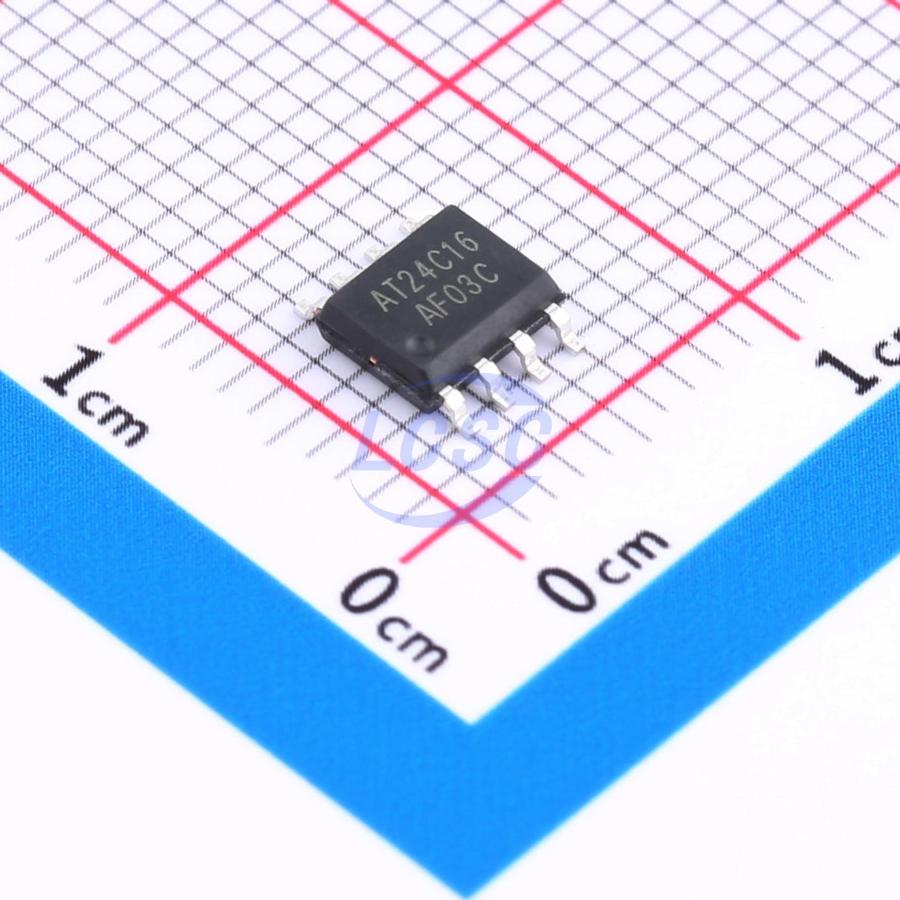

AT24C16
16Kbit 1MHz I2C SOP-8 Memory RoHS
SOP-8ROHS CompliantActive
16K-bit I2C Bus Electrically Erasable PROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31,950 in stock
#C561263
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.63 | ₹96.30 |
| 100+ | ₹7.61 | ₹761.00 |
| 300+ | ₹6.60 | ₹1,980.00 |
| 1,000+ | ₹5.83 | ₹5,830.00 |
| 4,000+ | ₹5.24 | ₹20,960.00 |
| 8,000+ | ₹4.93 | ₹39,440.00 |
10 × ₹9.63
₹96.30
excl. GST
₹113.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C16
₹96.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.173 g
Overview
AT24C16 is a serial electrically erasable programmable read-only memory (EEPROM). The memory provides 2048 bytes of storage, organized as 128 pages of 16 bytes each. Random word addressing requires an 11-bit data word address. The device is fabricated using low-power CMOS technology and features a self-timed write cycle. The AT24C16 is available in SOP-8 and DIP-8 packages.
Applications
- Smart instrumentation
- Laptops
- Computers
- Home appliances
- Automotive electronics
Key features
- Wide operating voltage range: 1.8 V ~ 5.5 V
- Memory organization: 16K-bit (128 x 16 x 8 bits)
- Clock frequency: 1 MHz (5 V); 400 kHz (1.8 V, 2.5 V, 2.7 V)
- Self-timed write cycle (5 ms max)
- Page write mode (16 bytes/page)
- Schmitt trigger inputs for noise suppression
- Two-wire serial interface
- Hardware data write protection
- High reliability: 1,000,000 write/erase cycles, 100-year data retention
