MICROCHIP

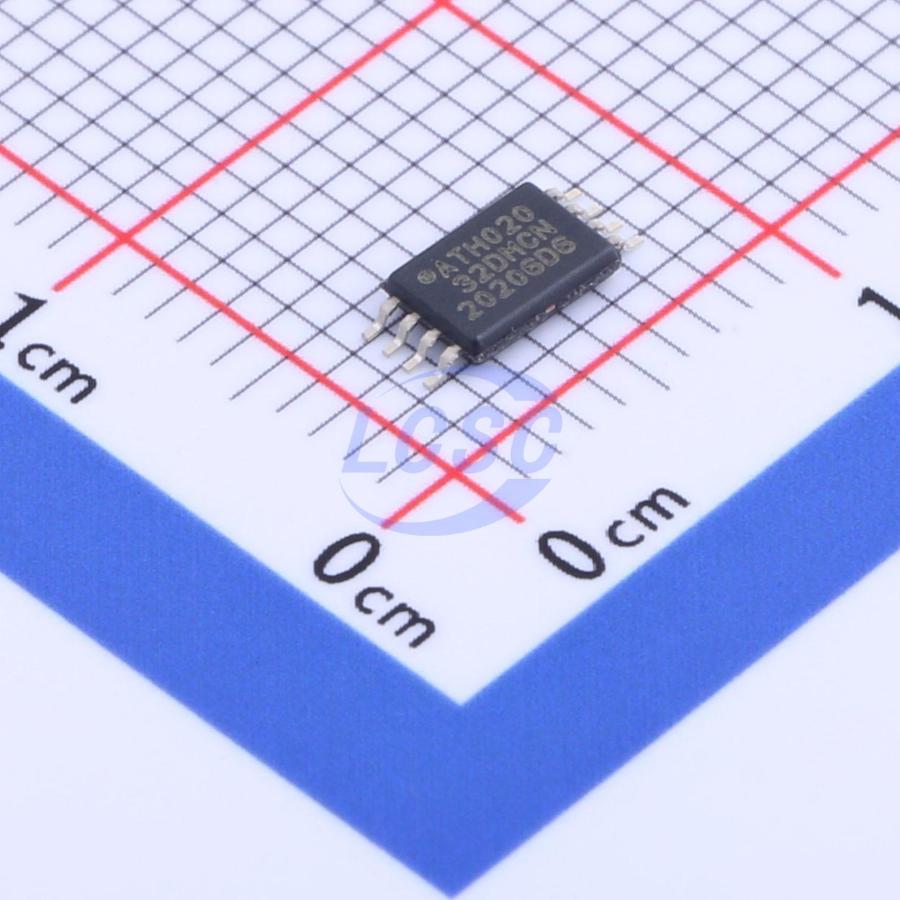

AT24C32D-XHM-T
32Kbit 1MHz I2C TSSOP-8 Memory RoHS
TSSOP-8ROHS3 CompliantActive
I²C-Compatible (2-Wire) Serial EEPROM 32-Kbit (4,096 x 8)
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,777 in stock
#C2685757
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.16 | ₹100.16 |
| 10+ | ₹81.91 | ₹819.10 |
| 30+ | ₹72.79 | ₹2,183.70 |
| 100+ | ₹63.66 | ₹6,366.00 |
| 500+ | ₹58.23 | ₹29,115.00 |
| 1,000+ | ₹55.41 | ₹55,410.00 |
1 × ₹100.16
₹100.16
excl. GST
₹118.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24C32D-XHM-T
₹100.16 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.156 g
Overview
Key features
- Low-Voltage and Standard-Voltage Operation: – VCC = 1.7V to 5.5V
- Internally Organized as 4,096 x 8 (32K)
- Industrial Temperature Range: -40°C to +85°C
- I²C-Compatible (2-Wire) Serial Interface:
- 100 kHz Standard mode, 1.7V to 5.5V
- 400 kHz Fast mode, 1.7V to 5.5V
- 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write-Protect Pin for Full Array Hardware Data Protection
- Ultra Low Active Current (3 mA maximum) and Standby Current (6 μA maximum)
- 32-Byte Page Write Mode:
- Partial page writes allowed
- Random and Sequential Read Modes
- Self-Timed Write Cycle within 5 ms Maximum
- High Reliability:
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green Package Options (Lead-free/Halide-free/RoHS compliant)
- Die Sale Options: Wafer Form and Bumped Wafers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C32D-XHM-B#C1353500MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 2 | ₹124.96 · 2 in stock | View |
 | FT24C32A-ETR-T#C232881FMD(Fremont Micro Devices) · TSSOP-8 | FMD(Fremont Micro Devices) | TSSOP-8 | 2,660 | ₹15.04 · 2,660 in stock | View |
 | P24C32C-TSH-MIR#C2977255PUYA · TSSOP-8 | PUYA | TSSOP-8 | 660 | ₹21.02 · 660 in stock | View |
 | HG24C32AMT/TR#C53468204HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 4,985 | ₹20.80 · 4,985 in stock | View |
 | AT24C32AMT/TR-HG#C53468201HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 4,085 | ₹20.80 · 4,085 in stock | View |
