MICROCHIP

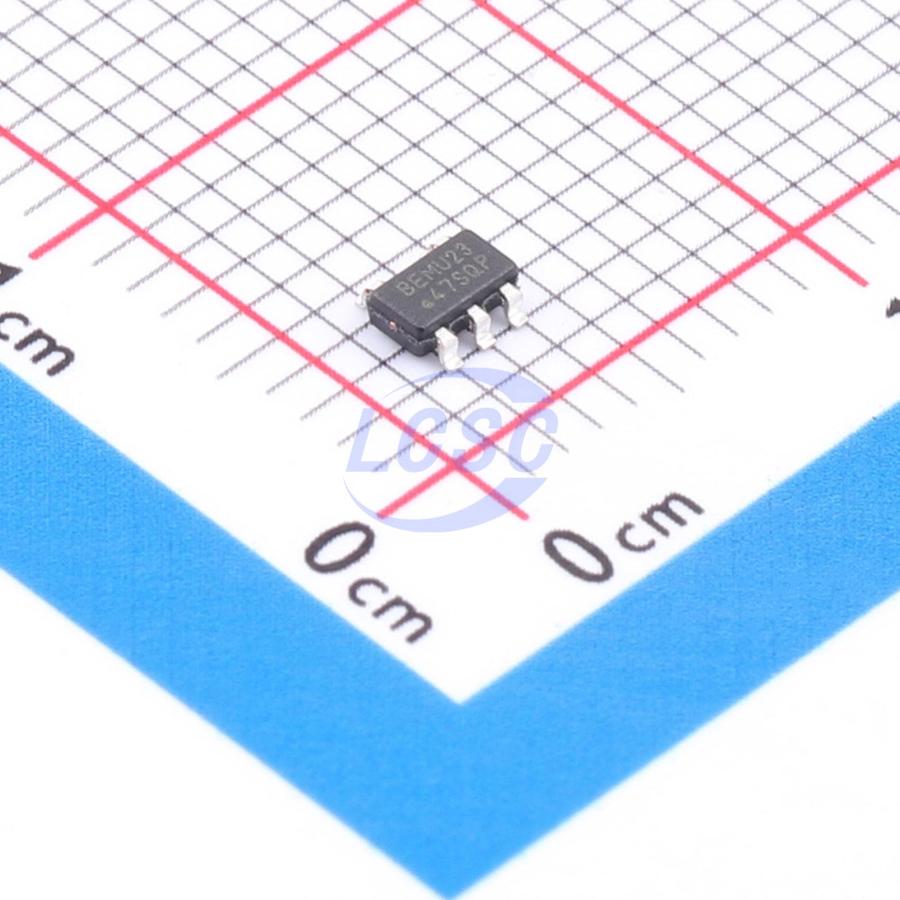

AT24C32E-STUM-T
32Kbit 1MHz I2C SOT-23-5 Memory RoHS
SOT-23-5ROHS3 CompliantActive
32-Kbit I2C-Compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,617 in stock
#C616256
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.76 | ₹143.76 |
| 10+ | ₹116.87 | ₹1,168.70 |
| 30+ | ₹103.21 | ₹3,096.30 |
| 100+ | ₹89.99 | ₹8,999.00 |
| 500+ | ₹81.96 | ₹40,980.00 |
| 1,000+ | ₹77.85 | ₹77,850.00 |
1 × ₹143.76
₹143.76
excl. GST
₹169.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24C32E-STUM-T
₹143.76 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.7V~3.6V;1mA
- Clock Frequency
- 1MHz
- Access Time
- 4500ns;900ns;450ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 0.8uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.044 g
Overview
Key features
- Low-Voltage Operation: – VCC = 1.7V to 3.6V
- Internally Organized as 4,096 x 8 (32K)
- Industrial Temperature Range: -40°C to +85°C
- I²C-Compatible (Two-Wire) Serial Interface:
- 100 kHz Standard mode, 1.7V to 3.6V
- 400 kHz Fast mode, 1.7V to 3.6V
- 1 MHz Fast Mode Plus (FM+), 2.5V to 3.6V
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write-Protect Pin for Full Array Hardware Data Protection
- Ultra Low Active Current (1 mA maximum) and Standby Current (0.8 μA maximum)
- 32-Byte Page Write Mode:
- Partial page writes allowed
- Random and Sequential Read Modes
- Self-Timed Write Cycle within 5 ms Maximum
- ESD Protection > 4,000V
- High Reliability:
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green Package Options (Lead-free/Halide-free/RoHS compliant)
- Die Sale Options: Wafer Form and Tape and Reel Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24CS32-STUM-T#C147891MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 57 | ₹192.38 · 57 in stock | View |
| AT24C32D-STUM-T#C2061176MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 195 | ₹155.65 · 195 in stock | View | |
 | FT24C32A-ELR-T#C5263776FMD(Fremont Micro Devices) · SOT-23-5 | FMD(Fremont Micro Devices) | SOT-23-5 | 3,380 | ₹12.91 · 3,380 in stock | View |
 | 24CW320T-I/OT#C2061351MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 5 | ₹171.99 · 5 in stock | View |
 | HG24C32M5/TR#C7432069HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 865 | ₹17.68 · 865 in stock | View |
