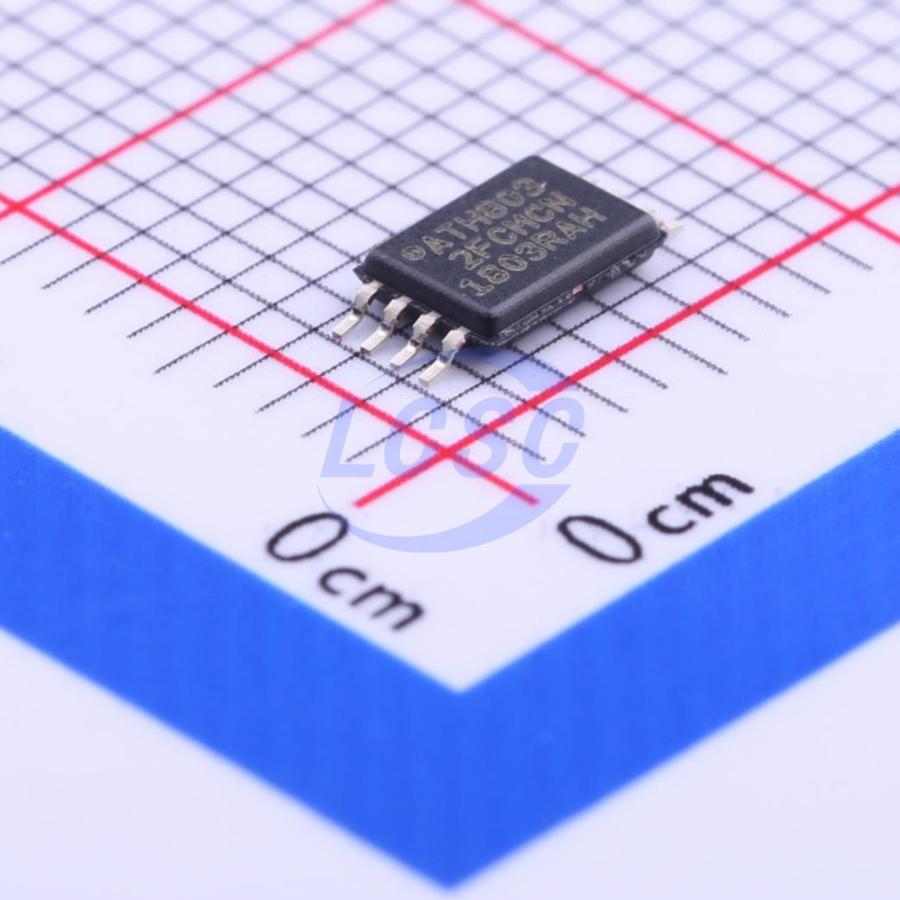

AT24C512C-XHM-T
512Kbit 1MHz I2C TSSOP-8 Memory RoHS
I2C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,477 in stock
#C111546
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.09 | ₹89.09 |
| 10+ | ₹72.43 | ₹724.30 |
| 30+ | ₹64.01 | ₹1,920.30 |
| 100+ | ₹55.79 | ₹5,579.00 |
| 500+ | ₹50.82 | ₹25,410.00 |
| 1,000+ | ₹48.22 | ₹48,220.00 |
1 × ₹89.09
₹89.09
excl. GST
₹105.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24C512C-XHM-T
₹89.09 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 512Kbit
- Voltage - Supply
- 1.7V~3.6V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.118 g
Overview
The Atmel AT24C512C provides 524,288 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 65,536 words of 8 bits each. The cascadable feature of the device allows up to eight devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The devices are available in space-saving 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, 8-pad UDFN, 8-ball WLCSP, and 8-ball VFBGA packages. In addition, the entire family is available in 1.7V to 3.6V and 2.5V to 5.5V versions.
Key features
- Low-voltage and Standard-voltage Operation V_CC = 1.7V to 3.6V, V_CC = 2.5V to 5.5V
- Internally Organized as 65,536 x 8 (512K)
- I²C-Compatible (2-Wire) Serial Interface
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- 400kHz (1.7V) and 1MHz (2.5V, 5.5V) Compatibility
- Write Protect Pin for Hardware Data Protection
- 128-byte Page Write Mode
- Partial Page Writes Allowed
- Random and Sequential Read Modes
- Self-timed Write Cycle (5ms Max)
- High Reliability Endurance: 1,000,000 Write Cycles
- Data Retention: 40 Years
- Green Package Options (Pb/Halide-free/RoHS Compliant)
- 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, 8-pad UDFN, 8-ball WLCSP, and 8-ball VFBGA Packages
- Die sale Options: Wafer Form and Tape and Reel Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C512C-XHM-B#C1349768MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 62 | ₹303.39 · 62 in stock | View |
 | FM24C512D-TS-T-G#C192125FUDAN MICRO · TSSOP-8 | FUDAN MICRO | TSSOP-8 | 6,128 | ₹58.33 · 6,128 in stock | View |
 | ZD24C512A-XGMT#C53284087Zetta · TSSOP-8 | Zetta | TSSOP-8 | 4,413 | ₹67.66 · 4,413 in stock | View |
 | BR24G512FVT-3AGE2#C2061050ROHM · TSSOP-8 | ROHM | TSSOP-8 | 1 | ₹158.48 · 1 in stock | View |
 | 24FC512-I/ST#C619635MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 29 | ₹281.46 · 29 in stock | View |
