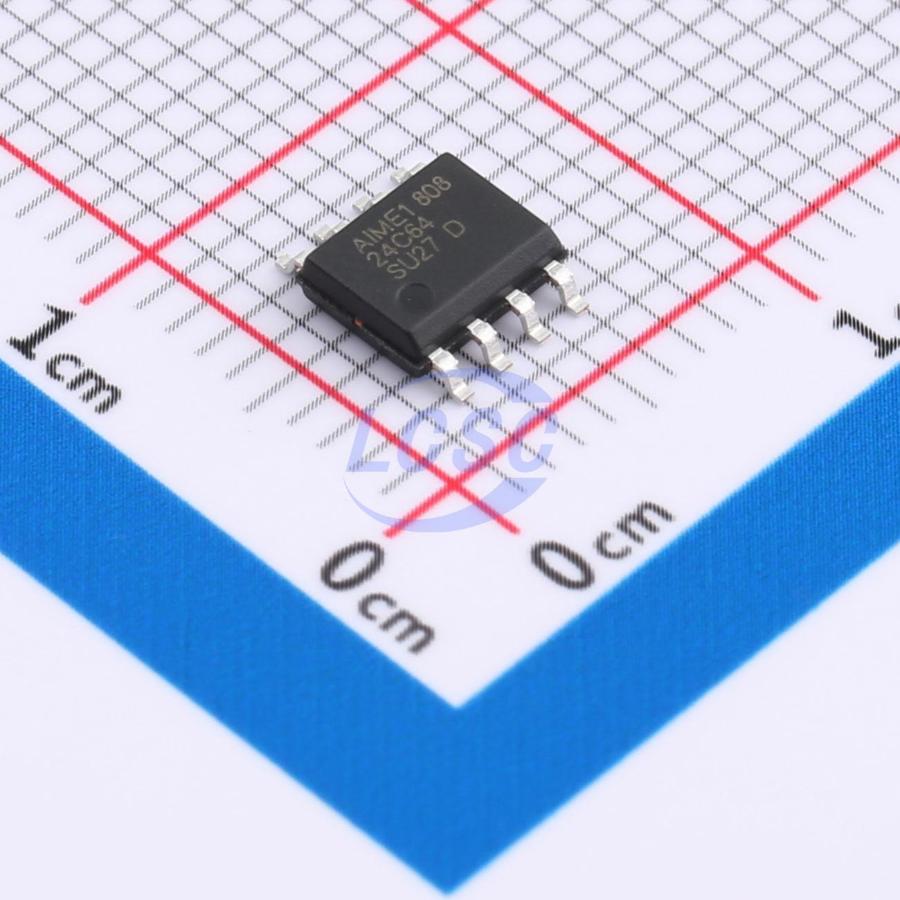

AT24C64
64Kbit 1MHz I2C SOP-8 Memory RoHS
Serial Electrically Erasable Programmable Read-Only Memory
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,200 in stock
#C18186739
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.77 | ₹78.85 |
| 50+ | ₹12.90 | ₹645.00 |
| 150+ | ₹11.46 | ₹1,719.00 |
| 500+ | ₹10.39 | ₹5,195.00 |
| 2,500+ | ₹7.75 | ₹19,375.00 |
| 5,000+ | ₹7.33 | ₹36,650.00 |
5 × ₹15.77
₹78.85
excl. GST
₹93.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AT24C64
₹78.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.199 g
Overview
The AT24C64 is a serial EEPROM. It provides 8,192 bytes of storage, organized as 256 pages of 32 bytes each. Random word addressing requires a 13-bit data word address. It features low-power CMOS technology and a self-timed programming cycle. The AT24C64 is available in SOP-8 and DIP-8 packages. Its convenient interface, compact size, and non-volatile data retention make it widely used in instrumentation and industrial automation control applications.
Applications
- Smart instrumentation
- Notebook computers
- Computers
- Home appliances
- Automotive electronics
- Communication equipment
- Industrial control
Key features
- Wide supply voltage range: 1.8V ~ 5.5V
- Memory organization: 64K bits (8192x8 bits)
- Clock frequency: 1MHz (5V); 400kHz (1.8V, 2.5V, 2.7V)
- Self-timed write cycle (5ms max)
- Page write (32 bytes/page)
- Schmitt trigger inputs for noise suppression
- 2-wire serial interface
- Hardware data write protection
- High reliability: Endurance — 1,000,000 write/erase cycles; Data retention — 100 years
