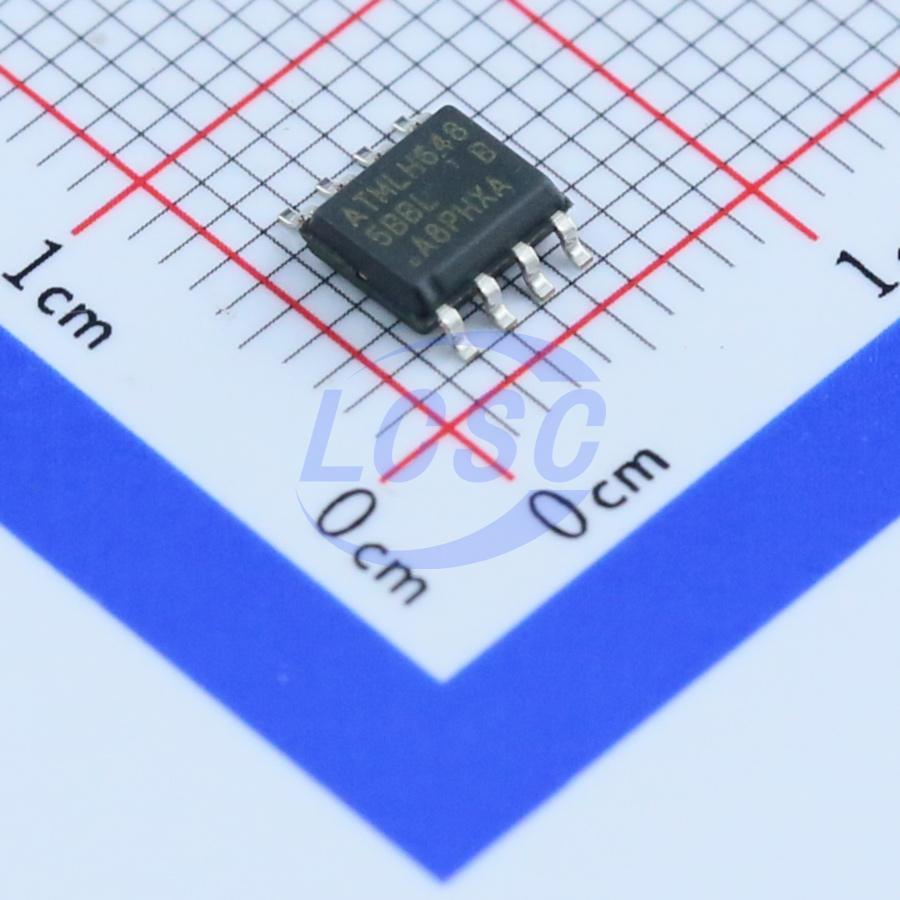

AT25320B-SSHL-T
32Kbit 20MHz SPI SOIC-8 Memory RoHS
SPI Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,908 in stock
#C81570
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.89 | ₹109.89 |
| 10+ | ₹89.82 | ₹898.20 |
| 30+ | ₹79.67 | ₹2,390.10 |
| 100+ | ₹69.74 | ₹6,974.00 |
| 500+ | ₹63.69 | ₹31,845.00 |
| 1,000+ | ₹60.67 | ₹60,670.00 |
1 × ₹109.89
₹109.89
excl. GST
₹129.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT25320B-SSHL-T
₹109.89 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in write enable latch (WEL);Page write protection function;Software write protection function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.8V~5.5V;7.5mA
- Clock Frequency
- 20MHz
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
The Atmel AT25320B/640B provides 32,768-/65,536-bits of Serial Electrically-Erasable Programmable Read-Only Memory (EEPROM) organized as 4,096/8,192 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT25320B/640B is available in space-saving 8-lead JEDEC SOIC, 8-lead TSSOP, 8-lead UDFN, 8-lead XDFN, and 8-ball VFBGA packages. The AT25320B/640B is enabled through the Chip Select pin (CS) and accessed via a 3-wire interface consisting of Serial Data Input (SI), Serial Data Output (SO), and Serial Clock (SCK). All programming cycles are completely self-timed, and no separate erase cycle is required before Write. Block Write Protection is enabled by programming the status register with one of four blocks of write protection. Separate Program Enable and Program Disable instructions are provided for additional data protection. Hardware data protection is provided via the WP pin to protect against inadvertent write attempts to the status register. The HOLD pin may be used to suspend any serial communication without resetting the serial sequence.
Key features
- Serial Peripheral Interface (SPI) Compatible Supports SPI Modes 0 (0,0) and 3 (1,1)
- Low-voltage and standard-voltage Operation 1.8V (VCC=1.8V to 5.5V)
- 20MHz Clock Rate (5V)
- 32-byte Page Mode
- Block Write Protection Protect 1/4, 1/2, or Entire Array
- Write Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection
- Self-timed Write Cycle (5ms Max)
- High Reliability Endurance: 1,000,000 Write Cycles
- Data Retention: 100 Years
- Green (Pb/Halide-free/RoHS Compliant)
- Packaging Options Die Sales: Wafer Form, Tape and Reel, and Bumped Wafers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT25320B-SSHL-B#C615491MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 37 | ₹171.33 · 37 in stock | View |
 | FT25C32A-USR-T#C7466813FMD(Fremont Micro Devices) · SOP-8 | FMD(Fremont Micro Devices) | SOP-8 | 3,355 | ₹29.25 · 3,355 in stock | View |
 | M95320-RMN6TP#C140884ST · SOIC-8 | ST | SOIC-8 | 237 | ₹63.03 · 237 in stock | View |
 | M95320-DRMN3TP/K#C2971252ST · SO-8-150mil | ST | SO-8-150mil | 16 | ₹99.97 · 16 in stock | View |
| AT25320AN-10SI-1.8#C19340450MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | On request | Price on request | Quote | |
