MICROCHIP

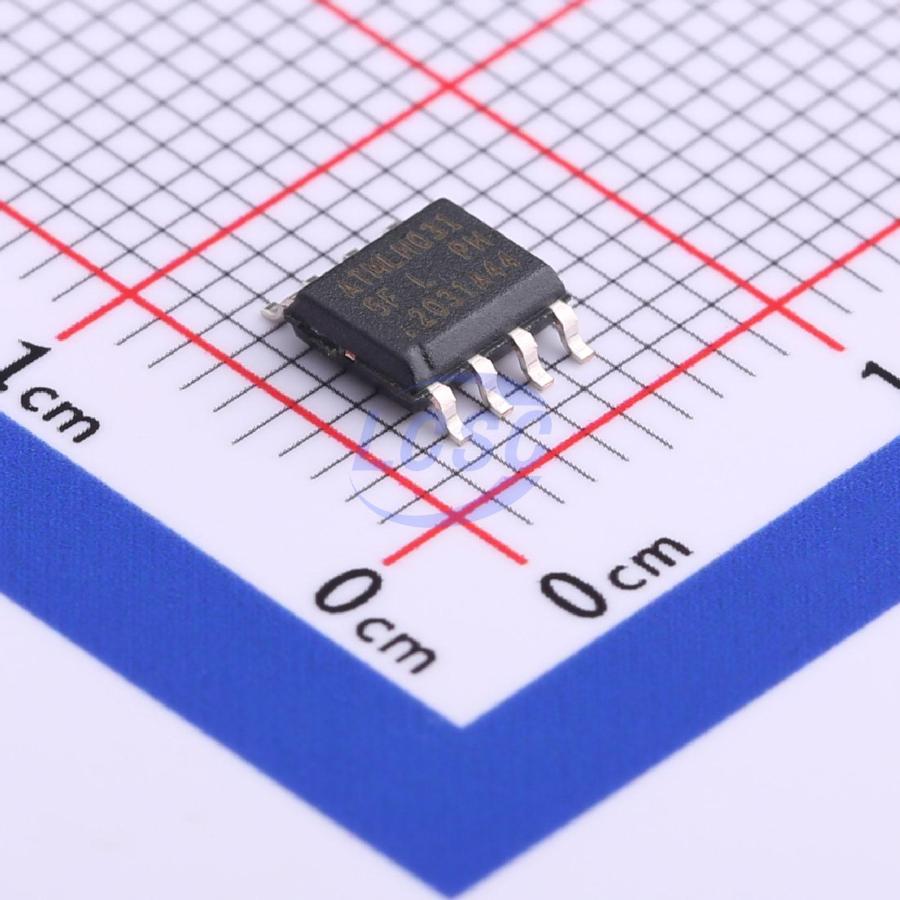

AT25512N-SH-T
512Kbit 20MHz SPI SOIC-8 Memory RoHS
SOIC-8ROHS3 CompliantActive
512 Kbits Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,419 in stock
#C779669
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹335.42 | ₹335.42 |
| 10+ | ₹284.68 | ₹2,846.80 |
| 30+ | ₹253.02 | ₹7,590.60 |
| 100+ | ₹220.73 | ₹22,073.00 |
| 500+ | ₹205.98 | ₹1,02,990.00 |
| 1,000+ | ₹199.69 | ₹1,99,690.00 |
1 × ₹335.42
₹335.42
excl. GST
₹395.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT25512N-SH-T
₹335.42 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in write enable latch (WEL)
- Memory Size
- 512Kbit
- Voltage - Supply
- 1.8V~5.5V;9mA
- Clock Frequency
- 20MHz
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
The AT25512 provides 524,288 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 65,536 words of 8 bits each. The device is optimized for use in many industrial and commercia
Key features
- Serial Peripheral Interface (SPI) Compatible
- Supports SPI Modes 0 (0,0) and 3 (1,1): – Data sheet describes mode 0 operation
- Low-Voltage Operation: – 1.8V (ΔVCC = 1.8V to 5.5V)
- Industrial Temperature Range: -40℃ to +85℃
- 20 MHz Clock Rate (5V)
- 128‑Byte Page Mode
- Block Write Protection: – Protect 1/4, 1/2 or entire array
- Write-Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection
- Self-Timed Write Cycle within 5 ms Maximum
- ESD Protection > 4,000 V
- High Reliability: – Endurance: 1,000,000 write cycles – Data retention: 100 years
- Green (Lead-free/Halide-free/RoHS Compliant) Package Options
- Die Sale Options: Wafer Form and Bumped Wafers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT25512N-SH-B#C68030MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 84 | ₹415.36 · 84 in stock | View |
 | 25AA512-I/SN#C219767MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 310 | ₹490.66 · 310 in stock | View |
 | 25AA512T-I/SN#C2653531MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 463 | ₹453.58 · 463 in stock | View |
 | CAT25512VI-GT3#C146783onsemi · SOIC-8 | onsemi | SOIC-8 | 3,073 | ₹84.54 · 3,073 in stock | View |
| BR25H512FJ-5ACE2#C7086534ROHM · SOIC-8 | ROHM | SOIC-8 | 44 | ₹262.02 · 44 in stock | View | |
