AT8313QNR
8V~35V QFN-36 Motor Drivers, Controllers RoHS

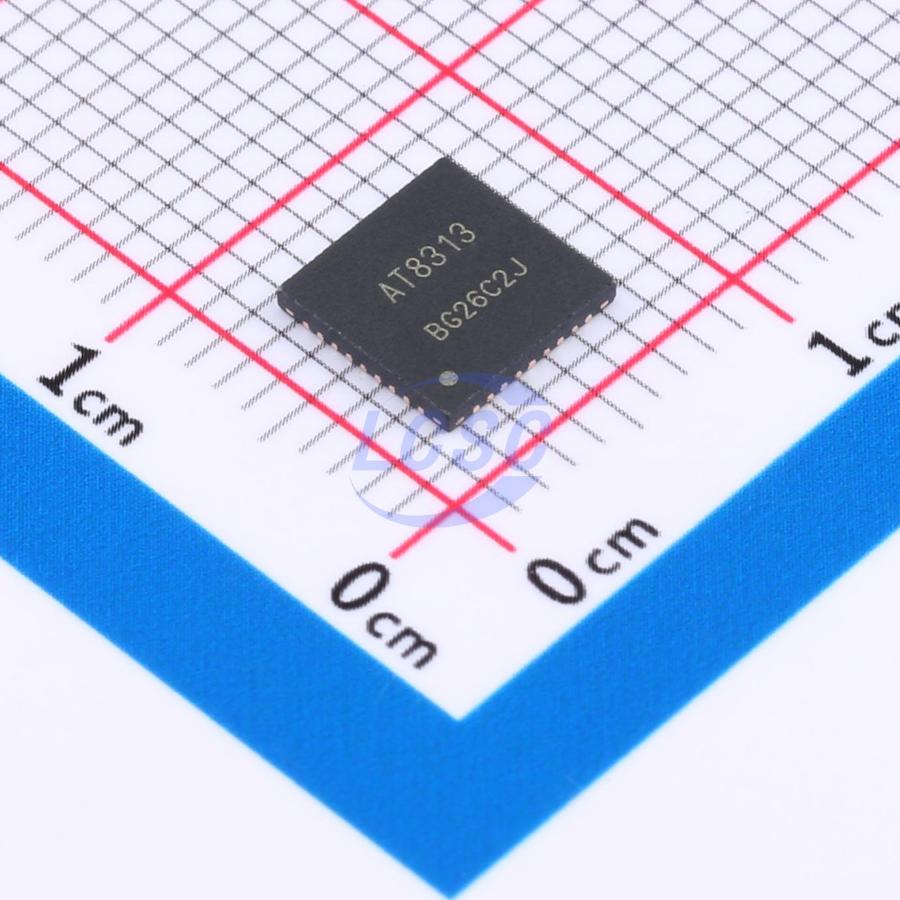

2.5A three-channel half-bridge integrated driver chip
- Manufacturer
- ZHONGKEWEI
- Manufacturer part #
- AT8313QNR
- Store part #
- C5296869
- Package / case
- QFN-36
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,375 in stock
#C5296869
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹158.05 | ₹158.05 |
| 10+ | ₹132.21 | ₹1,322.10 |
| 30+ | ₹118.10 | ₹3,543.00 |
| 100+ | ₹102.04 | ₹10,204.00 |
| 500+ | ₹82.94 | ₹41,470.00 |
| 1,000+ | ₹79.68 | ₹79,680.00 |
1 × ₹158.05
₹158.05
excl. GST
₹186.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AT8313QNR
₹158.05 for 1 + GST
Specifications
- Drive Type
- Three Phase
- Features
- Interleaved conduction protection;Motor stall protection;Motor speed indication;Soft switching
- Technology
- Yes
- Voltage - Supply
- 8V~35V
- Interface
- PWM
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 350uA
- Output Current
- 2.5A
- Peak Current
- 2.5A
- Number of Half Bridges
- 3
- RDS(on)
- 450mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The AT8313 provides three independently controllable half H-bridge drivers. Each half H-bridge can deliver a peak output current of 2.5A or an RMS current of 1.75A, capable of driving a three-phase BLDC motor or other inductive loads such as solenoids. Each half H-bridge output stage consists of two N-type power MOSFETs, with a ground terminal that supports an external current-sense resistor for output current measurement. The AT8313 integrates a general-purpose comparator for output current limiting. Internal protection features include overcurrent protection, short-circuit protection, UVLO, and over-temperature protection, with a dedicated fault detection output pin. The AT8313 is available in two SMD packages, both with an exposed thermal pad for enhanced thermal dissipation: QFN36 (6mm×6mm) and ETSSOP28 (9.7mm×4.4mm). Both packages are lead-free and RoHS compliant.
Applications
- HVAC motors
- Consumer products
- Office automation equipment
- Factory automation
- Robotics
Key features
- Three half H-bridge motor drivers
- Drives three-phase BLDC motors
- Independent half-bridge control
- Three independent ground pins for current sensing
- Low RDS(ON) resistance, 0.45Ω (HS + LS)
- 2.5A drive output
- Wide supply voltage range, 8V - 35V
- One general-purpose comparator for current limiting
- Built-in 3.3V 10mA reference voltage output
- Over-temperature protection
- Short-circuit protection
- Under-voltage lockout protection
