ZHONGKEWEIDatasheet (PDF)

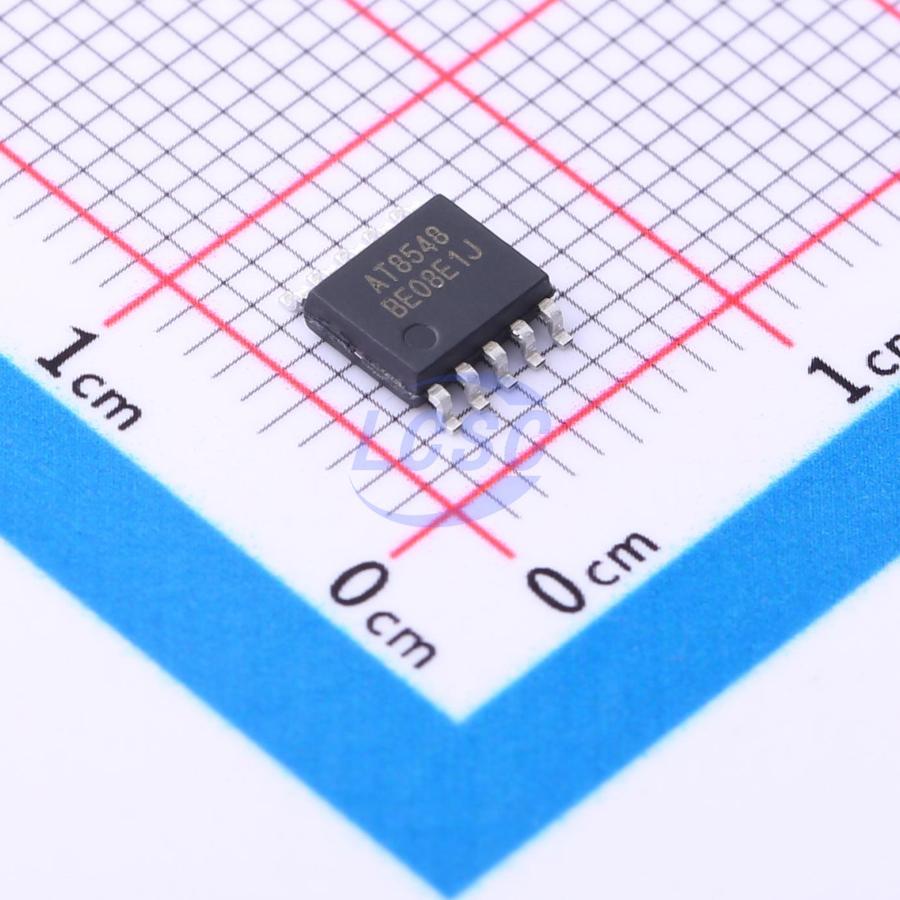

AT8548
SSOP-10-150mil Motor Drivers, Controllers RoHS
SSOP-10-150milROHS CompliantActive
Dual-channel H-bridge motor driver chip
- Manufacturer
- ZHONGKEWEI
- Manufacturer part #
- AT8548
- Store part #
- C2905294
- Package / case
- SSOP-10-150mil
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,515 in stock
#C2905294
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.05 | ₹180.25 |
| 50+ | ₹31.86 | ₹1,593.00 |
| 150+ | ₹30.06 | ₹4,509.00 |
| 500+ | ₹23.87 | ₹11,935.00 |
| 2,500+ | ₹22.86 | ₹57,150.00 |
| 4,000+ | ₹22.27 | ₹89,080.00 |
5 × ₹36.05
₹180.25
excl. GST
₹212.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT8548
₹180.25 for 5 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Over temperature protection;Under-voltage lockout;Power-on reset
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Step Resolution
- 1;2
- Output Current
- 800mA
- Control Voltage
- 2.7V~12V
- RDS(on)
- 1.06Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.125 g
Overview
AT8548 provides a dual-channel motor drive solution for toys, printers, and other mechatronic applications. The AT8548 integrates two H-bridge drivers capable of driving two brushed DC motors, or driving a single brushed DC motor via paralleled outputs, or a bipolar stepper motor, or solenoids and other inductive loads.
Applications
- POS printers
- Security cameras
- Office automation equipment
- Gaming consoles
- Robots
Key features
- Dual-channel H-bridge motor driver
- Drives two brushed DC motors or one stepper motor
- Low RDS(ON) resistance, 1.06Ω (HS + LS)
- 1A drive output
- Parallel output capable, 2A drive output
- Single supply voltage, 2.7V - 15V
- Over-temperature shutdown circuit
- Under-voltage lockout protection
