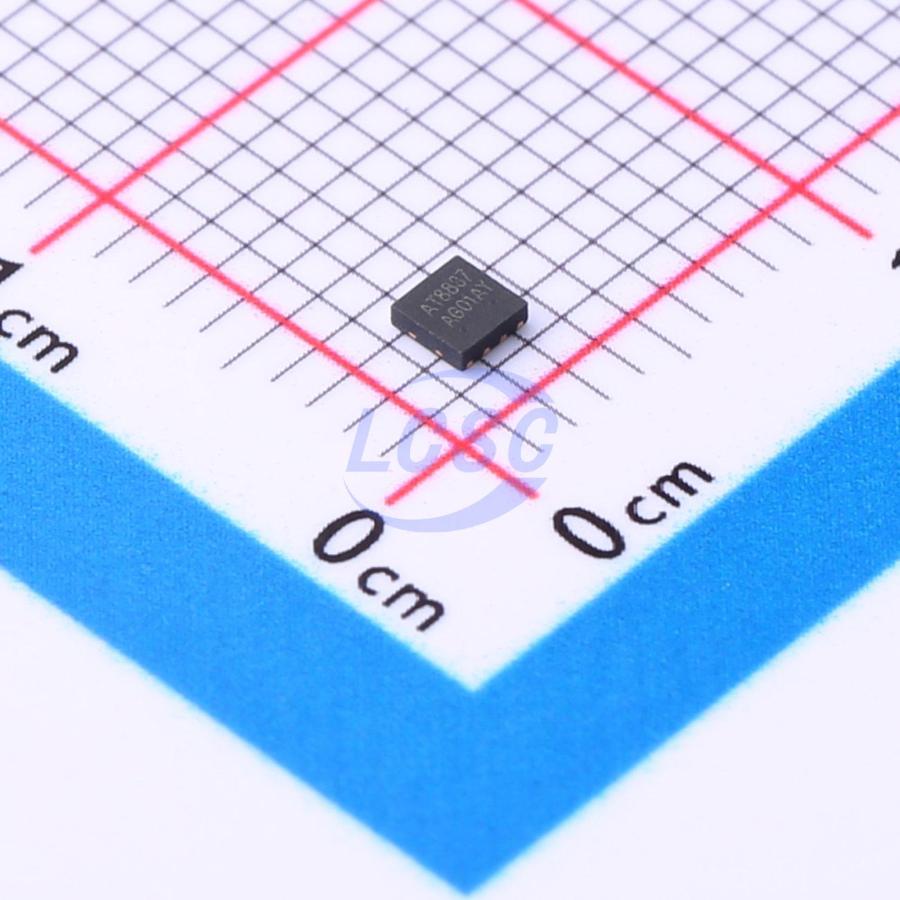

AT8837
UDFN-8-EP(2x2) Motor Drivers, Controllers RoHS
Low-voltage H-bridge motor driver IC
- Manufacturer
- ZHONGKEWEI
- Manufacturer part #
- AT8837
- Store part #
- C2901459
- Package / case
- UDFN-8-EP(2x2)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,690 in stock
#C2901459
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.18 | ₹105.90 |
| 50+ | ₹16.80 | ₹840.00 |
| 150+ | ₹14.94 | ₹2,241.00 |
| 500+ | ₹12.59 | ₹6,295.00 |
| 3,000+ | ₹10.25 | ₹30,750.00 |
| 6,000+ | ₹9.62 | ₹57,720.00 |
5 × ₹21.18
₹105.90
excl. GST
₹124.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AT8837
₹105.90 for 5 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5mA
- Output Current
- 800mA
- Peak Current
- 1.5A
- RDS(on)
- 1.05Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
AT8837 provides an integrated motor driver solution for cameras, smart door locks, toys, and other low-voltage or battery-powered applications. The AT8837 can drive one DC brushed motor or inductive load such as a solenoid, delivering up to 1A of drive current. The device operates over a supply voltage range of 2.7 - 12V and incorporates comprehensive protection features including overcurrent, short circuit, over-temperature, and undervoltage lockout. The AT8837 features a PWM (IN1/IN2) input interface. The AT8837 is offered in a DFN-8 (2mm * 2mm) package with an exposed pad, is lead-free, and complies with environmental requirements.
Applications
- Cameras
- Consumer products
- Toys
- Robotics
- Smart door locks
Key features
- Single H-bridge driver
- Drives one brushed DC motor or other inductive load
- Low RDS(ON): 1.05Ω (HS + LS)
- 1A continuous output current
- Wide supply voltage range: 2.7 - 12V
- Low-power sleep mode controlled by nSLEEP pin
- Overcurrent protection
- Thermal shutdown
- Short-circuit protection
- UVLO protection
