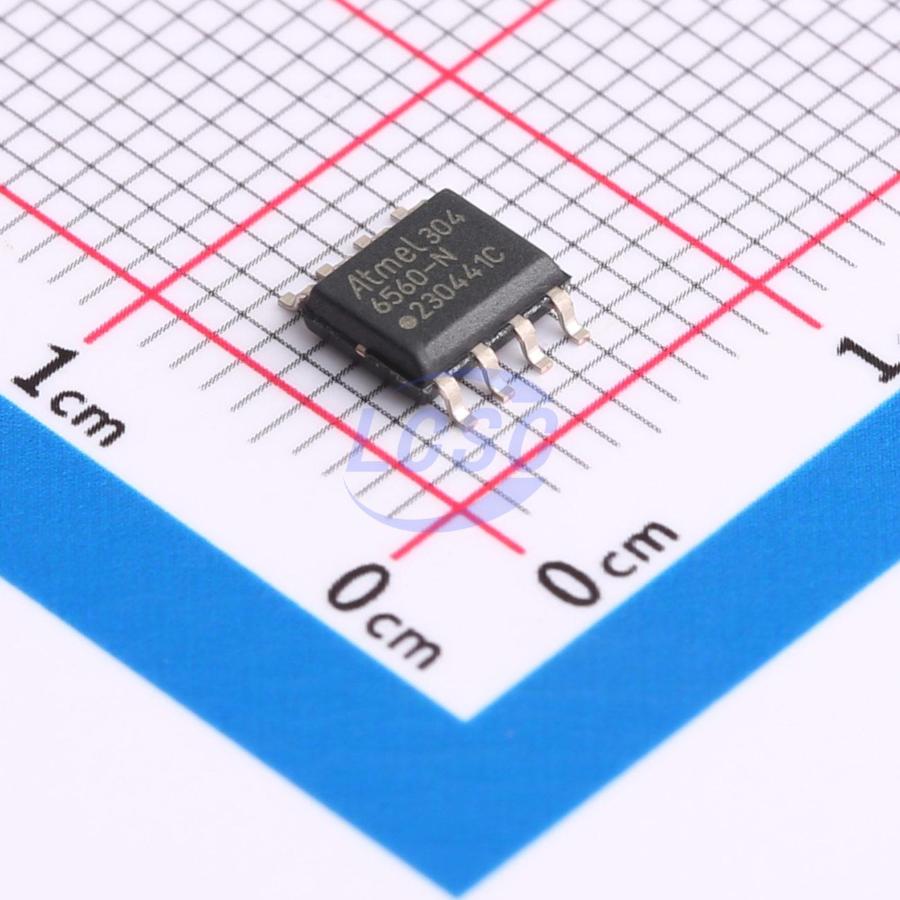

ATA6560-GAQW-N

The ATA6560/1 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed (up to 5 Mbps) CAN applications in the automotive industry, providing differential transmit and receive capability to (a microcontroller with) a CAN protocol controller. It offers improved Electromagnetic Compatibility (EMC) and ESD performance, as well as features such as: - Ideal passive behavior to the CAN bus when the supply voltage is off - Direct interfacing to microcontrollers with supply voltages from 3V to 5V (ATA6561) Three operating modes, together with the dedicated fail-safe features, make the ATA6560/1 an excellent choice for all types of high-speed CAN networks, especially in nodes requiring a Low-Power mode with wake-up capability via the CAN bus.

Applications

• Classical CAN and CAN FD networks in the following applications:
• Automotive
• Industrial
• Medical
• Consumer

Key features

• Fully ISO 11898-2, ISO 11898-5, and SAE J2284 Compliant
• CAN FD Ready
• Communication Speed up to 5 Mbps
• Low Electromagnetic Emission (EME) and High Electromagnetic Immunity (EMI)
• Differential Receiver with Wide Common-Mode Range
• ATA6560: Silent Mode (Receive Only)
• Remote Wake-Up Capability via CAN Bus
• Functional Behavior Predictable under All Supply Conditions
• Transceiver Disengages from the Bus when Not Powered Up
• RXD Recessive Clamping Detection
• High Electrostatic Discharge (ESD) Handling Capability on the Bus Pins
• Bus Pins Protected Against Transients in Automotive Environments
• Transmit Data (TXD) Dominant Time-Out Function
• Undervoltage Detection on VCC and VIO Pins
• CANH/CANL Short-Circuit and Overtemperature Protected
• Qualified According to AEC-Q100: Only ATA6560-GAQW, ATA6560-GBQW, ATA6561-GAQW, and ATA6561-GBQW
• Packages: SOIC8, VDFN8 with Wettable Flanks (Moisture Sensitivity Level 1)
