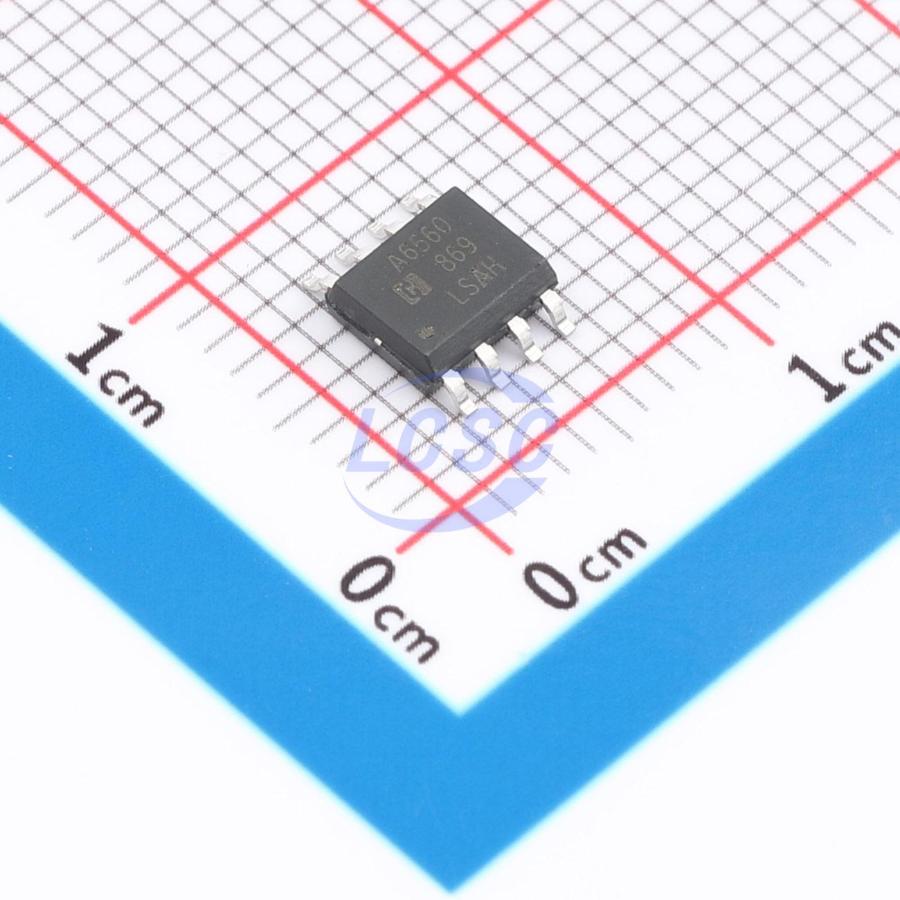

ATA6560M/TR-HG

The ATA656x high-speed CAN transceivers provide an interface between a CAN protocol controller and the physical two-wire CAN bus. The transceivers are designed for high-speed CAN applications in the automotive industry, providing differential transmit and receive capability for CAN protocol controllers. The ATA656x features improved EMC and ESD performance, along with the following characteristics: - Ideal passive behavior on the CAN bus when supply voltage is off - Ultra-low current standby mode with bus wake-up capability - Models with VIO pin allow direct connection to microcontrollers operating at 3.3V to 5V supply voltage The ATA656x implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5. This implementation enables reliable communication at data rates up to 5Mbps during the CAN FD fast phase. These CAN transceivers comply with the ISO 11898-2 (2016) high-speed CAN physical layer standard. They are designed for CAN FD data rates exceeding 1 Mbps and for enhanced timing margin/higher data rates in long-distance and high-load networks. These devices offer numerous protection features to enhance the robustness of both the device and the CAN network.

Applications

• All devices support high-load CAN networks
• Industrial automation, control, sensor, and drive systems
• Building, security, and climate control automation
• Telecom base station status and control

Key features

• Compliant with ISO 11898-2:2016 and ISO 11898-5:2007 physical layer standards
• Supports Classic CAN and CAN FD
• I/O voltage range supports 3.3V and 5V MCU
• Ideal passive behavior when unpowered
• ±15kV ESD protection
• ±70V bus fault protection
• VCC and VIO supply undervoltage protection
• Driver dominant timeout
• Thermal shutdown protection
• Receiver common-mode input voltage: ±30V
• Available in SOP-8, MSOP-8, and DFN-8 3x3 packages
