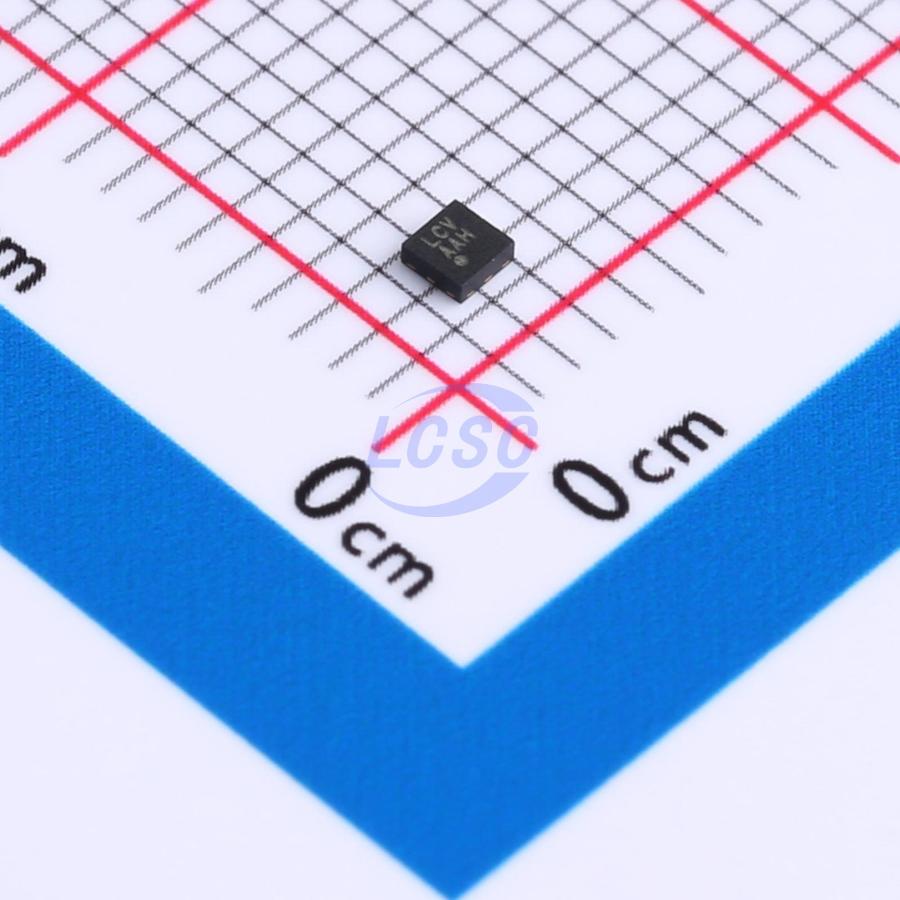

AW8010BFCR

The AW8010B is a ultra-low-EMI, RNS, mono, filter-free, Class-D audio amplifier. Unique RNS, which effectively reduces RF energy, attenuate the RF TDD-noise, an acceptable audible level to the customer. The AW8010B features the EEE (Enhanced Emission Elimination) function which greatly reduces EMI over the full bandwidth. The AW8010B achieves better than 20dB margin under FCC limits with 24 inch of cable. The filter-free PWM architecture and internal gain setting reduces external components count, board area consumption, system cost and simplifies the design. In addition, The AW8010B offers efficiencies above 90%. The over-current and over-temperature is prepared inside of the device. The AW8010B is available in an ultra small FCQFN 1.5mm×1.5mm×0.55mm.9[ package. The AW8010B is specified over the industrial temperature range of -40°C to +85°C.

Applications

• Cellular Phones
• MP3/PMP GPS
• Digital Photo Frame

Key features

• EEE Function, Greatly reduces EMI over the full bandwidth
• Excellent Pop-Click Suppression
• RNS (RF-TDD Noise Suppression)
• 0.008% THD+N （Pout=0.4W, VDD=4.2V）
• Filter-Free Class-D Architecture
• Up to 90% Efficiency
• High PSRR (75dB at 217Hz)
• Low Quiescent Current (2.8mA)
• Low Shutdown Current (<0.1μA)
• Power Supply Range: 2.5V~5.5V
• Over-Current Protection
• Over-Temperature Protection
• Small FCQFN 1.5mmX1.5mm-9L Package
• RoHS compliant, lead-free packages
