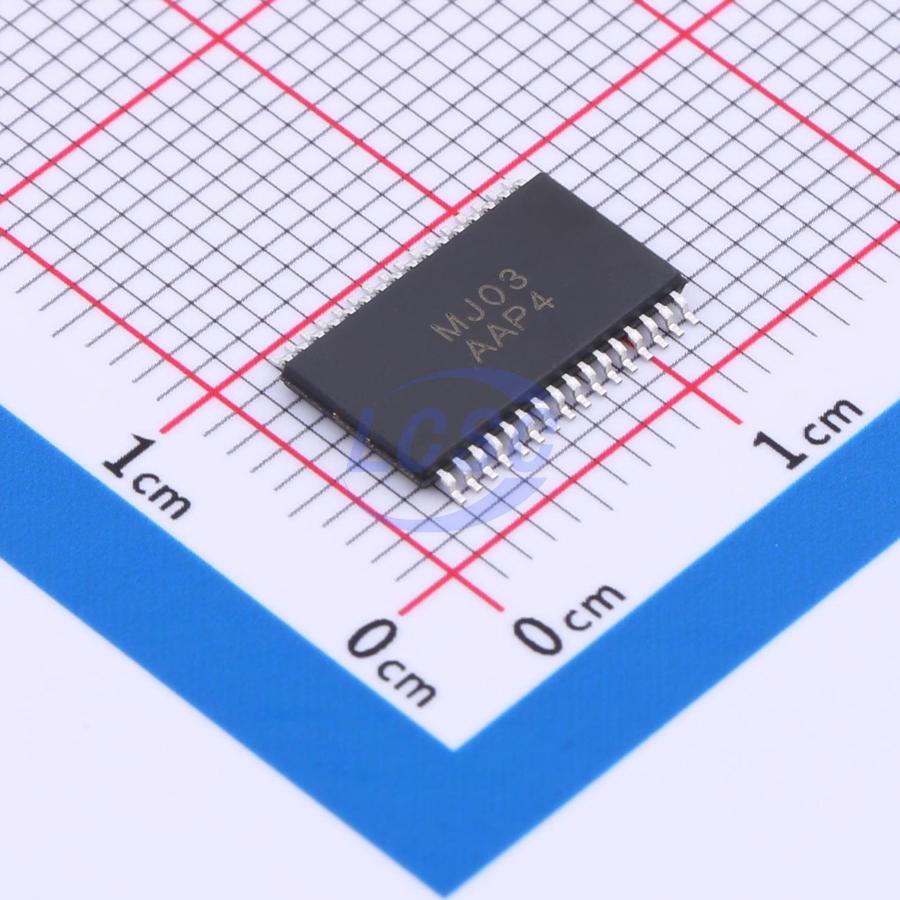

AW83118TSR

AW83118 is a stereo efficient, Class-D audio power amplifier for driving speakers up to 60W/4Ω in PBTL mode. It can run 2×30W/8Ω without heat sink on a dual layer PCB. In Low-Loss mode, it consumes a low idle current, allowing for longer audio play and improved thermal performance in Speaker bar and Consumer Audio applications. The AW83118 advanced oscillator/PLL circuit employs a multiple switching frequency option to avoid AM interferences; this is achieved together with an option of Master/Slave mode, making it possible to synchronize multiple devices. The AW83118 built-in over-voltage, under-voltage protection, DC protection, thermal protection and short-circuit protection, effectively prevent it from being damaged. AW83118 is available in ETSSOP 11mm×8.1mm32L package. The AW83118 device is a highly efficient and highly integrated Class D audio amplifier. The amplifier is designed for driving 60W/4Ω speakers in PBTL mode, and driving 2×30W/8Ω speakers in dual channel BTL mode under 4.5~26V PVCC supply voltage.

Applications

• Speaker bar
• After-market automotive
• CRT TV
• Consumer Audio Applications

Key features

• Wide Voltage Range: 4.5V - 26V
• Output Power: BTL mode: 2×30W@8Ω, 24V, THD+N<1%; PBTL mode: 1×60W@4Ω, 24V, THD+N<1%
• Low THD+N: 0.03% at 1W, 1kHz input, 8Ω
• 17mA Idle Current in Low-Loss Mode
• Overall efficiency up to 94%
• Multiple switching frequencies AM avoidance
• Master/Slave synchronization
• Up to 1.2MHz switching frequency
• Programmable Power Limit
• Support Spread Spectrum to Enhance EMI Performance
• Support parallel BTL Mode and MONO Mode
• Integrated self-protection: over-voltage, undervoltage, over-temperature, DC-detect and shortcircuit protection
• ETSSOP 11mm×8.1mm -32L Package
