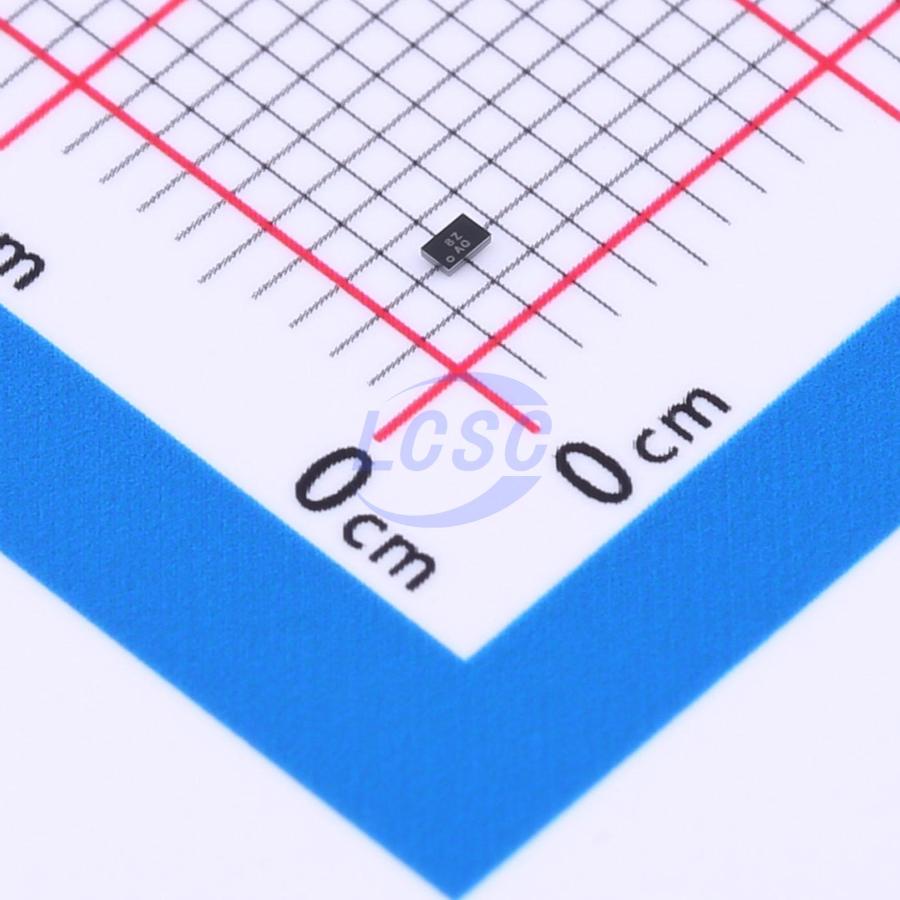

AW8601CSR

This product is a bidirectional voice coil motor driver IC with an integrated 10-bit DAC. The maximum output current is ±100 mA, with an operating voltage range of 2.3 V to 5 V. The device is controlled via an I2C serial interface with a maximum operating frequency of 1 MHz. The device address is 0x18 (7-bit address 0x0c), which can be changed at the factory. The product includes a VRC mode that allows programmable configuration of the output current waveform to minimize mechanical vibration and accommodate different types of voice coil motors. The product incorporates a power-on reset circuit and a power-down function. The reset circuit ensures proper operation of the digital circuitry during power-on. In power-down mode, supply current consumption is less than 1 μA. The product is suitable for autofocus applications in mobile cameras, digital cameras, camcorders, webcams, and action cameras. The product is available in a WLCSP 0.73 mm × 1.13 mm × 0.30 mm -6B package.

Applications

• Mobile cameras
• Digital cameras
• Camcorders
• Security cameras
• Webcams
• Micro motors

Key features

• 2.3V to 5V power supply
• VCM driver for auto-focus
• ±100 mA current sink capability
• Low quiescent current
• 10-bit resolution DAC
• VRC mode support
• 2-wire I2C serial interface, clock rate up to 1 MHz (1.8V interface compatible)
• Power-down mode current consumption less than 1 μA
• Thermal shutdown protection
• Power-on reset function
• Compact 0.4 mm pitch WLCSP package, dimensions 0.73 mm × 1.13 mm × 0.30 mm - 6B
