AWINIC(Shanghai Awinic Tech)

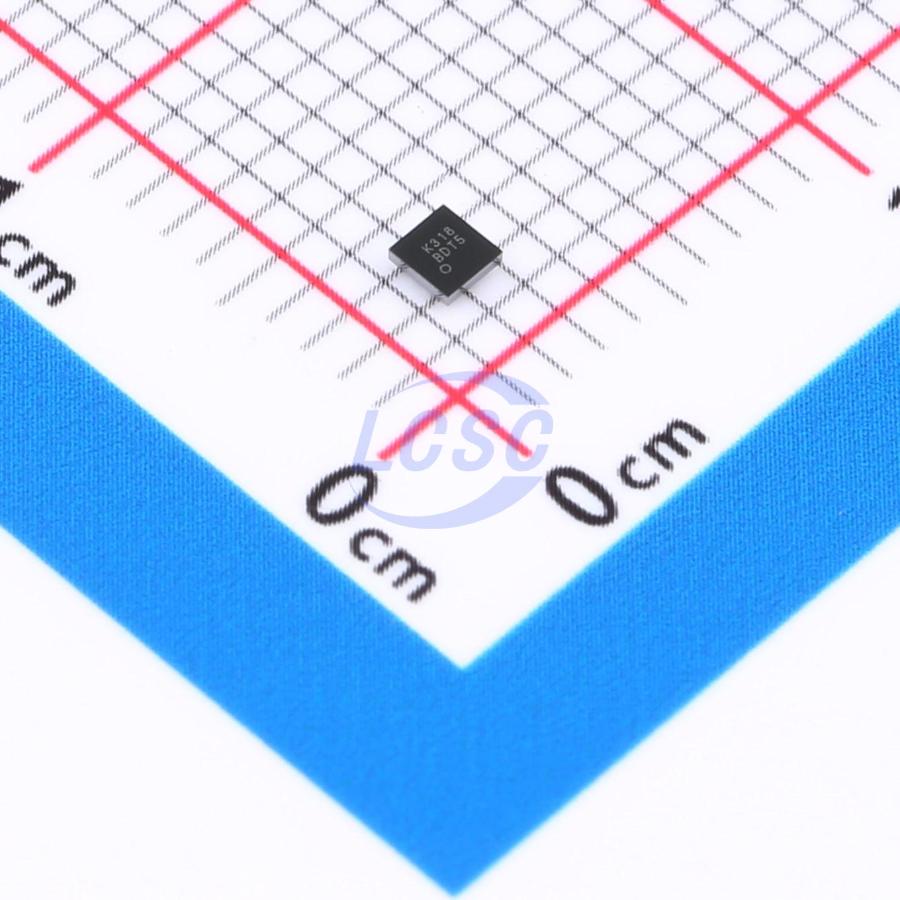

AW87318CSR

3V~5.5V 10mA 1-Channel Class K CSP-14 Audio Amplifiers RoHS

CSP-14ROHS CompliantActive

High efficiency、Low noise、Constant large volume、Multi-level AGC Eighth generation Class K Audio Amplifier

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW87318CSR
Store part #: C164099
Package / case: CSP-14
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,138 in stock

#C164099

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹53.44	₹53.44
10+	₹47.15	₹471.50
30+	₹44.43	₹1,332.90
100+	₹41.08	₹4,108.00
500+	₹36.67	₹18,335.00
1,000+	₹35.84	₹35,840.00

Quantity (min 1)

1 × ₹53.44

₹53.44

excl. GST

₹63.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AW87318CSR

₹53.44 for 1 + GST

Specifications

Voltage - Supply: 3V~5.5V
Quiescent Current: 10mA
Features: Filterless architecture;Built-in audio processing;Enable/shutdown function;ESD protection;Overvoltage protection;Automatic mute/no-noise switch
Total Harmonic Distortion + Noise (THD+N): 0.008%
Operating Temperature: -40℃~+85℃
Number of Inputs: 1 Pair Differential Inputs
Signal-to-Noise Ratio: 98.8dB
Speaker Channels: 1-Channel
Efficiency: 83%
Class: Class K
Power Supply Rejection Ratio (PSRR): -68dB

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.069 g

Overview

AW87318 is specifically designed to eliminate smart mobile phone music noise, to enhance overall sound quality, which is a new high efficiency, low noise, ultra-low distortion, constant large volume, upgrading eighth generation class K audio amplifiers. AW87318 integrated proprietary multi-level AGC audio algorithm, effectively eliminate music noise, improve sound quality and volume. Using a new generation K-Chargepump technology, efficiency reaches 93%, power amplifier’s overall efficiency reaches 83%, greatly prolong the mobile phone usage time. AW87318 noise floor is as low as to 43uV, with 98.8dB high signal-to-noise-ratio(SNR). The ultra-low distortion 0.008% and unique multi-level AGC technology brings high quality music enjoyment. AW87318 has 0.6W,0.7W,0.8W,0.9W,1W,1.1W and 1.2W seven subdivision selectable speaker-guard output power levels, which is suitable for different rated power speakers. With multi-level AGC audio algorithms, the music is pure natural and melodious. Within lithium battery voltage range (3.3V--4.35V), output power is constant, preventing voice becomes smaller and smaller during usage of cell phone. AW87318 supports speaker and receiver two-in-one application. In receiver mode, the output noise is as low as to 19uV, amplifier is in class D mode, powered by VBAT. AW87318 has built-in over current protection, over-temperature protection and short circuit protection function, effectively protect the chip. AW87318 uses small 0.4mm pitch 1.6mmx1.68mm CSP-14 package.

Applications

Smart phone

Key features

Multi-Level AGC audio algorithm, effectively eliminate noise, make sound pure natural
Low noise: 43uV
Ultra-low distortion: 0.008%
Power amplifier overall efficiency is up to 83%
Speaker and Receiver two-in-one application
Selectable speaker-guard power level: 0.6W, 0.7W, 0.8W, 0.9W, 1W, 1.1W, 1.2W
Within Lithium battery voltage range, maintained constant large volume
Support 6ohm speaker
Compatible with AW8736, AW8737
Super TDD-Noise suppression
Excellent pop-click suppression
One wire pulse control
High PSRR: -68dB (217Hz)
ESD protection: ±6kV (HBM)
Small 0.4mm pitch 1.6mm×1.68mm CSP-14 package
