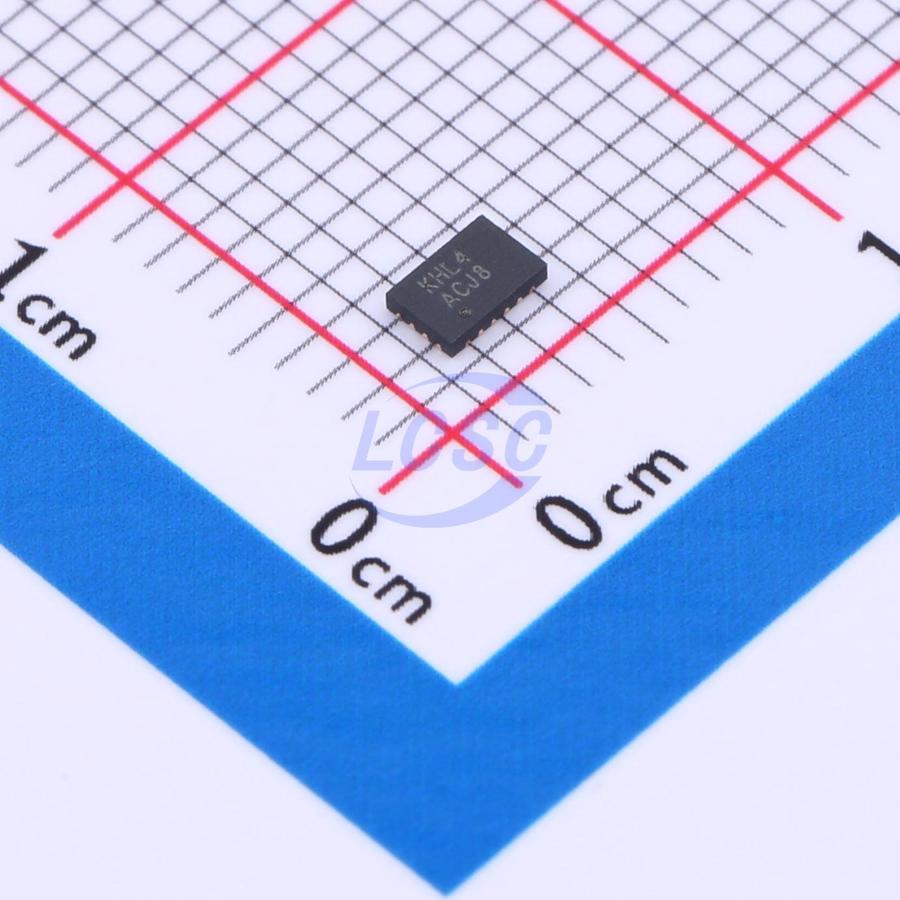

AW87559FCR

2.8V~5.5V 6.8mA 4.75W×1@8Ω Class D FCQFN-20L(2x3) Audio Amplifiers RoHS

FCQFN-20L(2x3)ROHS CompliantActive

9V Adaptive Boost High Efficiency High PSRR Low Noise Large Volume 2-in-1 TLTR-AGC 5th Generation Smart K Audio Amplifier

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW87559FCR
Store part #: C5125865
Package / case: FCQFN-20L(2x3)
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,749 in stock

#C5125865

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹114.48	₹114.48
10+	₹97.13	₹971.30
30+	₹88.47	₹2,654.10
100+	₹80.02	₹8,002.00
500+	₹72.21	₹36,105.00
1,000+	₹69.60	₹69,600.00

Quantity (min 1)

1 × ₹114.48

₹114.48

excl. GST

₹135.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 6,000 per reel

AW87559FCR

₹114.48 for 1 + GST

Specifications

Voltage - Supply: 2.8V~5.5V
Quiescent Current: 6.8mA
Features: Filterless architecture;Built-in audio processing;Digitally programmable gain;Enable/shutdown function;Automatic mute/no-noise switch
Total Harmonic Distortion + Noise (THD+N): 0.012%
Operating Temperature: -40℃~+85℃
Signal-to-Noise Ratio: 103dB
Output Power: 4.75W×1@8Ω
Efficiency: 85%;82%
Class: Class D
Power Supply Rejection Ratio (PSRR): 82dB

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 6,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.028 g

Overview

Triple-Level Triple-Rate AGC algorithm to effectively eliminate noise, pure sound quality. Half wave modulation. High efficiency large drive ability. Adaptive Boost. The output voltage: 9.0V Overall efficiency up to 85% Maximum output Power: 4.75W@8Ω Support External VBST Application High PSRR: 82dB (217Hz) Low noise: 45μV (K Speaker @THD+N = 0.012%) 19μV (D Receiver @908 THD+N = 0.013%) 11μV (D Receiver @0dB THD+N = 0.015%) Selectable speaker-guard power level: 0.5W~2W@8ohm, 100mW/step Speaker & receiver 2-in-1 mode application Battery tracking AGC selectable, for low voltage protection Shutdown current: 0.1μA Quiescent current: 6.8mA@3.6V Super TDD-Noise suppression Excellent pop-click suppression Excellent full bandwidth EMI suppression Support 1.8V logic I²C control FCQFN 2.0mm X 3.0mm X 0.55mm-20L package
