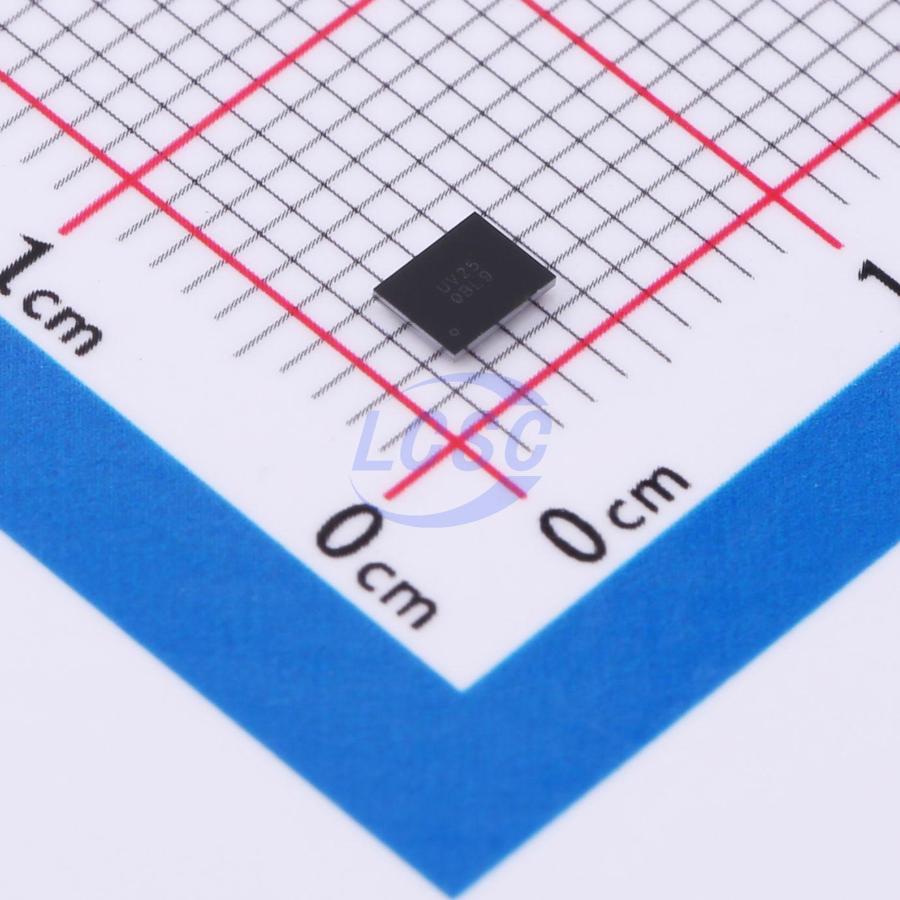

AW88194ACSR
3V~5.5V 5.3Wx1@8Ω Class D WLCSP-42-B(2.5x3.2) Audio Amplifiers RoHS
I²S/TDM Input, BOOST Digital Smart K Audio Amplifier with Integrated SKTune Algorithm
- Manufacturer
- AWINIC(Shanghai Awinic Tech)
- Manufacturer part #
- AW88194ACSR
- Store part #
- C5162541
- Package / case
- WLCSP-42-B(2.5x3.2)
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,779 in stock
#C5162541
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.31 | ₹102.31 |
| 10+ | ₹92.69 | ₹926.90 |
| 30+ | ₹87.36 | ₹2,620.80 |
| 100+ | ₹81.59 | ₹8,159.00 |
| 500+ | ₹74.97 | ₹37,485.00 |
| 1,000+ | ₹73.69 | ₹73,690.00 |
1 × ₹102.31
₹102.31
excl. GST
₹120.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 6,000 per reel
AW88194ACSR
₹102.31 for 1 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Features
- Built-in audio processing;Automatic mute/no-noise switch;Digitally programmable gain;Overvoltage protection
- Total Harmonic Distortion + Noise (THD+N)
- 0.02%
- Operating Temperature
- -40℃~+85℃
- Signal-to-Noise Ratio
- 108dB
- Output Power
- 5.3Wx1@8Ω
- Efficiency
- 88%;82%
- Class
- Class D
- Power Supply Rejection Ratio (PSRR)
- -85dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 6,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.085 g
Overview
Integrates SKTune Algorithm ■ Parametric audio path equalizer ■ Dynamic range control ■ Anti-clip voltage limiter ■ Speaker protection Smart BOOST with total efficiency up to 90% High RF noise suppression, eliminate the TDD noise completely - Low noise: 12uV - THD +N : 0.02% - Supports 6Ω Speaker - Extensive Pop-Click Suppression - Volume control(from -96dB to 0dB) I2S/TDM interface： ■ I2S, Left-Justified and Right-Justified ■ Supports four slots TDM ■ Input Sample Rates from 8kHz to 96kHz ■ Data Width: 16, 20, 24, 32 Bits I2C-bus control interface(400kHz) Power Supplies： ■ VDD：3.0V-5.5V ■ DVDD: 1.65V~1.95V Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection WLCSP 2.48X3.17-42B package
Applications
- Mobile phones
- Tablets
- Portable Audio Devices
Key features
- Integrates SKTune Algorithm
- Parametric audio path equalizer
- Dynamic range control
- Anti-clip voltage limiter
- Speaker protection
- Smart BOOST with total efficiency up to 90%
- High RF noise suppression, eliminate the TDD noise completely
- Low noise: 12uV
- THD +N : 0.02%
- Supports 6Ω Speaker
- Extensive Pop-Click Suppression
- Volume control(from -96dB to 0dB)
- I2S/TDM interface: I2S, Left-Justified and Right-Justified
- Supports four slots TDM
- Input Sample Rates from 8kHz to 96kHz
- Data Width: 16, 20, 24, 32 Bits
- I2C-bus control interface(400kHz)
- Power Supplies: VDD：3.0V-5.5V；DVDD: 1.65V~1.95V
- Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection
- WLCSP 2.48X3.17-42B package
