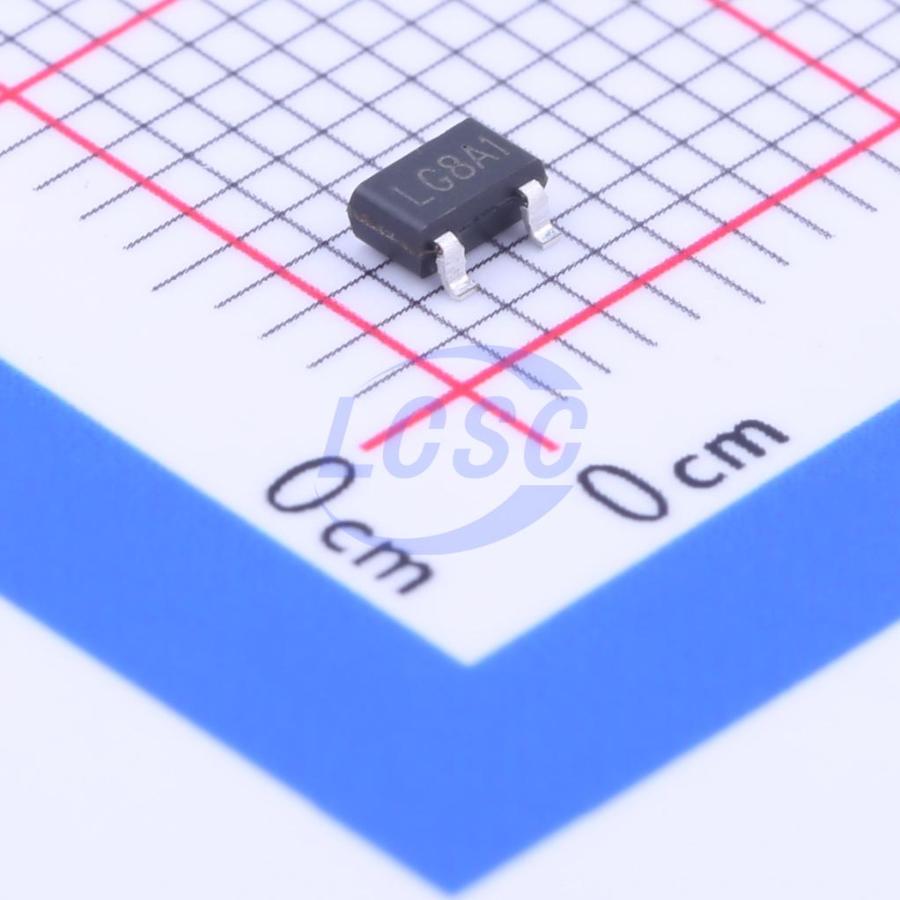

AX6601-18RA
1.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSSold out at source
300mA Low Dropout (LDO) Linear Regulator
- Manufacturer
- Axelite Tech
- Manufacturer part #
- AX6601-18RA
- Store part #
- C224227
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,605 in stock
#C224227
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.74 | ₹83.70 |
| 50+ | ₹13.26 | ₹663.00 |
| 150+ | ₹11.76 | ₹1,764.00 |
| 500+ | ₹9.90 | ₹4,950.00 |
| 2,500+ | ₹9.06 | ₹22,650.00 |
| 5,000+ | ₹8.57 | ₹42,850.00 |
5 × ₹16.74
₹83.70
excl. GST
₹98.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AX6601-18RA
₹83.70 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 90uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The AX6601 is a 300mA, fixed output voltage, low dropout linear regulator. The Device includes pass element, error amplifier, band-gap, current-limit, and thermal shutdown circuitry. The characteristics of low dropout voltage and less quiescent current make it good for some critical current application, for example, some battery powered devices. The typical quiescent current is approximately 90μA. Due to internal flexible design, result in extensively fixed output voltage versions and make it convenient to use for applications. Built-in current-limit, short-circuit protection and thermal-shutdown functions prevent any fault condition from IC damage.
Applications
- Portable applications requiring minimum board space and smallest components
Key features
- Input voltage range is up to 6V
- Dropout voltage 200mV at 150mA output current
- Guaranteed 300mA output current
- Low quiescent current 90μA (typ.)
- Fixed Output voltage is 1.5V, 1.8V, 2.5V, 2.8V, 3.0V and 3.3V.
- Fast transient response
- Current limit, short-circuit protection and thermal shutdown protection
- Available in the SOT-23-3L and SOT-89-3L Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SL9193M18SA#C5185894Slkor · SOT-23 | Slkor | SOT-23 | 330 | ₹8.31 · 330 in stock | View |
 | AP7333-18SAG-7#C150747DIODES · SOT-23 | DIODES | SOT-23 | 795 | ₹34.52 · 795 in stock | View |
 | AP7333-18SRG-7#C151043DIODES · SOT-23R | DIODES | SOT-23R | 3,925 | ₹15.33 · 3,925 in stock | View |
 | DS8571-18SS3#C48533035DSTECH · SSOT-23 | DSTECH | SSOT-23 | 500 | ₹2.63 · 500 in stock | View |
 | SL9013M18SA#C5155375Slkor · SOT-23 | Slkor | SOT-23 | 980 | ₹8.00 · 980 in stock | View |
