DIODESDatasheet (PDF)

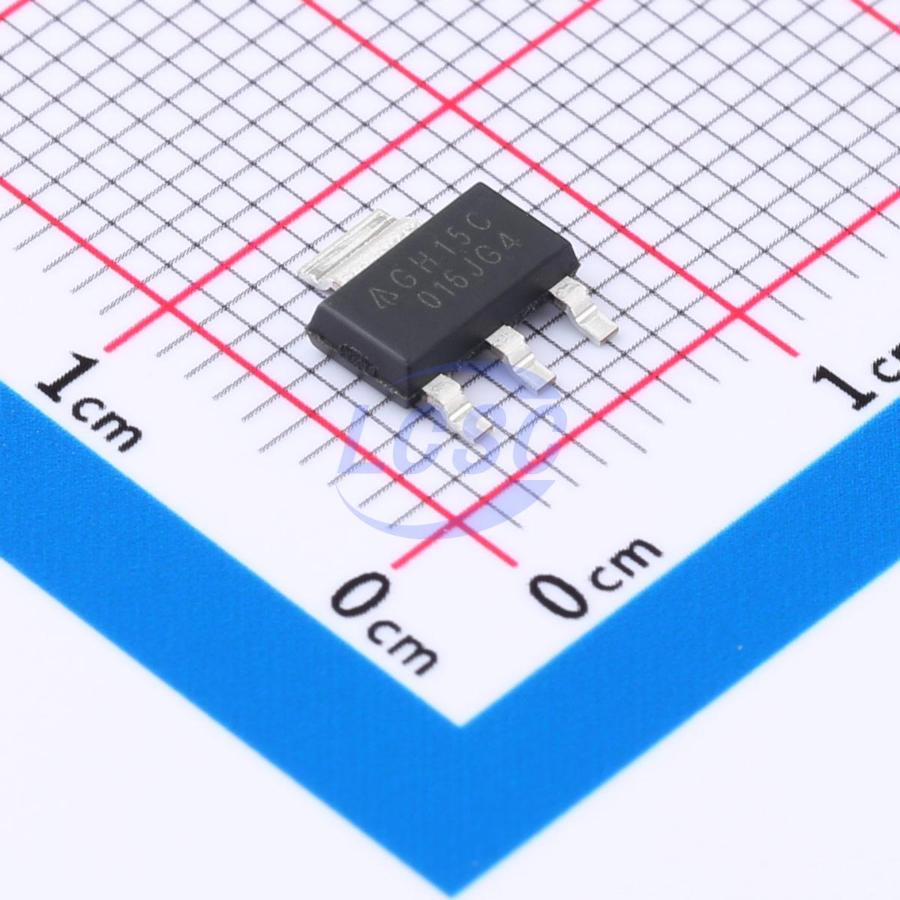

AZ1117CH-1.5TRG1
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-261-4
TO-261-4ROHS3 CompliantActive
Low Dropout Linear Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AZ1117CH-1.5TRG1
- Store part #
- C3003071
- Package / case
- TO-261-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C3003071
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹37.32 | ₹37.32 |
1 × ₹37.32
₹37.32
excl. GST
₹44.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AZ1117CH-1.5TRG1
₹37.32 for 1 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
Applications
- USB devices
- Add-on cards
- DVD players
- PC motherboards
Key features
- The DIODES™ AZ1117C is a low dropout three-terminal regulator optimized for a low voltage where transient response and minimum input voltage are critical.
- The device provides current-limit and thermal-shutdown features.
- Its circuit includes a trimmed bandgap reference to assure output voltage accuracy of within ±1%.
- On-chip thermal shutdown provides protection against a combination of high current and ambient temperature that would create excessive junction temperature.
- The AZ1117C is available in 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V fixed output voltage versions and an ADJ output voltage version. The fixed versions integrate the adjust resistors. It is also available in an adjustable version which can set the output voltage with two external resistors.
- The AZ1117C is available in the industry-standard TO252-2 Series (including TO252-2 (3), TO252-2 (4), and TO252-2 (5)), SOT89, and SOT223 packages.
- Current Limit: 1.35A (Typ)
- Output Noise from 10Hz to 10kHz: 0.003% of VOUT
- PSRR at lOUT = 300mA and f = 120Hz: 70dB
- Output Voltage Accuracy: ±1% (Except 1.2V Version)
- On-Chip Thermal Shutdown
- Maximum Quiescent Current: lQMAX = 6mA
- Compatible with Low ESR Ceramic Capacitor
- Operation Junction Temperature: -20°C to +125°C
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117AG-1.5V#C474401UTC · SOT-223 | UTC | SOT-223 | 430 | ₹11.50 · 430 in stock | View |
 | LM1117MP-1.5/TR#C498155HGSEMI · SOT-223 | HGSEMI | SOT-223 | 1,770 | ₹12.04 · 1,770 in stock | View |
 | AMS1117-1.5#C347219UMW · SOT-223 | UMW | SOT-223 | 16,100 | ₹7.17 · 16,100 in stock | View |
 | LD1117-1.5#C347226UMW · SOT-223 | UMW | SOT-223 | 70 | ₹6.36 · 70 in stock | View |
 | MC33269MP-1.5/TR#C52121502HGSEMI · SOT-223 | HGSEMI | SOT-223 | 2,500 | ₹16.71 · 2,500 in stock | View |
