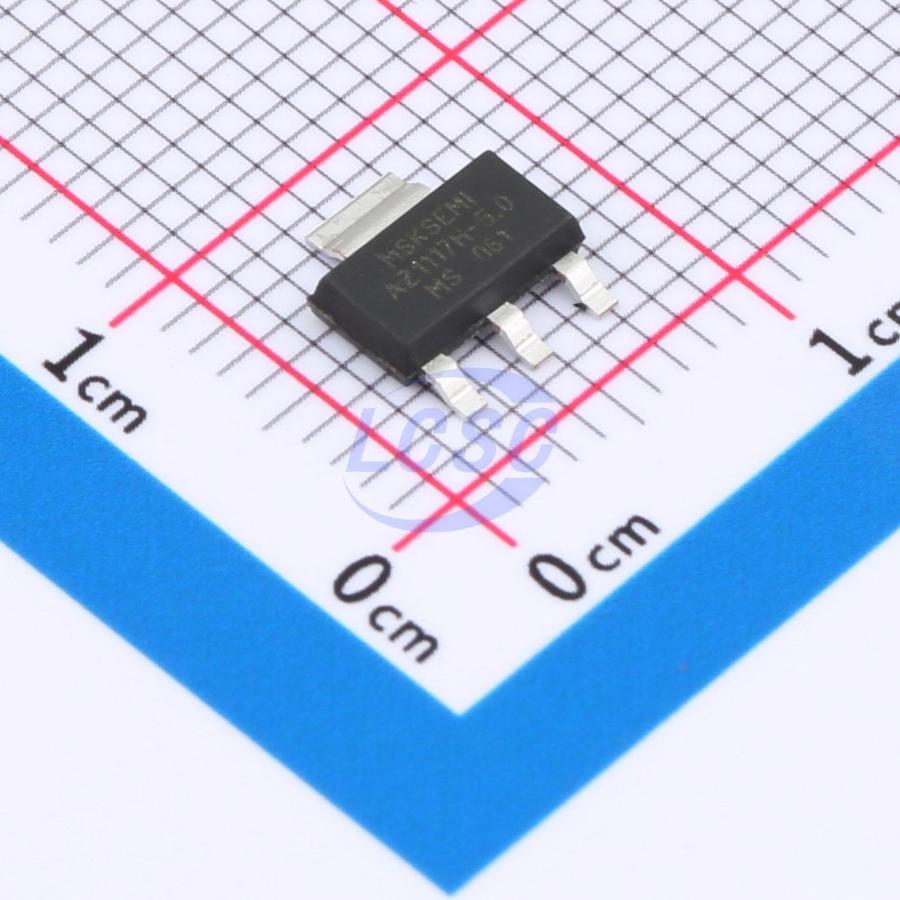

AZ1117H-5.0TRE1-MS
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- AZ1117H-5.0TRE1-MS
- Store part #
- C22462600
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,905 in stock
#C22462600
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.74 | ₹58.70 |
| 50+ | ₹9.19 | ₹459.50 |
| 150+ | ₹7.94 | ₹1,191.00 |
| 500+ | ₹6.99 | ₹3,495.00 |
| 2,500+ | ₹6.22 | ₹15,550.00 |
| 5,000+ | ₹5.85 | ₹29,250.00 |
5 × ₹11.74
₹58.70
excl. GST
₹69.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AZ1117H-5.0TRE1-MS
₹58.70 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Ta)
- Supply Current (Iq)
- 12mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
AZ1117H-xxxTRE1-MS is a low dropout linear regulator. Available in both adjustable output and fixed voltage output versions (fixed voltages include 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, etc.; other voltage specifications can be customized per customer requirements). Maximum output current is 1A, output voltage accuracy up to ±2%, stable operating voltage range up to 12V, line regulation 0.2%, load regulation 0.4%, and operating temperature range -20°C to 125°C. Suitable for post-stage voltage regulation in switching power supplies for computer motherboards, graphics cards, LCD monitors, LCD TVs, DVD decoder boards, ADSL equipment, and more.
Applications
- Computer motherboards, graphics cards
- LCD monitors and LCD TVs
- DVD decoder boards
- Post-regulation for ADSL and similar switching power supplies
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP1117LPST50T3G-MS#C22462597MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 2,285 | ₹18.75 · 2,285 in stock | View |
 | MS1117-5V#C47020981MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 2,450 | ₹7.83 · 2,450 in stock | View |
 | LD1117-5.0(MS)#C20538889MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 1,740 | ₹6.64 · 1,740 in stock | View |
 | SPX1117M3-L-5-0/TR(MS)#C22462594MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 910 | ₹9.90 · 910 in stock | View |
