MSKSEMI

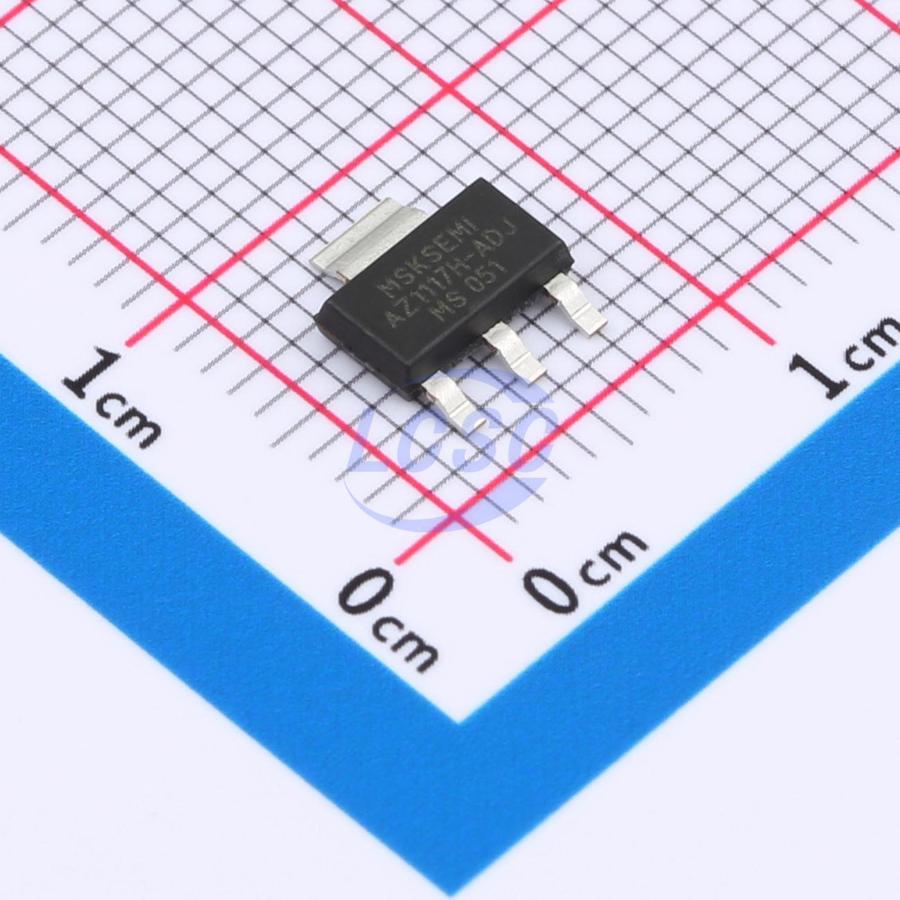

AZ1117H-ADJTRE1-MS

Linear Voltage Regulator IC Positive Adjustable 1 Output 1A SOT-223

SOT-223RoHSActive

Low Dropout Linear Regulator

Manufacturer: MSKSEMI
Manufacturer part #: AZ1117H-ADJTRE1-MS
Store part #: C22462601
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,125 in stock

#C22462601

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹11.72	₹58.60
50+	₹9.19	₹459.50
150+	₹7.92	₹1,188.00
500+	₹6.97	₹3,485.00
2,500+	₹6.22	₹15,550.00
5,000+	₹5.83	₹29,150.00

Quantity (min 5, multiples of 5)

5 × ₹11.72

₹58.60

excl. GST

₹69.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

AZ1117H-ADJTRE1-MS

₹58.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.225V~12.75V
Number of Outputs: 1
Operating Temperature: 0℃~+125℃@(Ta)
Supply Current (Iq): 12mA
Output Configuration: Positive
Operating Voltage: 15V
Output Current: 1A
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.211 g

Overview

AZ1117H-xxxTRE1-MS is a low dropout linear regulator. Available in both adjustable output and fixed voltage output versions (fixed voltages include 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, etc.; other voltage specifications can be customized per customer requirements). Maximum output current is 1A, output voltage accuracy up to ±2%, stable operating voltage range up to 12V, line regulation 0.2%, load regulation 0.4%, and operating temperature range -20°C to 125°C. Suitable for post-stage voltage regulation in switching power supplies for computer motherboards, graphics cards, LCD monitors, LCD TVs, DVD decoder boards, ADSL equipment, and more.
