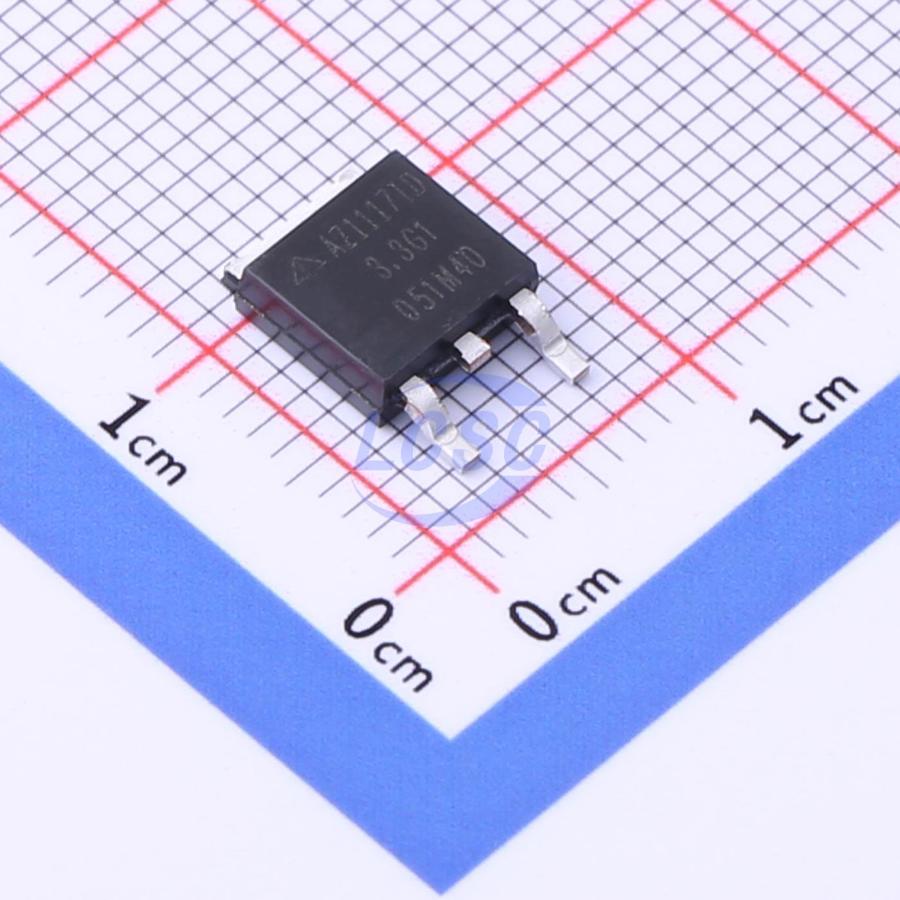

AZ1117ID-3.3TRG1

Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252-2

TO-252-2ROHS3 CompliantActive

Low Dropout (LDO) Three-Terminal Voltage Regulator

Manufacturer: DIODES
Manufacturer part #: AZ1117ID-3.3TRG1
Store part #: C2926306
Package / case: TO-252-2
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,655 in stock

#C2926306

Stock & price checked 27 h ago

Quantity	Unit price	Pack price
5+	₹27.03	₹135.15
50+	₹23.35	₹1,167.50
150+	₹21.78	₹3,267.00
500+	₹19.81	₹9,905.00
2,500+	₹18.93	₹47,325.00
5,000+	₹18.40	₹92,000.00

Quantity (min 5, multiples of 5)

5 × ₹27.03

₹135.15

excl. GST

₹159.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AZ1117ID-3.3TRG1

₹135.15 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 6mA
Output Configuration: Positive
Operating Voltage: 15V
Output Current: 1A
Features: Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.556 g

Overview

The AZ1117I is a low dropout three-terminal regulator optimized for a low voltage where transient response and minimum input voltage are critical. The device provides current-limit and thermal-shutdown features. Its circuit includes a trimmed bandgap reference to assure an output voltage accuracy of within ±1%. Onchip thermal shutdown provides protection against a combination of high current and ambient temperature that may create excessive junction temperature. The AZ1117I is available in 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V fixed output voltage versions and an ADJ output voltage version. The fixed versions integrate the adjust resistors. It is also available in an adjustable version which can set the output voltage with two external resistors. The AZ1117I is available in the industry-standard SOT223 and TO252-2 packages.

Applications

USB devices
Add-on cards
DVD players
PC motherboards

Key features

Current Limit: 1.35A (Typ)
Output Noise from 10Hz to 10KHz: 0.003% of VOUT
PSRR at lour = 300mA and f = 120Hz: 70dB
Output Voltage Accuracy: ±1% (Except 1.2V Version)
On-chip Thermal Shutdown
Maximum Quiescent Current: IQMAX = 6mA
Compatible with Low ESR Ceramic Capacitor Operation
Junction Temperature: -40°C to +125°C
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device

Alternatives

Similar parts — check the datasheet before substituting.
