DIODESDatasheet (PDF)

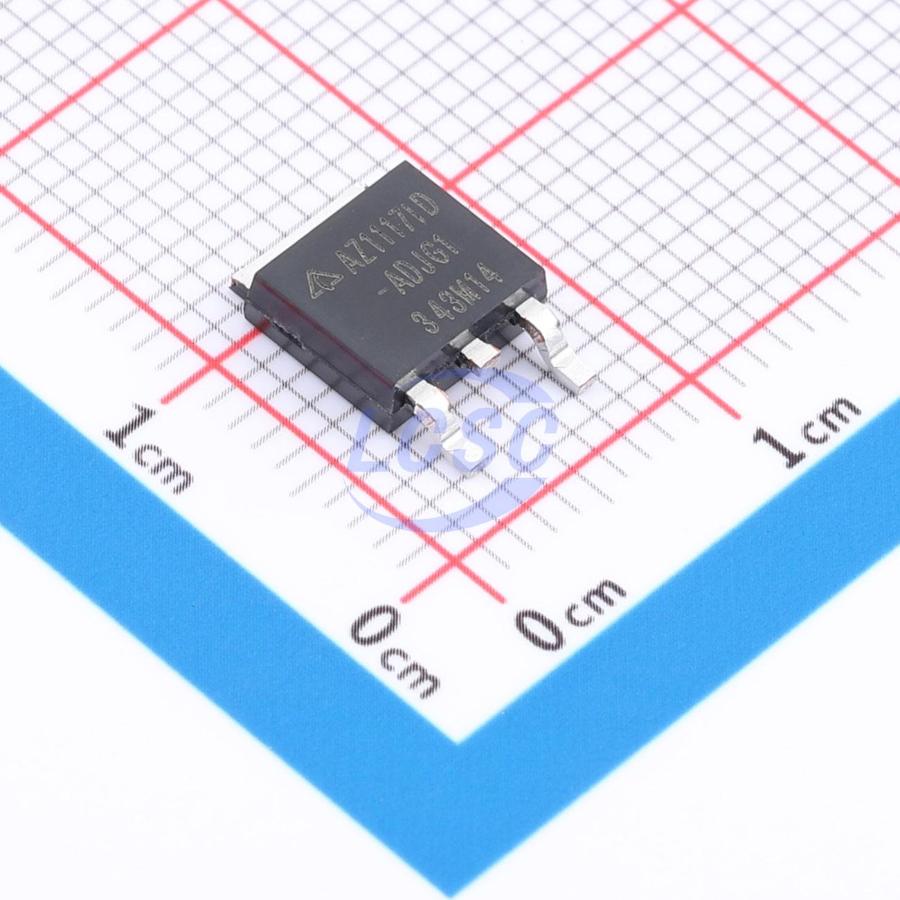

AZ1117ID-ADJTRG1
Positive Adjustable TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- AZ1117ID-ADJTRG1
- Store part #
- C5556655
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C5556655
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.51 | ₹142.55 |
| 50+ | ₹22.64 | ₹1,132.00 |
| 150+ | ₹20.11 | ₹3,016.50 |
| 500+ | ₹16.97 | ₹8,485.00 |
| 2,500+ | ₹15.57 | ₹38,925.00 |
| 5,000+ | ₹14.74 | ₹73,700.00 |
5 × ₹28.51
₹142.55
excl. GST
₹168.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AZ1117ID-ADJTRG1
₹142.55 for 5 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 1.35A
- Operating Voltage
- 15V
- Output Type
- Adjustable
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.526 g
Overview
The AZ1117I is a low dropout three-terminal regulator optimized for a low voltage where transient response and minimum input voltage are critical. The device provides current-limit and thermal-shutdown features. Its circuit includes a trimmed bandgap reference to assure an output voltage accuracy of within ±1%. Onchip thermal shutdown provides protection against a combination of high current and ambient temperature that may create excessive junction temperature. The AZ1117I is available in 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V fixed output voltage versions and an ADJ output voltage version. The fixed versions integrate the adjust resistors. It is also available in an adjustable version which can set the output voltage with two external resistors. The AZ1117I is available in the industry-standard SOT223 and TO252-2 packages.
Applications
- USB devices
- Add-on cards
- DVD players
- PC motherboards
Key features
- Current Limit: 1.35A (Typ)
- Output Noise from 10Hz to 10KHz: 0.003% of VOUT
- PSRR at lour = 300mA and f = 120Hz: 70dB
- Output Voltage Accuracy: ±1% (Except 1.2V Version)
- On-chip Thermal Shutdown
- Maximum Quiescent Current: IQMAX = 6mA
- Compatible with Low ESR Ceramic Capacitor Operation
- Junction Temperature: -40°C to +125°C
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
