DIODESDatasheet (PDF)

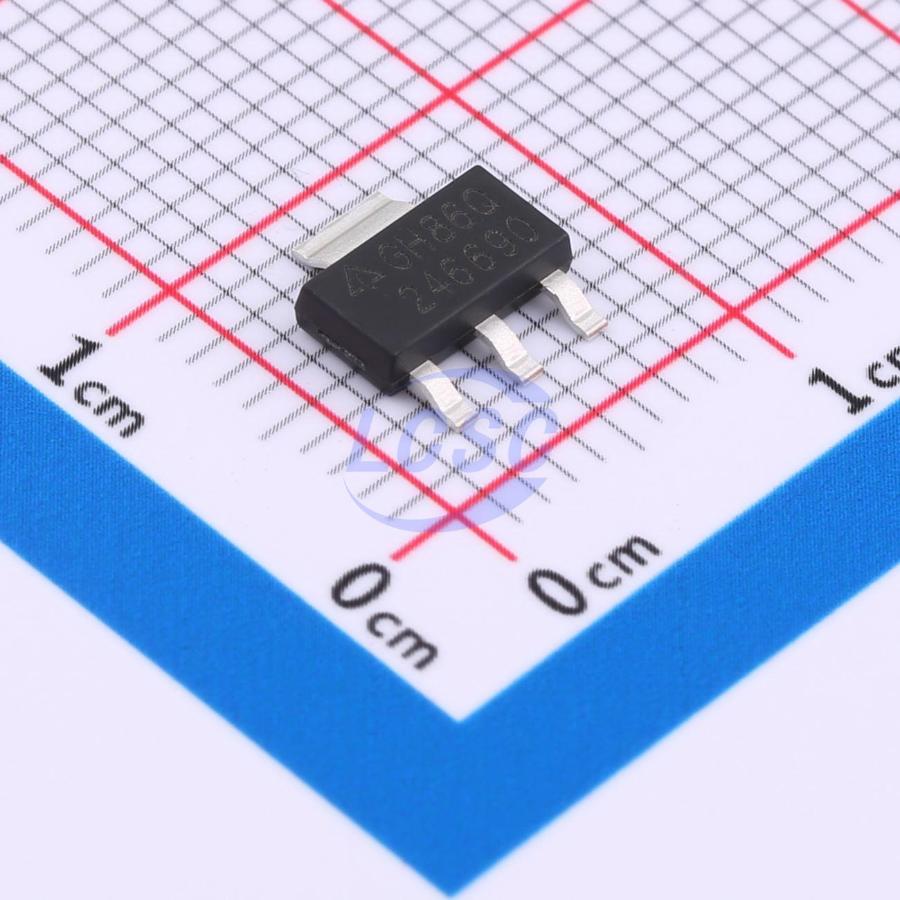

AZ1117IH-5.0TRG1
5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
Industrial Temperature Range Low Dropout Linear Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AZ1117IH-5.0TRG1
- Store part #
- C108496
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,620 in stock
#C108496
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.85 | ₹199.25 |
| 50+ | ₹31.16 | ₹1,558.00 |
| 150+ | ₹27.45 | ₹4,117.50 |
| 500+ | ₹22.79 | ₹11,395.00 |
| 2,500+ | ₹20.72 | ₹51,800.00 |
| 4,000+ | ₹19.49 | ₹77,960.00 |
5 × ₹39.85
₹199.25
excl. GST
₹235.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AZ1117IH-5.0TRG1
₹199.25 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1.35A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
The AZ1117I is a low dropout three-terminal regulator optimized for a low voltage where transient response and minimum input voltage are critical. The device provides current-limit and thermal-shutdown features. Its circuit includes a trimmed bandgap reference to assure an output voltage accuracy of within ±1%. Onchip thermal shutdown provides protection against a combination of high current and ambient temperature that may create excessive junction temperature. The AZ1117I is available in 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V fixed output voltage versions and an ADJ output voltage version. The fixed versions integrate the adjust resistors. It is also available in an adjustable version which can set the output voltage with two external resistors. The AZ1117I is available in the industry-standard SOT223 and TO252-2 packages.
Applications
- USB devices
- Add-on cards
- DVD players
- PC motherboards
Key features
- Current Limit: 1.35A (Typ)
- Output Noise from 10Hz to 10KHz: 0.003% of VOUT
- PSRR at lour = 300mA and f = 120Hz: 70dB
- Output Voltage Accuracy: ±1% (Except 1.2V Version)
- On-chip Thermal Shutdown
- Maximum Quiescent Current: IQMAX = 6mA
- Compatible with Low ESR Ceramic Capacitor Operation
- Junction Temperature: -40°C to +125°C
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AZ1117CH-5.0TRG1#C99342DIODES · SOT-223 | DIODES | SOT-223 | 58,215 | ₹20.30 · 58,215 in stock | View |
 | AZ1117CH2-5.0TRG1#C3003063DIODES · SOT-223 | DIODES | SOT-223 | 13,930 | ₹16.28 · 13,930 in stock | View |
 | SP1117V50TC#C41355115Siliup · SOT-223 | Siliup | SOT-223 | 2,030 | ₹5.58 · 2,030 in stock | View |
 | LM1117S-5.0(MS)#C20538887MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 910 | ₹12.02 · 910 in stock | View |
 | JTD1117A(1.4A)-5.0V#C42443433JTD · SOT-223 | JTD | SOT-223 | 1,860 | ₹4.94 · 1,860 in stock | View |
