DIODESDatasheet (PDF)

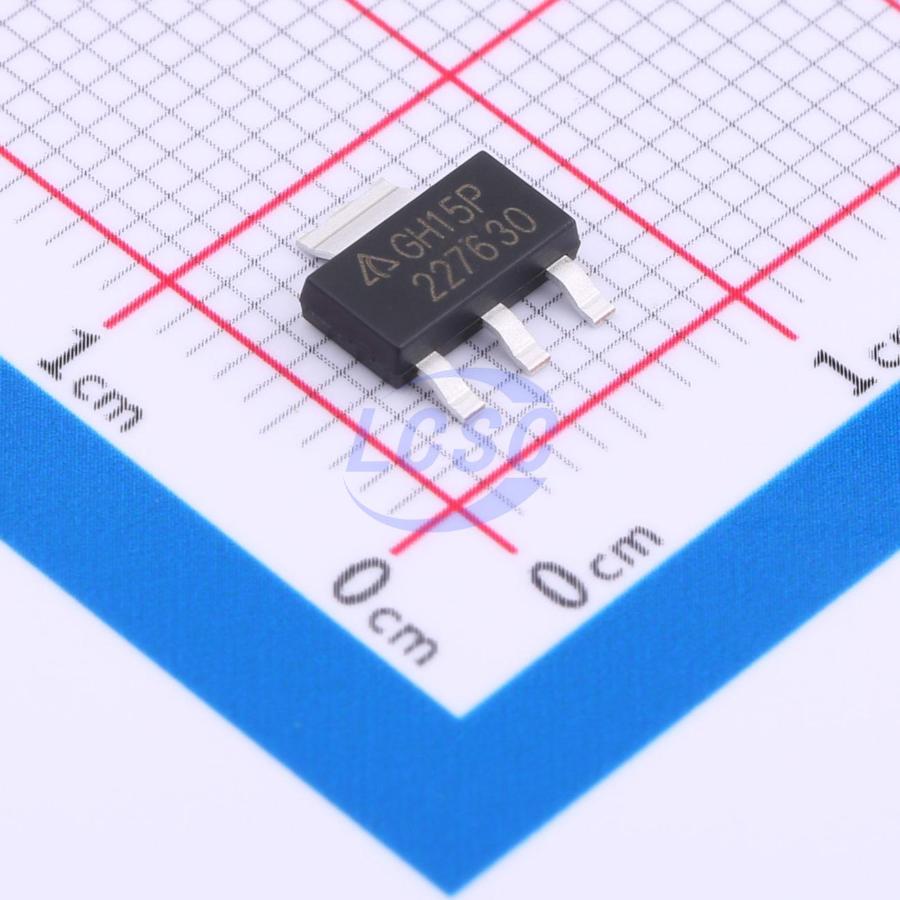

AZ2117H-ADJTRG1
Positive Adjustable TO-261-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-261-4ROHS3 CompliantActive
Low Dropout Linear Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AZ2117H-ADJTRG1
- Store part #
- C2960364
- Package / case
- TO-261-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
155 in stock
#C2960364
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.75 | ₹118.75 |
| 50+ | ₹18.97 | ₹948.50 |
| 150+ | ₹16.92 | ₹2,538.00 |
| 500+ | ₹14.37 | ₹7,185.00 |
| 2,500+ | ₹12.66 | ₹31,650.00 |
| 4,000+ | ₹11.97 | ₹47,880.00 |
5 × ₹23.75
₹118.75
excl. GST
₹140.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AZ2117H-ADJTRG1
₹118.75 for 5 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1.5A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
The AZ2117 is a low dropout three-terminal regulator. The AZ2117 has been optimized for low voltage where transient response and minimum input voltage are critical. It provides current limit and thermal shutdown. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to be within ±1%. Onchip thermal shutdown provides protection against a combination of high current and ambient temperature that would create excessive junction temperature. The AZ2117 is available in ADJ output voltage version. It is available in an adjustable version which can set the output voltage with two external resistors. The AZ2117 is available in the industry-standard SOT223 Series power packages.
Applications
- USB Device
- Add-on Card
- DVD Player
- PC Motherboard
Key features
- Current Limit: 1.35A (Typ)
- Output Noise from 10Hz to 10kHz: 0.003% of VOUT
- PSRR at lour = 300mA and f = 120Hz: 60dB
- Output Voltage Accuracy: ±1%
- On-chip Thermal Shutdown
- Maximum Quiescent Current: IQMAX = 1mA
- Compatible with Low ESR Ceramic Capacitor
- Operation Junction Temperature: -40°C to +125°C
- Totally Lead-Free & Fully RoHS Compliant, Halogen and Antimony Free. “Green” Device
