DIODESDatasheet (PDF)

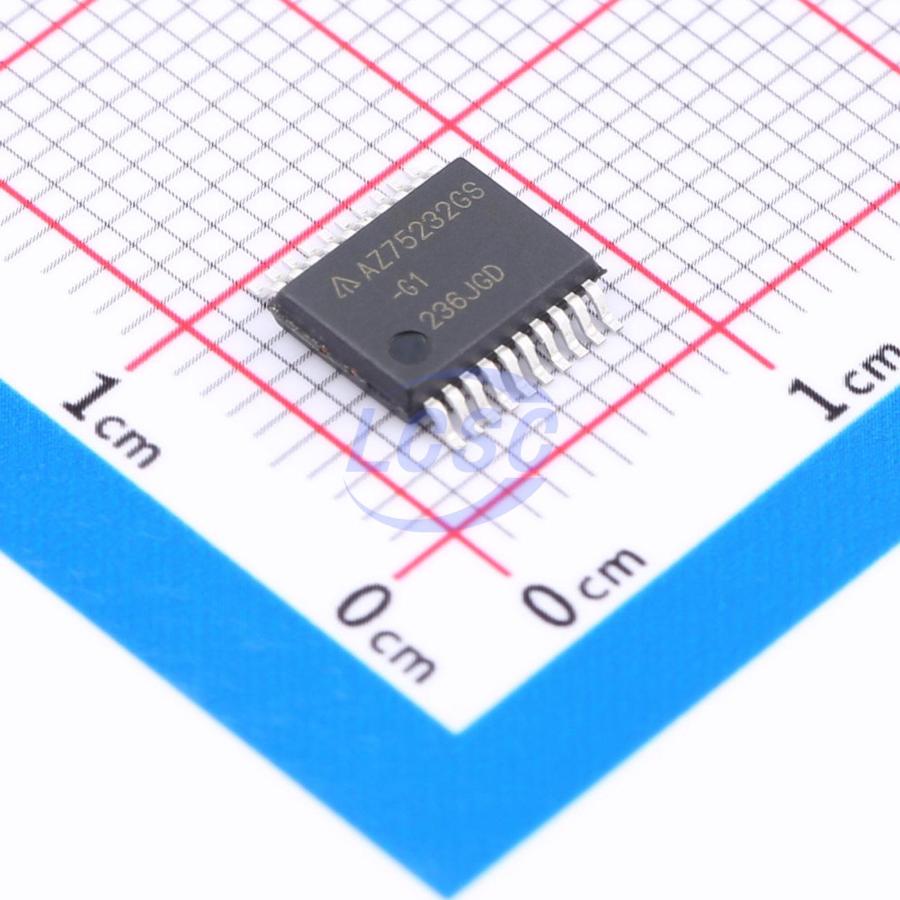

AZ75232GSTR-G1
Transceiver 120Kbps LSSOP-20 Drivers, Receivers, Transceivers RoHS
LSSOP-20ROHS CompliantActive
MULTIPLERS-232DRIVERSANDRECEIVERS
- Manufacturer
- DIODES
- Manufacturer part #
- AZ75232GSTR-G1
- Store part #
- C460671
- Package / case
- LSSOP-20
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,870 in stock
#C460671
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.27 | ₹141.35 |
| 50+ | ₹24.87 | ₹1,243.50 |
| 150+ | ₹23.42 | ₹3,513.00 |
| 500+ | ₹21.60 | ₹10,800.00 |
| 2,000+ | ₹20.80 | ₹41,600.00 |
| 4,000+ | ₹20.31 | ₹81,240.00 |
5 × ₹28.27
₹141.35
excl. GST
₹166.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
AZ75232GSTR-G1
₹141.35 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V;7.5V~15V
- Type
- Transceiver
- Data Rate
- 120Kbps
- Operating Temperature
- -40℃~+85℃
- Number of Drivers
- 3
- Number of Receivers
- 5
- Quiescent Supply Current
- 30mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.326 g
Overview
The AZ75232 combines three drivers and five receivers, which conform to the EIA/TIA-232-F and ITU v.28 standards. Each receiver converts EIA/TIA-232-F inputs to 5-V TTL/CMOS levels and each driver converts TTL/CMOS input levels into EIA/TIA-232-F levels. The flow-through pinout facilitates simple non-crossover board layout. The AZ75232 provides a one-chip solution for the common 9-pin serial RS-232 interface between data terminal and data communications equipment. The AZ75232 is available in SOIC-20, SSOP-20 and TSSOP-20 packages.
Applications
- Mother Board Peripheral Equipment
Key features
- Single Chip with Easy Interface between UART and Serial-Port Connector
- Meet the Requirement of EIA/TIA-232-F and ITU v.28 Standards
- Designed to Support Data Rates up to 120kbit/s
- 3 Drivers and 5 Receivers
- Flow-through Pinout
