DIODESDatasheet (PDF)

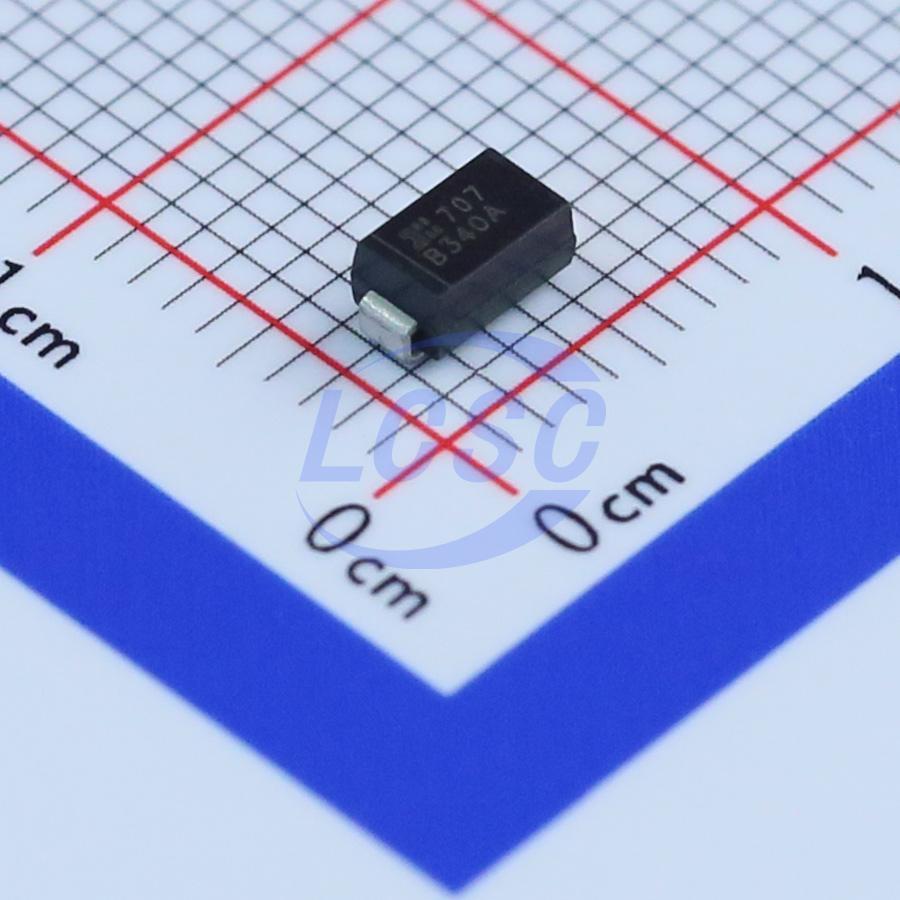

B340A-13-F
1 Independent 40V 500mV@3A 3A SMA(DO-214AC) Single Diodes RoHS
PopularSMA(DO-214AC)ROHS3 CompliantActive
Voltage： 40V Current： 3A
- Manufacturer
- DIODES
- Manufacturer part #
- B340A-13-F
- Store part #
- C85098
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,79,200 in stock
#C85098
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.27 | ₹112.70 |
| 100+ | ₹9.10 | ₹910.00 |
| 300+ | ₹7.98 | ₹2,394.00 |
| 1,000+ | ₹7.06 | ₹7,060.00 |
| 5,000+ | ₹6.73 | ₹33,650.00 |
| 10,000+ | ₹6.52 | ₹65,200.00 |
10 × ₹11.27
₹112.70
excl. GST
₹132.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
B340A-13-F
₹112.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 500mV@3A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Non-Repetitive Peak Forward Surge Current
- 80A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.064 g
Overview
For use in low- voltage, high- frequency inverters, freewheeling, DC- DC converters, and polarity protection applications.
Applications
- low- voltage, high- frequency inverters
- freewheeling
- DC- DC converters
- polarity protection applications
Key features
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power Loss, High Efficiency
- Lead-Free Finish; RoHS Compliance
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B340A-E3/61T#C15570VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 76,250 | ₹13.03 · 76,250 in stock | View |
 | MBRA340T3G#C26178onsemi · SMA(DO-214AC) | onsemi | SMA(DO-214AC) | 1,12,905 | ₹28.30 · 1,12,905 in stock | View |
 | SS34-E3/57T#C13354VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 4,090 | ₹36.99 · 4,090 in stock | View |
 | MBRA340T3G#C42186051GOODWORK · SMA | GOODWORK | SMA | 3,310 | ₹9.06 · 3,310 in stock | View |
 | CD214A-B340R#C3758442BOURNS · SMA(DO-214AC) | BOURNS | SMA(DO-214AC) | 96 | ₹67.16 · 96 in stock | View |
