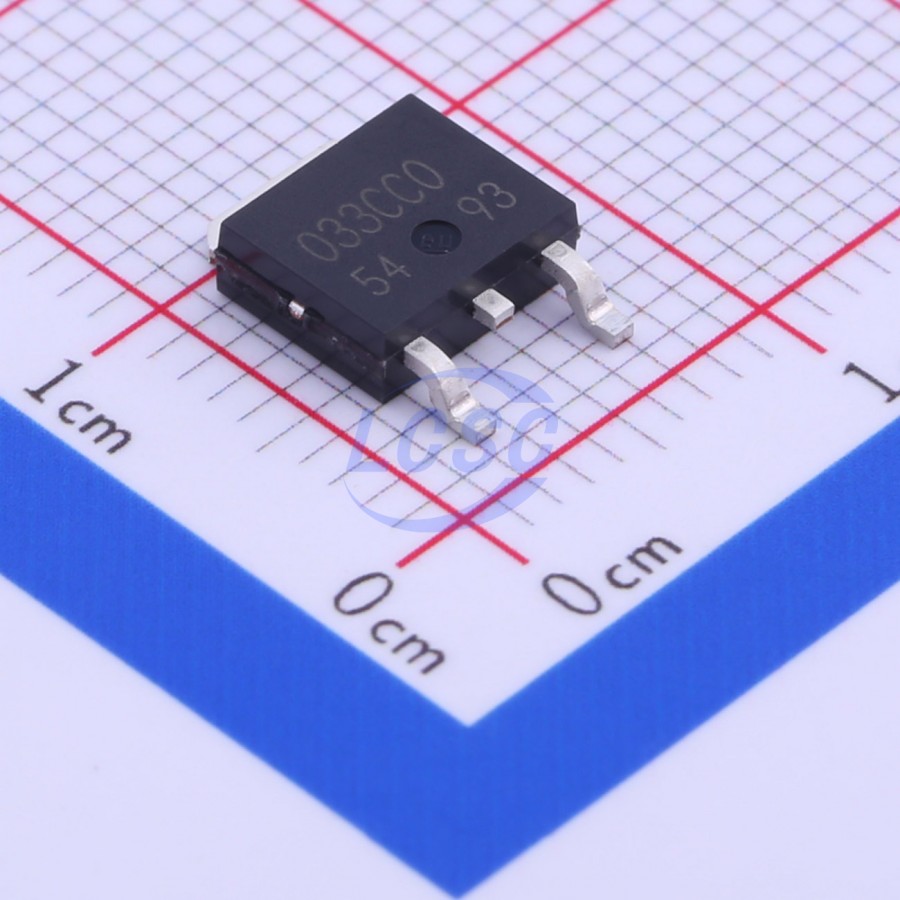

BA033CC0FP-E2
3.3V Positive Fixed TO-252-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2ROHS3 CompliantActive
2A/1A Fixed Output LDO Regulators With Shutdown Swicth
- Manufacturer
- ROHM
- Manufacturer part #
- BA033CC0FP-E2
- Store part #
- C308579
- Package / case
- TO-252-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,626 in stock
#C308579
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.38 | ₹125.38 |
| 10+ | ₹100.83 | ₹1,008.30 |
| 30+ | ₹88.44 | ₹2,653.20 |
| 100+ | ₹76.28 | ₹7,628.00 |
| 500+ | ₹69.11 | ₹34,555.00 |
| 1,000+ | ₹65.20 | ₹65,200.00 |
1 × ₹125.38
₹125.38
excl. GST
₹147.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BA033CC0FP-E2
₹125.38 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 2.5mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 25V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Input overvoltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.946 g
Overview
Standard Fixed Output LDO Regulators are low-saturation regulators, available for outputs up to 2A / 1A. It has a wide output voltage range and package lineup with and without shutdown switches. This IC has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits, a thermal shut-down circuit that protects the IC from damage due to overloading and an over-voltage protection circuit that protects the IC from surges generated in the power supply line of the IC.
Applications
- Used in DSP power supplies for DVD and CD players
- FPDs
- Televisions
- Personal computers
- Any other consumer device
Key features
- ±1% highly accurate output voltage (BAxxDD0xx)
- Low saturation with PNP output
- Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
- Built-in thermal shutdown circuit for protecting the IC from damage due to overloading
- Built-in over- voltage protection circuit that prevents the destruction of the IC due to power supply surges
