ROHMDatasheet (PDF)

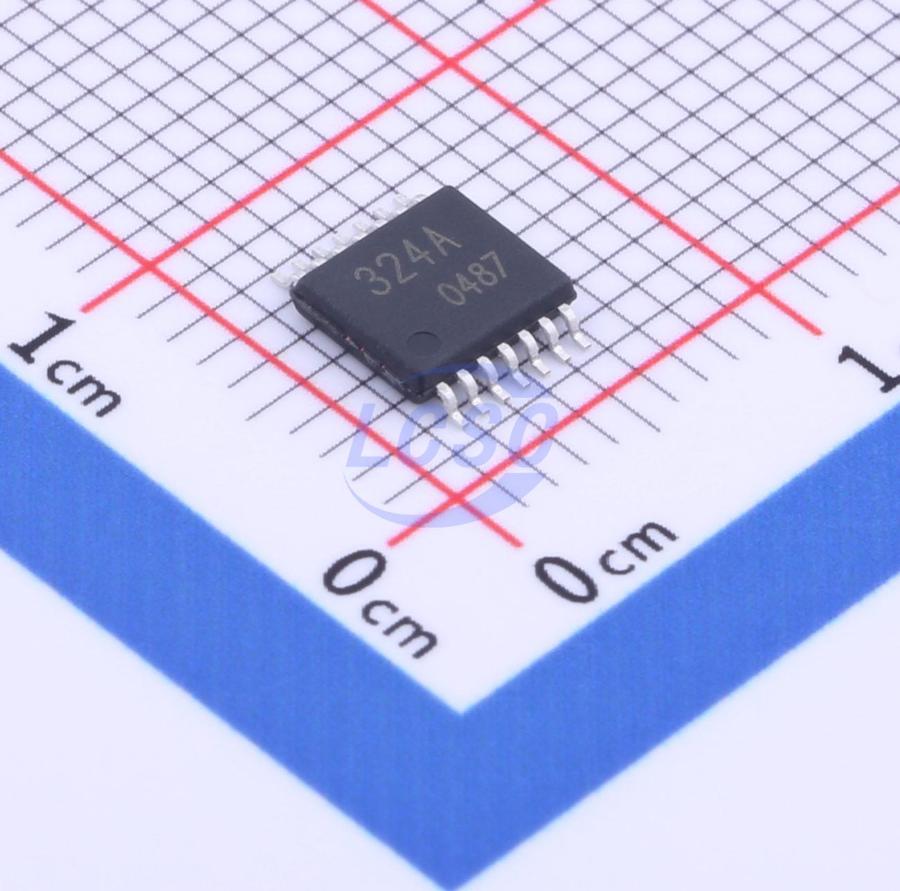

BA10324AFV-E2
35mA 4 7mV 200V/ms 75dB 20nA 500kHz 600uA SSOP-14-4.4mm Instrumentation, Op Amps, Buffer Amps RoHS
SSOP-14-4.4mmROHS3 CompliantActive
Operational Amplifiers
- Manufacturer
- ROHM
- Manufacturer part #
- BA10324AFV-E2
- Store part #
- C600714
- Package / case
- SSOP-14-4.4mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,041 in stock
#C600714
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹37.02 | ₹37.02 |
| 10+ | ₹29.21 | ₹292.10 |
| 30+ | ₹25.88 | ₹776.40 |
| 100+ | ₹21.71 | ₹2,171.00 |
| 500+ | ₹19.86 | ₹9,930.00 |
| 1,000+ | ₹16.41 | ₹16,410.00 |
1 × ₹37.02
₹37.02
excl. GST
₹43.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BA10324AFV-E2
₹37.02 for 1 + GST
Specifications
- Output Current
- 35mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 7mV
- Slew Rate
- 200V/ms
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Ib - Input Bias Current
- 20nA
- Gain Bandwidth Product
- 500kHz
- Quiescent Current
- 600uA
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.214 g
Overview
General purpose BA10358 / BA10324A and high reliability BA2904 / BA2902 integrate two or four independent Op-Amps on a single chip and have some features of high-gain, low power consumption, and wide operating voltage range of 3V to 36V (single power supply). BA2904W have low input offset voltage(2mV max)
Applications
- Current sense application
- Buffer application amplifier
- Active filter
- Consumer electronics
Key features
- Operable with a single power supply
- Wide operating supply voltage range
- Input and output are operable GND sense
- Low supply current
- High open loop voltage gain
- Wide temperature range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BA3474YFV-CE2#C2058132ROHM · SSOP-14-4.4mm | ROHM | SSOP-14-4.4mm | 100 | ₹317.19 · 100 in stock | View |
| LM2902FV-E2#C4367017ROHM · SSOP-14-4.4mm | ROHM | SSOP-14-4.4mm | On request | ₹52.25 · 0 in stock | View | |
 | BU7244YFV-CE2#C2059082ROHM · SSOP-14-4.4mm | ROHM | SSOP-14-4.4mm | On request | ₹252.84 · 0 in stock | View |
| BA3474FV-E2#C2058246ROHM · SSOP-14-4.4mm | ROHM | SSOP-14-4.4mm | On request | ₹142.54 · 0 in stock | View | |
| BA3474RFV-E2#C509744ROHM · SSOP-14-4.4mm | ROHM | SSOP-14-4.4mm | On request | ₹10.43 · 0 in stock | View | |
