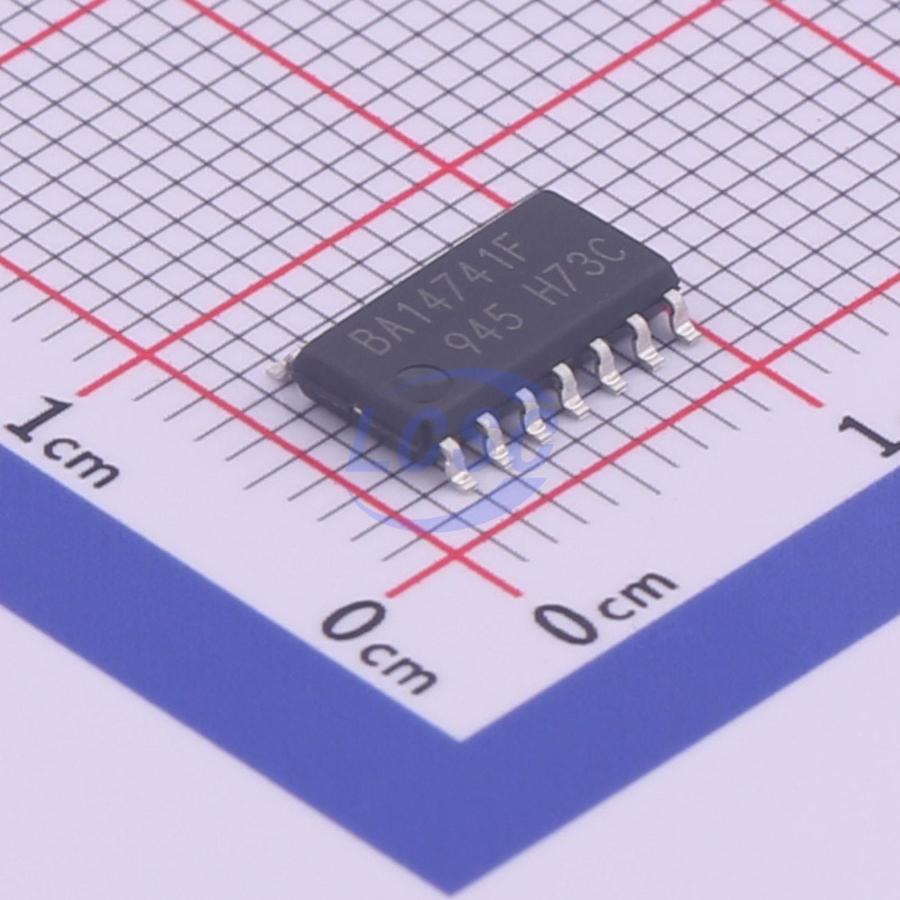

ROHM

BA14741F-E2

20mA 4 1mV 1V/us 100dB 60nA 2.2MHz 3mA SOIC-14-175mil Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14-175milROHS3 CompliantActive

Low Noise Operational Amplifiers

Manufacturer: ROHM
Manufacturer part #: BA14741F-E2
Store part #: C703603
Package / case: SOIC-14-175mil
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,082 in stock

#C703603

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹64.36	₹64.36
10+	₹56.60	₹566.00
30+	₹52.71	₹1,581.30
100+	₹49.03	₹4,903.00
500+	₹46.66	₹23,330.00
1,000+	₹45.58	₹45,580.00

Quantity (min 1)

1 × ₹64.36

₹64.36

excl. GST

₹75.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

BA14741F-E2

₹64.36 for 1 + GST

Specifications

Output Current: 20mA
Number of Channels: 4
Vos - Input Offset Voltage: 1mV
Slew Rate: 1V/us
Input Offset Current(Ios): 10nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 60nA
Gain Bandwidth Product: 2.2MHz
Quiescent Current: 3mA
Input Voltage Noise Density: 10nV/√Hz@1kHz
Dual Supply: -18V~-2V;2V~18V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.298 g

Overview

General-purpose BA14741 integrates four independent Op-Amps on a single chip. Especially, this series is suitable for any audio applications due to low noise and low distortion characteristics and is usable for other many applications by wide operating supply voltage range.

Applications

Audio application
Consumer electronics

Key features

High voltage gain
Low input referred noise voltage
low distortion
Wide operating supply voltage
