ROHMDatasheet (PDF)

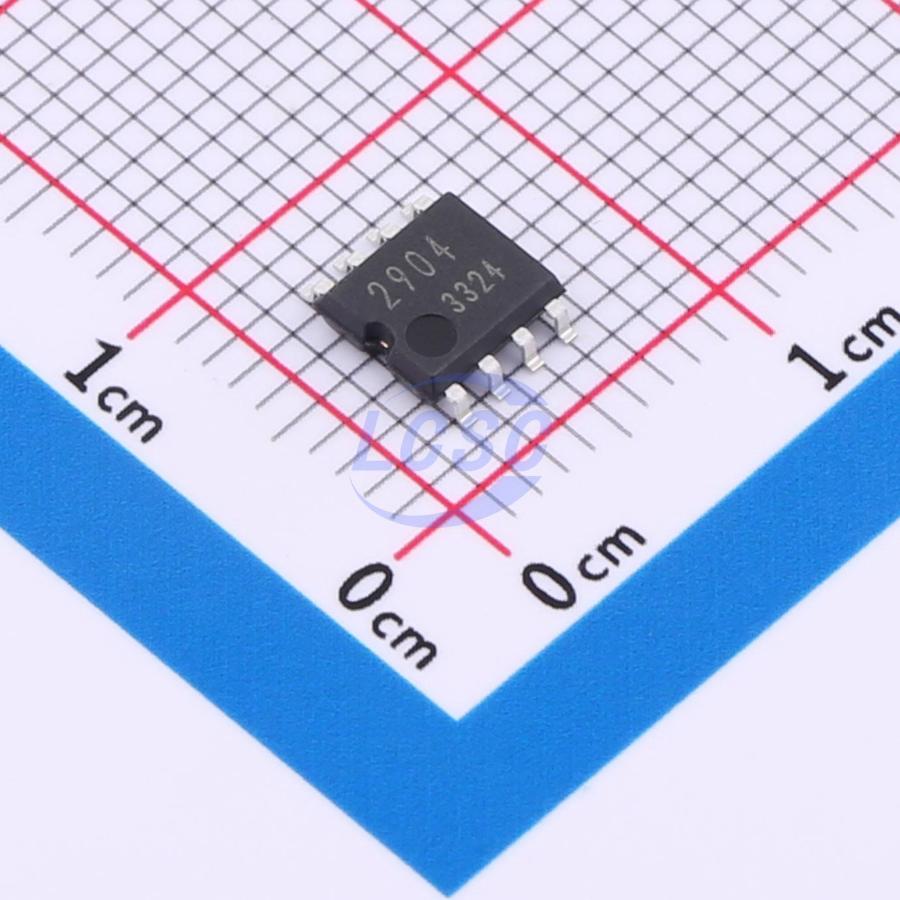

BA2904WF-E2
30mA 2 500uV 200V/ms 80dB 20nA 500kHz 500uA SOP-8-175mil Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8-175milROHS3 CompliantActive
Operational Amplifiers
- Manufacturer
- ROHM
- Manufacturer part #
- BA2904WF-E2
- Store part #
- C559601
- Package / case
- SOP-8-175mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,690 in stock
#C559601
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.09 | ₹130.45 |
| 50+ | ₹25.52 | ₹1,276.00 |
| 150+ | ₹25.14 | ₹3,771.00 |
| 500+ | ₹24.77 | ₹12,385.00 |
5 × ₹26.09
₹130.45
excl. GST
₹153.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BA2904WF-E2
₹130.45 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 200V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Gain Bandwidth Product
- 500kHz
- Quiescent Current
- 500uA
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.212 g
Overview
General purpose BA10358 / BA10324A and high reliability BA2904 / BA2902 integrate two or four independent Op-Amps on a single chip and have some features of high-gain, low power consumption, and wide operating voltage range of 3V to 36V (single power supply). BA2904W have low input offset voltage(2mV max)
Applications
- Current sense application
- Buffer application amplifier
- Active filter
- Consumer electronics
Key features
- Operable with a single power supply
- Wide operating supply voltage range
- Input and output are operable GND sense
- Low supply current
- High open loop voltage gain
- Wide temperature range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BA2904SF-E2#C2058843ROHM · SOIC-8-175mil | ROHM | SOIC-8-175mil | 83 | ₹71.07 · 83 in stock | View | |
 | LM358F-GE2#C2057640ROHM · SOP-8-175mil | ROHM | SOP-8-175mil | 40 | ₹42.61 · 40 in stock | View |
 | BA3472YF-CGE2#C2057709ROHM · SOP-8-175mil | ROHM | SOP-8-175mil | 3 | ₹246.85 · 3 in stock | View |
 | BA4560RF-E2#C703605ROHM · SOP-8-175mil | ROHM | SOP-8-175mil | 1,445 | ₹17.48 · 1,445 in stock | View |
 | BA15218F-E2#C79618ROHM · SOIC-8-175mil | ROHM | SOIC-8-175mil | 900 | ₹27.70 · 900 in stock | View |
