HXY MOSFETDatasheet (PDF)

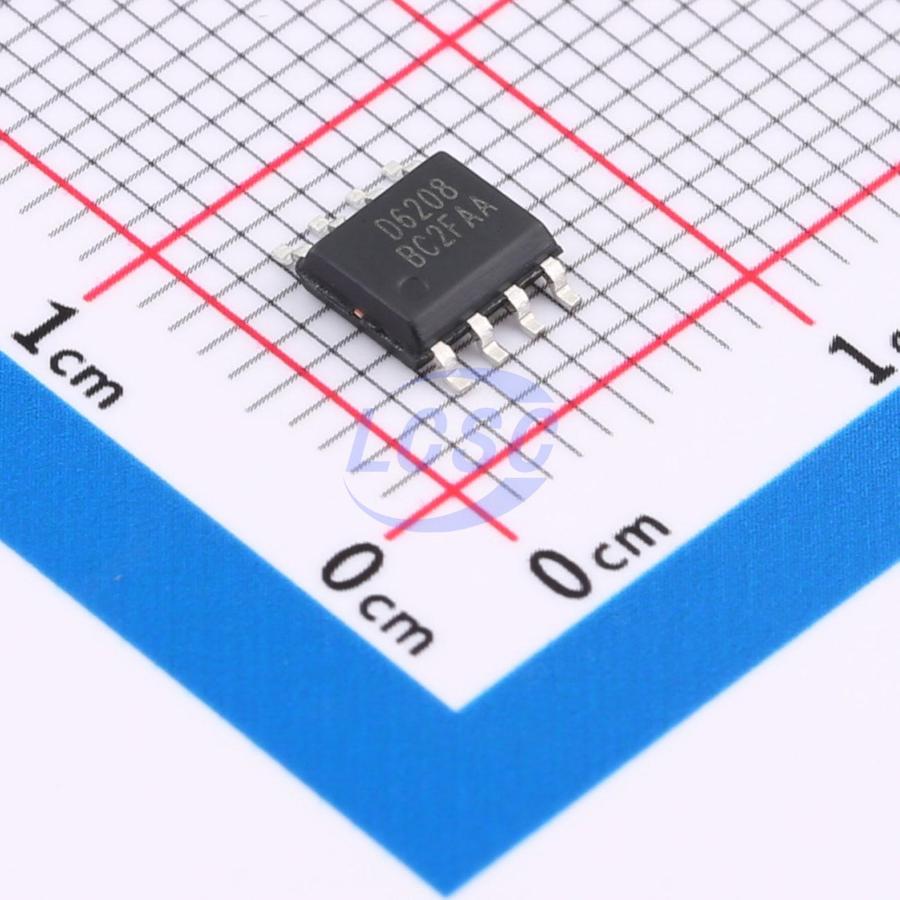

BA6208F-HXY
4.5V~18V SOP-8 Motor Drivers, Controllers
SOP-8RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BA6208F-HXY
- Store part #
- C49247411
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,765 in stock
#C49247411
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.16 | ₹60.80 |
| 50+ | ₹9.55 | ₹477.50 |
| 150+ | ₹8.26 | ₹1,239.00 |
| 500+ | ₹7.28 | ₹3,640.00 |
| 2,500+ | ₹6.50 | ₹16,250.00 |
| 4,000+ | ₹6.10 | ₹24,400.00 |
5 × ₹12.16
₹60.80
excl. GST
₹71.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BA6208F-HXY
₹60.80 for 5 + GST
Specifications
- Features
- Active braking function
- Voltage - Supply
- 4.5V~18V
- Operating Temperature
- -20℃~+60℃
- Supply Current (Iq)
- 400uA
- Output Current
- 200mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.116 g
Overview
The BA6208F is a monolithic bidirectional motor driver IC that controls reversible motors in cassette recorders and other electronic equipment via TTL-level logic signals. The device integrates a logic control section and a power output section: the logic section handles forward rotation, reverse rotation, and braking control, while the power output section delivers a typical drive current of 100mA based on the logic control inputs. The circuit is housed in an SOP-8 package.
Applications
- Bidirectional motor for cassette tape recorders
- Bidirectional motor for other electronic equipment
Key features
- Built-in motor drive power transistors (typical 100mA)
- Braking capability to force motor stop (when both inputs A and B are HIGH)
- Built-in protection diodes for surge current absorption
- Ultra-low standby current when both inputs A and B are LOW
- Wide operating supply voltage range (4.5V~18.0V)
- Direct TTL logic signal control
