UTCDatasheet (PDF)

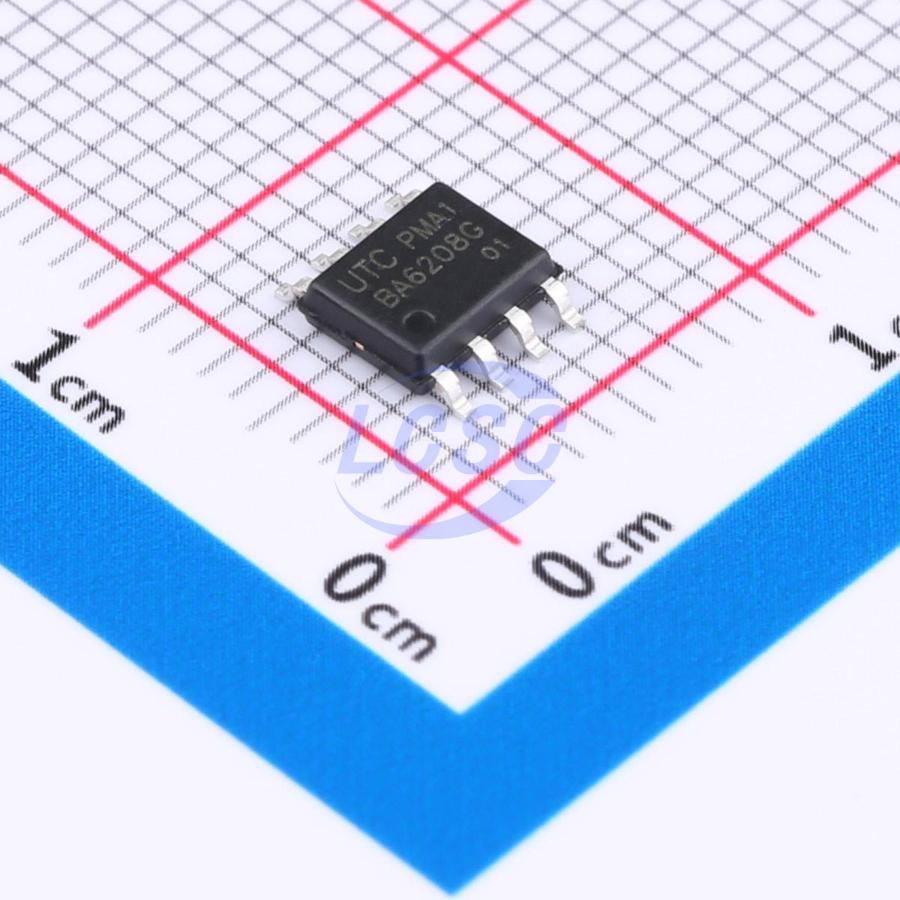

BA6208G-S08-R
4.5V~15V SOP-8 Motor Drivers, Controllers
SOP-8RoHSActive
Reversible Motor Driver
- Manufacturer
- UTC
- Manufacturer part #
- BA6208G-S08-R
- Store part #
- C46187
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,222 in stock
#C46187
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹14.83 | ₹14.83 |
| 10+ | ₹12.00 | ₹120.00 |
| 30+ | ₹10.58 | ₹317.40 |
| 100+ | ₹9.53 | ₹953.00 |
| 500+ | ₹8.68 | ₹4,340.00 |
| 1,000+ | ₹8.26 | ₹8,260.00 |
1 × ₹14.83
₹14.83
excl. GST
₹17.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BA6208G-S08-R
₹14.83 for 1 + GST
Specifications
- Features
- Active braking function
- Technology
- No
- Voltage - Supply
- 4.5V~15V
- Operating Temperature
- -20℃~+60℃
- Supply Current (Iq)
- 400uA
- Output Current
- 200mA
- Peak Current
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
The UTC BA6208 is designed for driving reversible motor use, it contain a logic section to controls forward and reverse rotations as well as forced stop, and an output power section is able to supply an output current of up to 100 mA (typical) according to the logic control. The IC allow control of reversible motors in cassette players and other electrical equipment by using TTL-level logic signals.
Key features
- Recommended operating supply voltage range from 4.5V to 15.0V.
- Built-in motor driving power transistors(typ.100mA).
- Brake is applied when stopping the motor (when Ain and Bin are both HIGH level).
- Very low standby circuit current(when Ain and Bin are both LOW level).
- Built-in diode to absorb surge currents.
- Direct control with the TTL logic.
