ROHMDatasheet (PDF)

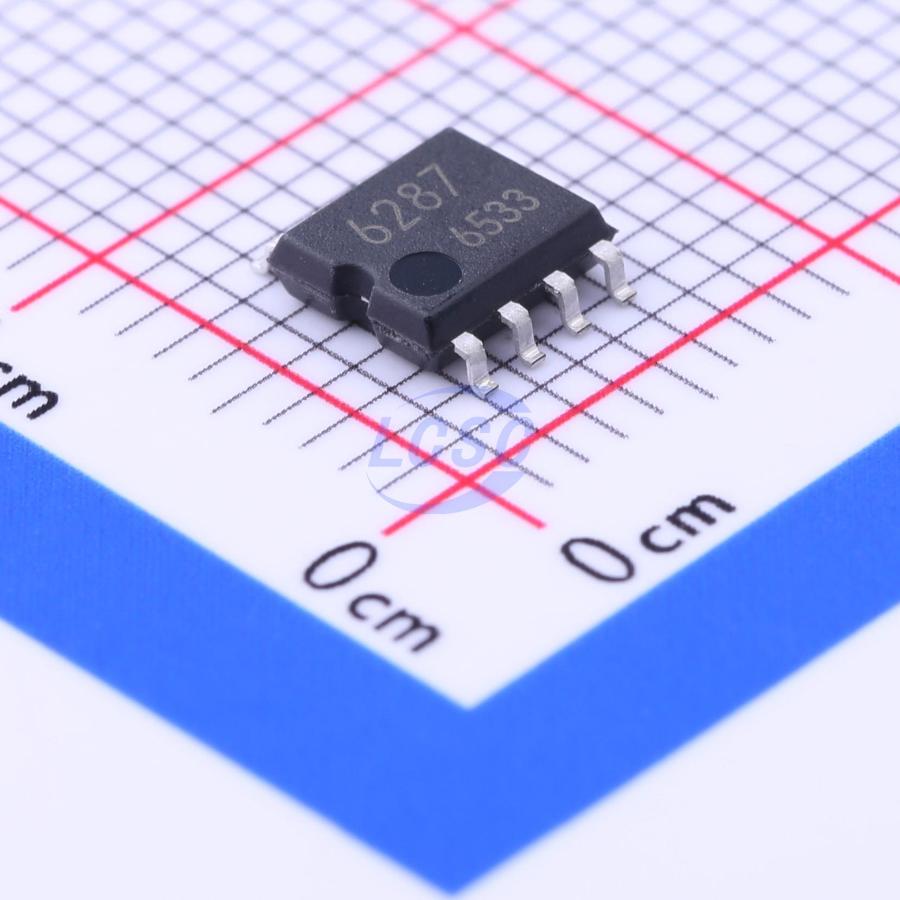

BA6287F-E2
4.5V~15V SOIC-8-175mil Motor Drivers, Controllers RoHS
SOIC-8-175milROHS3 CompliantActive
Reversible motor driver
- Manufacturer
- ROHM
- Manufacturer part #
- BA6287F-E2
- Store part #
- C8941
- Package / case
- SOIC-8-175mil
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,185 in stock
#C8941
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹165.38 | ₹165.38 |
| 10+ | ₹134.73 | ₹1,347.30 |
| 30+ | ₹119.31 | ₹3,579.30 |
| 100+ | ₹104.09 | ₹10,409.00 |
| 500+ | ₹83.67 | ₹41,835.00 |
| 1,000+ | ₹79.10 | ₹79,100.00 |
1 × ₹165.38
₹165.38
excl. GST
₹195.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BA6287F-E2
₹165.38 for 1 + GST
Specifications
- Features
- Active braking function
- Technology
- No
- Voltage - Supply
- 4.5V~15V
- Operating Temperature
- -20℃~+75℃
- Supply Current (Iq)
- 15uA
- Output Current
- 1A
- Peak Current
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.217 g
Overview
The BA6287F is a reversible-motor driver with a maximum output current of 1.0A. Two logic inputs allow four output modes: forward, reverse, stop (idling), and brake. A built-in power saving circuit suppresses current consumption when the motor is in stop mode.
Applications
- VCRs
- audio equipment in general
Key features
- Built-in power saving circuit suppresses the stop mode current dissipation.
- Output voltage can be set arbitrarily with the VREF pin.
- Interfaces with TTL devices.
- Built-in thermal shutdown circuit.
