ROHMDatasheet (PDF)

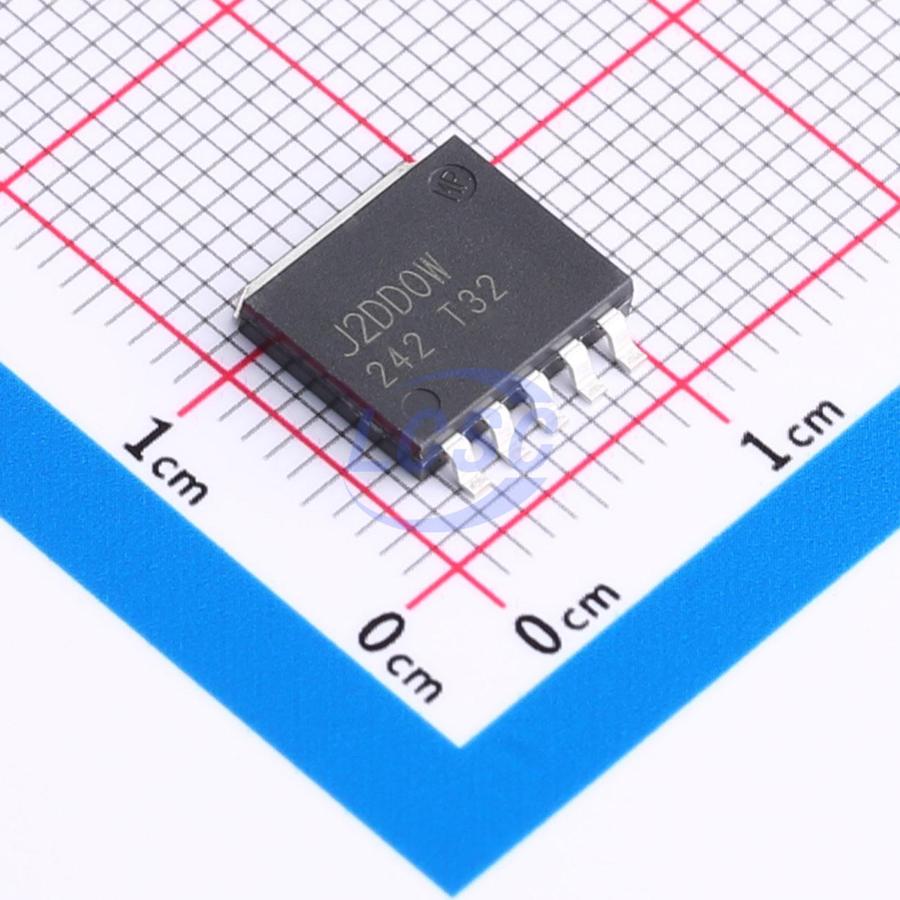

BAJ2DD0WHFP-TR
12V Positive Fixed HRP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
HRP-5ROHS3 CompliantActive
2A/1A Fixed Output LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BAJ2DD0WHFP-TR
- Store part #
- C600660
- Package / case
- HRP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C600660
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹327.71 | ₹327.71 |
| 10+ | ₹319.98 | ₹3,199.80 |
| 30+ | ₹314.82 | ₹9,444.60 |
| 100+ | ₹309.67 | ₹30,967.00 |
1 × ₹327.71
₹327.71
excl. GST
₹386.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BAJ2DD0WHFP-TR
₹327.71 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 900uA
- Output Configuration
- Positive
- Output Current
- 2A
- Operating Voltage
- 25V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Input overvoltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.56 g
Overview
Standard Fixed Output LDO Regulators are low-saturation regulators, available for outputs up to 2A / 1A. It has a wide output voltage range and package lineup with and without shutdown switches. This IC has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits, a thermal shut-down circuit that protects the IC from damage due to overloading and an over-voltage protection circuit that protects the IC from surges generated in the power supply line of the IC.
Applications
- Used in DSP power supplies for DVD and CD players, FPDs, televisions, personal computers or any other consumer device
Key features
- ±1% highly accurate output voltage (BAxxDD0xx)
- Low saturation with PNP output
- Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
- Built-in thermal shutdown circuit for protecting the IC from damage due to overloading
- Built-in over- voltage protection circuit that prevents the destruction of the IC due to power supply surges
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BDJ2FD0WHFP-TR#C3745039ROHM · HRP-5 | ROHM | HRP-5 | 58 | ₹294.20 · 58 in stock | View |
